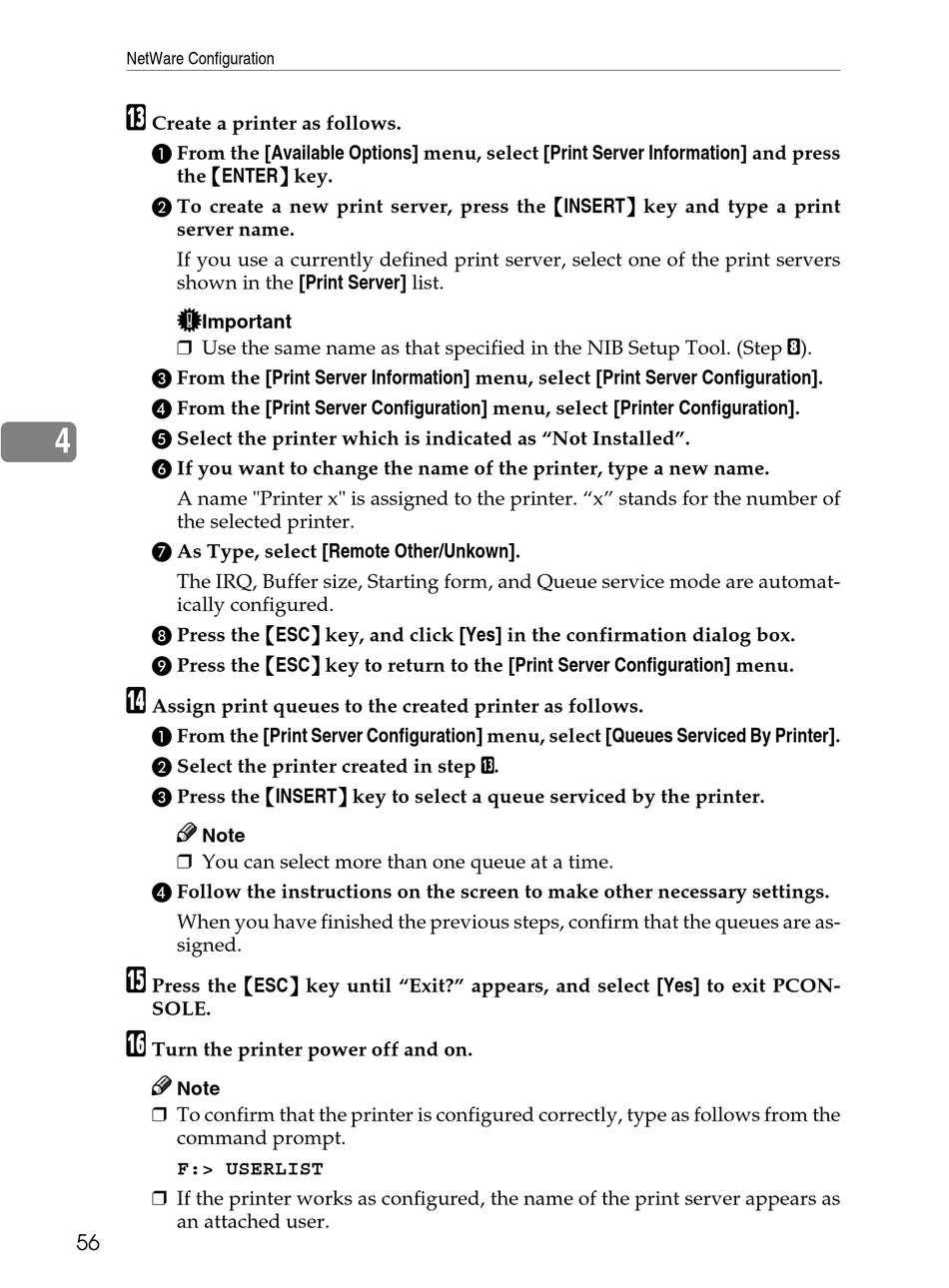

Ricoh SCRIPT2 Setup Manual page 282

NetWare Configuration
M
Create a printer as follows.
A From the [Available Options] menu, select [Print Server Information] and press
the { { { { ENTER} } } } key.
B To create a new print server, press the { { { { INSERT} } } } key and type a print
server name.
If you use a currently defined print server, select one of the print servers
shown in the [Print Server] list.
Important
❒ Use the same name as that specified in the NIB Setup Tool. (Step H).
C From the [Print Server Information] menu, select [Print Server Configuration].
D From the [Print Server Configuration] menu, select [Printer Configuration].
E Select the printer which is indicated as "Not Installed".
4
F If you want to change the name of the printer, type a new name.
A name "Printer x" is assigned to the printer. "x" stands for the number of
the selected printer.
G As Type, select [Remote Other/Unkown].
The IRQ, Buffer size, Starting form, and Queue service mode are automat-
ically configured.
H Press the { { { { ESC} } } } key, and click [Yes] in the confirmation dialog box.
I Press the { { { { ESC} } } } key to return to the [Print Server Configuration] menu.
N
Assign print queues to the created printer as follows.
A From the [Print Server Configuration] menu, select [Queues Serviced By Printer].
B Select the printer created in step M M M M .
C Press the { { { { INSERT} } } } key to select a queue serviced by the printer.
Note
❒ You can select more than one queue at a time.
D Follow the instructions on the screen to make other necessary settings.
When you have finished the previous steps, confirm that the queues are as-
signed.
O
Press the { { { { ESC} } } } key until "Exit?" appears, and select [Yes] to exit PCON-
SOLE.
P
Turn the printer power off and on.
Note
❒ To confirm that the printer is configured correctly, type as follows from the
command prompt.
F:> USERLIST
❒ If the printer works as configured, the name of the print server appears as
an attached user.
56
