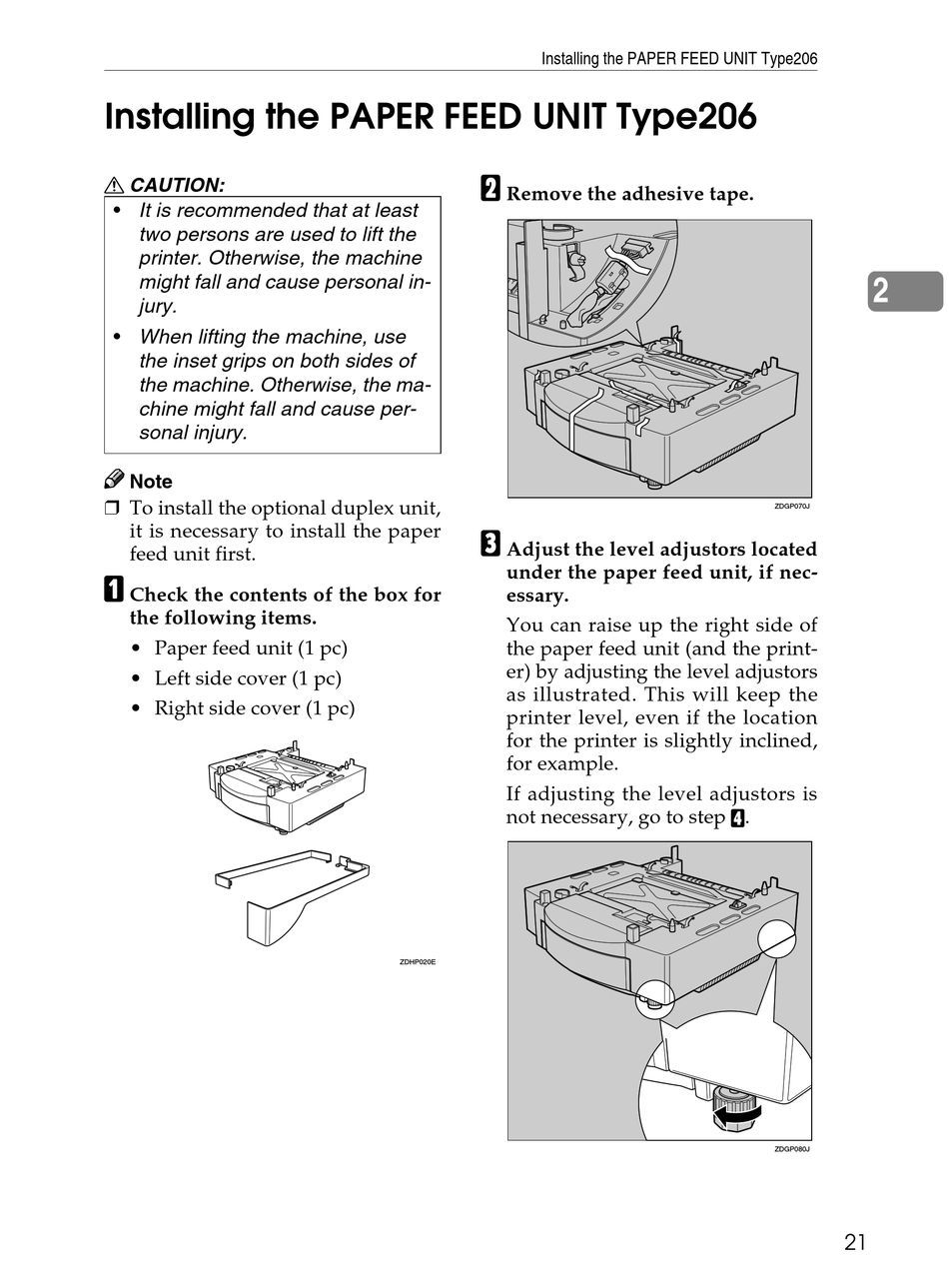

Installing the PAPER FEED UNIT Type206

R CAUTION:
• It is recommended that at least
two persons are used to lift the
printer. Otherwise, the machine
might fall and cause personal in-
jury.
• When lifting the machine, use
the inset grips on both sides of
the machine. Otherwise, the ma-
chine might fall and cause per-
sonal injury.
Note
❒ To install the optional duplex unit,
it is necessary to install the paper
feed unit first.
A
Check the contents of the box for
the following items.
• Paper feed unit (1 pc)
• Left side cover (1 pc)
• Right side cover (1 pc)
Installing the PAPER FEED UNIT Type206
B
Remove the adhesive tape.
C
Adjust the level adjustors located
under the paper feed unit, if nec-
essary.
You can raise up the right side of
the paper feed unit (and the print-
er) by adjusting the level adjustors
as illustrated. This will keep the
printer level, even if the location
for the printer is slightly inclined,
for example.
If adjusting the level adjustors is
not necessary, go to step
ZDHP020E
2
ZDGP070J
D
.
ZDGP080J
