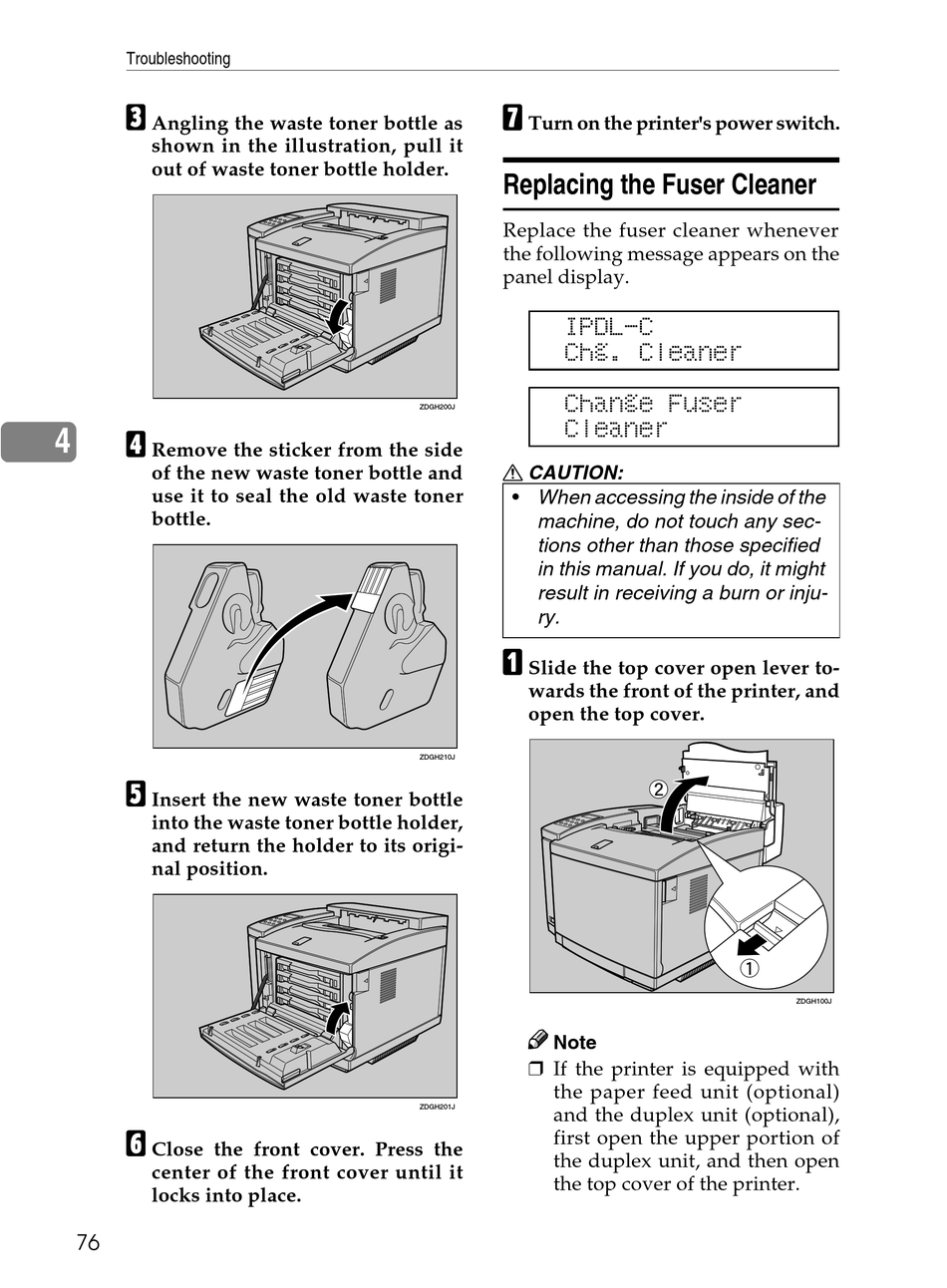

Replacing The Fuser Cleaner - Ricoh SCRIPT2 Setup Manual

Troubleshooting
C
Angling the waste toner bottle as
shown in the illustration, pull it
out of waste toner bottle holder.
D
4
Remove the sticker from the side
of the new waste toner bottle and
use it to seal the old waste toner
bottle.
E
Insert the new waste toner bottle
into the waste toner bottle holder,
and return the holder to its origi-
nal position.
F
Close the front cover. Press the
center of the front cover until it
locks into place.
76
G
Turn on the printer's power switch.

Replacing the Fuser Cleaner

Replace the fuser cleaner whenever
the following message appears on the
panel display.
IPDL-C
Chg. Cleaner
Change Fuser
ZDGH200J
Cleaner
R CAUTION:
• When accessing the inside of the
machine, do not touch any sec-
tions other than those specified
in this manual. If you do, it might
result in receiving a burn or inju-
ry.
A
Slide the top cover open lever to-
wards the front of the printer, and
open the top cover.
ZDGH210J
Note
❒ If the printer is equipped with
the paper feed unit (optional)
ZDGH201J
and the duplex unit (optional),
first open the upper portion of
the duplex unit, and then open
the top cover of the printer.
ZDGH100J
