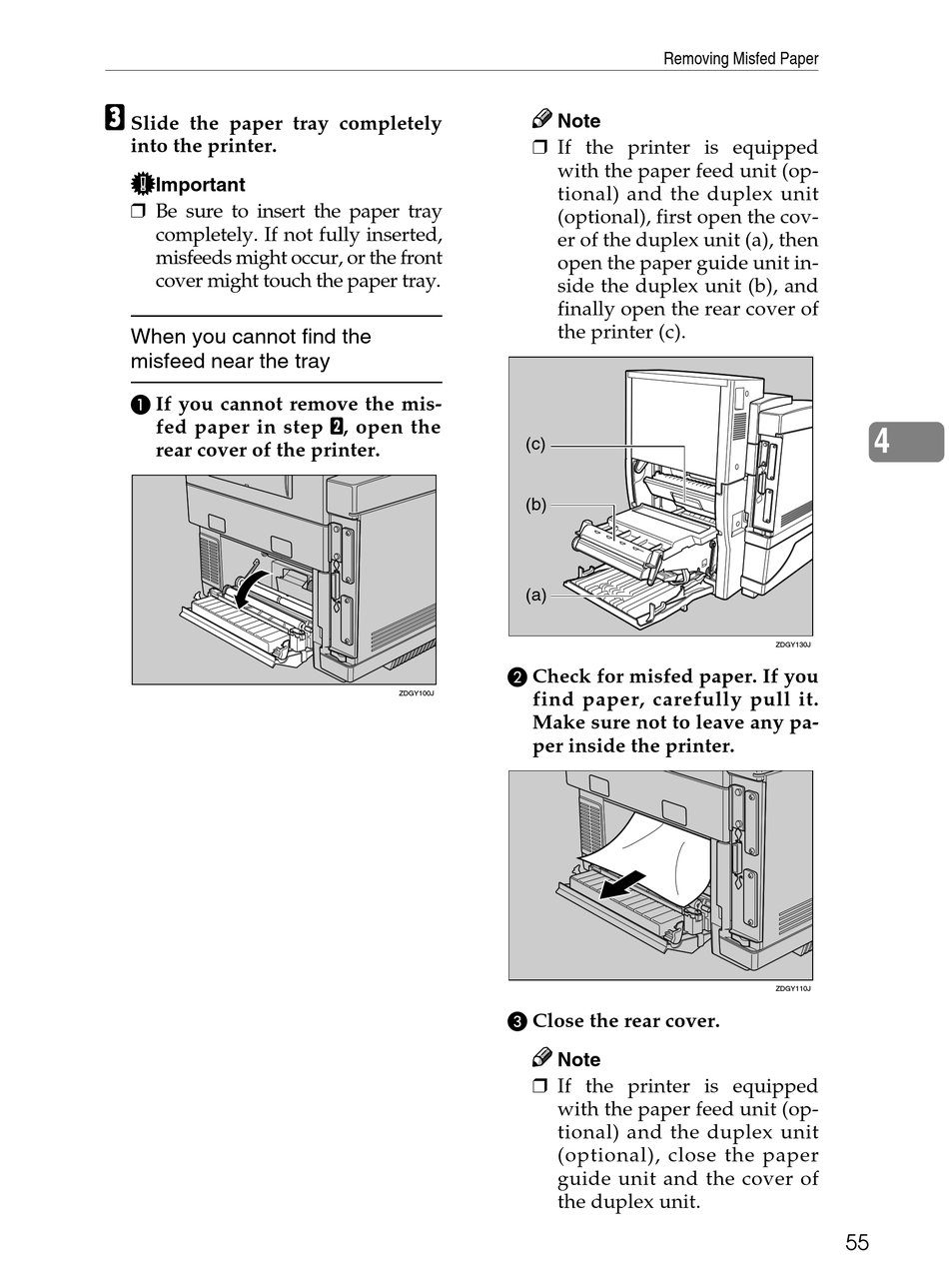

Ricoh SCRIPT2 Setup Manual page 139

C
Slide the paper tray completely
into the printer.
Important
❒ Be sure to insert the paper tray
completely. If not fully inserted,
misfeeds might occur, or the front
cover might touch the paper tray.
When you cannot find the
misfeed near the tray
A If you cannot remove the mis-
fed paper in step B B B B , open the
rear cover of the printer.
Note
❒ If the printer is equipped
with the paper feed unit (op-
tional) and the duplex unit
(optional), first open the cov-
er of the duplex unit (a), then
open the paper guide unit in-
side the duplex unit (b), and
finally open the rear cover of
the printer (c).
(c)
(b)
(a)
B Check for misfed paper. If you
ZDGY100J find paper, carefully pull it.
Make sure not to leave any pa-
per inside the printer.
C Close the rear cover.
Note
❒ If the printer is equipped
with the paper feed unit (op-
tional) and the duplex unit
(optional), close the paper
guide unit and the cover of
the duplex unit.
Removing Misfed Paper
ZDGY130J
ZDGY110J
