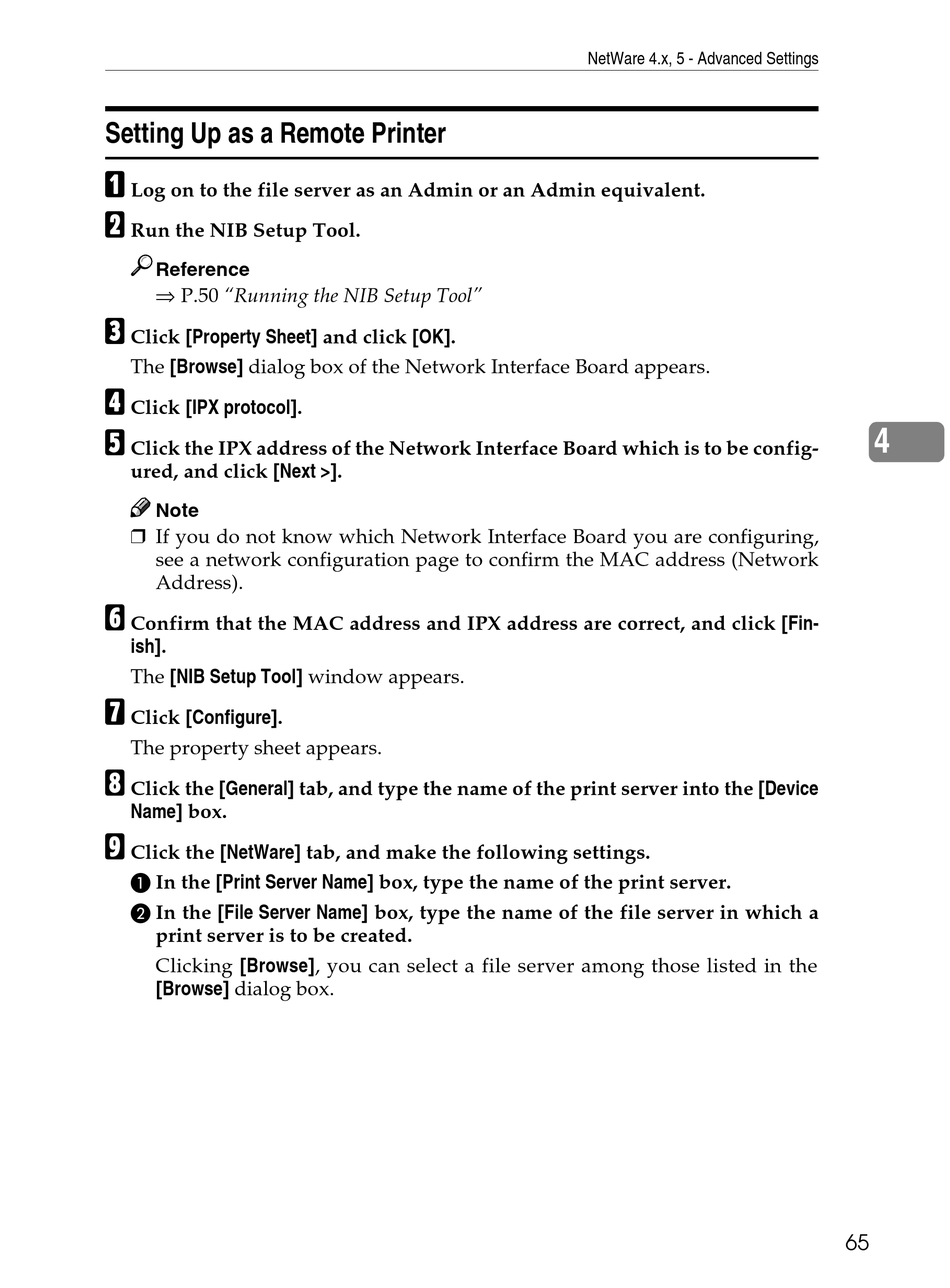

Setting Up As A Remote Printer - Ricoh SCRIPT2 Setup Manual

Setting Up as a Remote Printer

A
Log on to the file server as an Admin or an Admin equivalent.
B
Run the NIB Setup Tool.
Reference
⇒ P.50 "Running the NIB Setup Tool"
C
Click [Property Sheet] and click [OK].
The [Browse] dialog box of the Network Interface Board appears.
D
Click [IPX protocol].
E
Click the IPX address of the Network Interface Board which is to be config-
ured, and click [Next >].
Note
❒ If you do not know which Network Interface Board you are configuring,
see a network configuration page to confirm the MAC address (Network
Address).
F
Confirm that the MAC address and IPX address are correct, and click [Fin-
ish].
The [NIB Setup Tool] window appears.
G
Click [Configure].
The property sheet appears.
H
Click the [General] tab, and type the name of the print server into the [Device
Name] box.
I
Click the [NetWare] tab, and make the following settings.
A In the [Print Server Name] box, type the name of the print server.
B In the [File Server Name] box, type the name of the file server in which a
print server is to be created.
Clicking [Browse], you can select a file server among those listed in the
[Browse] dialog box.
NetWare 4.x, 5 - Advanced Settings
4
65
