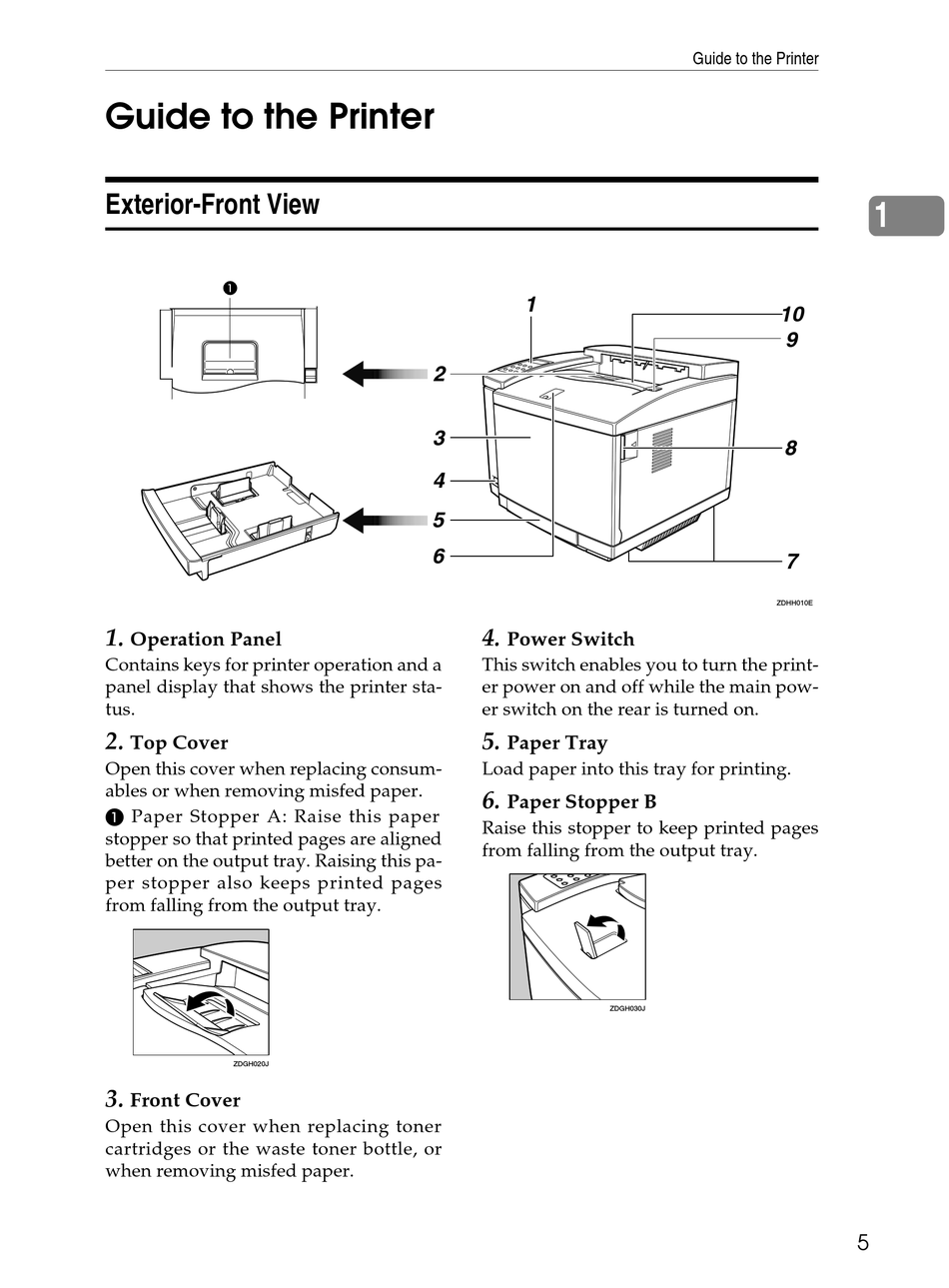

Guide to the Printer

Exterior-Front View

1.
Operation Panel
Contains keys for printer operation and a
panel display that shows the printer sta-
tus.
2.
Top Cover
Open this cover when replacing consum-
ables or when removing misfed paper.
A Paper Stopper A: Raise this paper
stopper so that printed pages are aligned
better on the output tray. Raising this pa-
per stopper also keeps printed pages
from falling from the output tray.
ZDGH020J
3.
Front Cover
Open this cover when replacing toner
cartridges or the waste toner bottle, or
when removing misfed paper.
1
2
3
4
5
6
4.
Power Switch
This switch enables you to turn the print-
er power on and off while the main pow-
er switch on the rear is turned on.
5.
Paper Tray
Load paper into this tray for printing.
6.
Paper Stopper B
Raise this stopper to keep printed pages
from falling from the output tray.
Guide to the Printer
10
ZDHH010E
ZDGH030J
1
9
8
7
5
