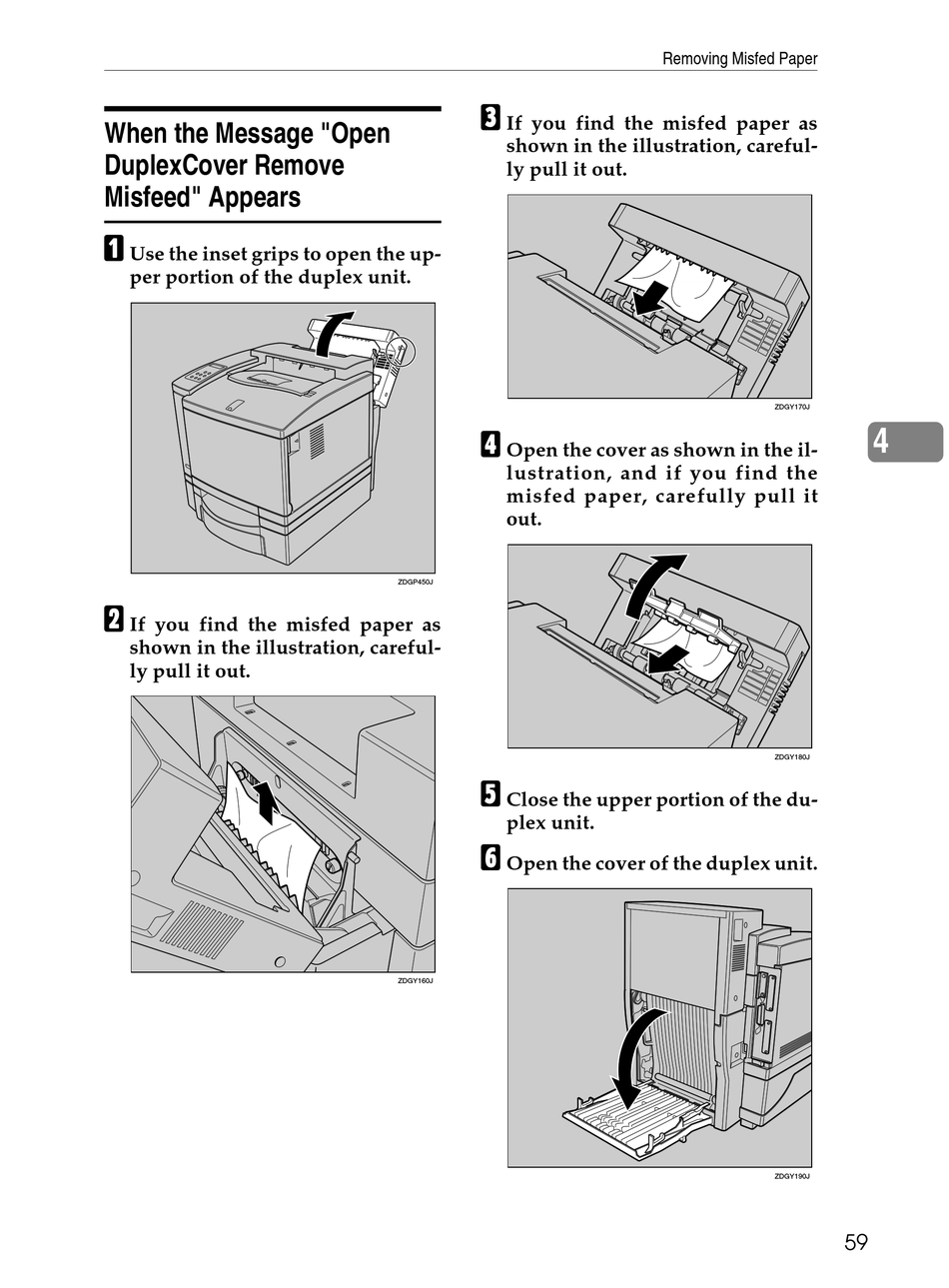

When the Message "Open
DuplexCover Remove
Misfeed" Appears
A
Use the inset grips to open the up-
per portion of the duplex unit.
B
If you find the misfed paper as
shown in the illustration, careful-
ly pull it out.
C
If you find the misfed paper as
shown in the illustration, careful-
ly pull it out.
D
Open the cover as shown in the il-
lustration, and if you find the
misfed paper, carefully pull it
out.
ZDGP450J
E
Close the upper portion of the du-
plex unit.
F
Open the cover of the duplex unit.
ZDGY160J
Removing Misfed Paper
ZDGY170J
ZDGY180J
ZDGY190J
