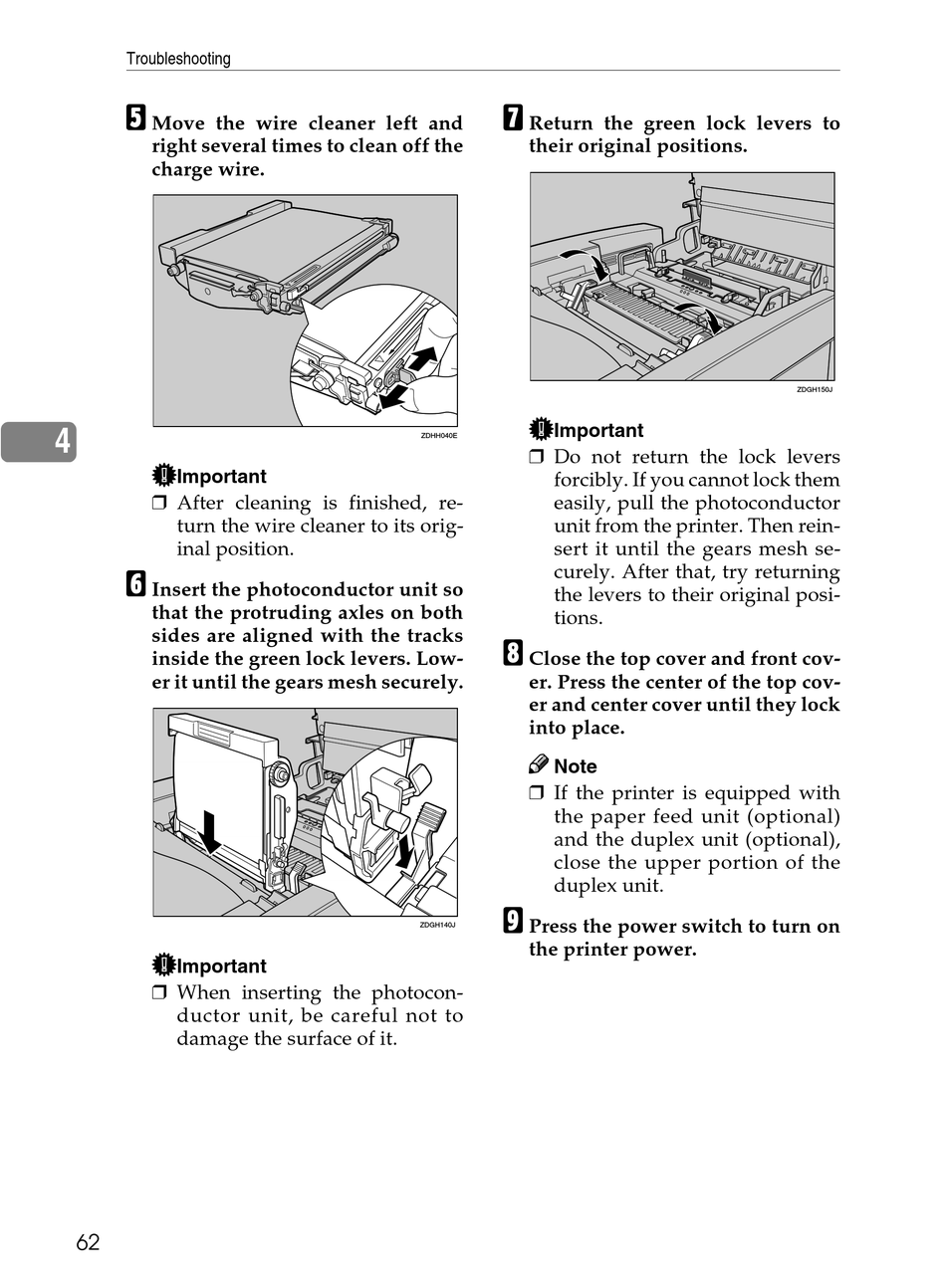

Troubleshooting
E
Move the wire cleaner left and
right several times to clean off the
charge wire.
4
Important
❒ After cleaning is finished, re-
turn the wire cleaner to its orig-
inal position.
F
Insert the photoconductor unit so
that the protruding axles on both
sides are aligned with the tracks
inside the green lock levers. Low-
er it until the gears mesh securely.
Important
❒ When inserting the photocon-
ductor unit, be careful not to
damage the surface of it.
62
G
Return the green lock levers to
their original positions.
Important
ZDHH040E
❒ Do not return the lock levers
forcibly. If you cannot lock them
easily, pull the photoconductor
unit from the printer. Then rein-
sert it until the gears mesh se-
curely. After that, try returning
the levers to their original posi-
tions.
H
Close the top cover and front cov-
er. Press the center of the top cov-
er and center cover until they lock
into place.
Note
❒ If the printer is equipped with
the paper feed unit (optional)
and the duplex unit (optional),
close the upper portion of the
duplex unit.
I
Press the power switch to turn on
ZDGH140J
the printer power.
ZDGH150J
