Using the Operation Panel
E
Press { { { { On Line} } } } .
The "Ready" message appears on the panel display.

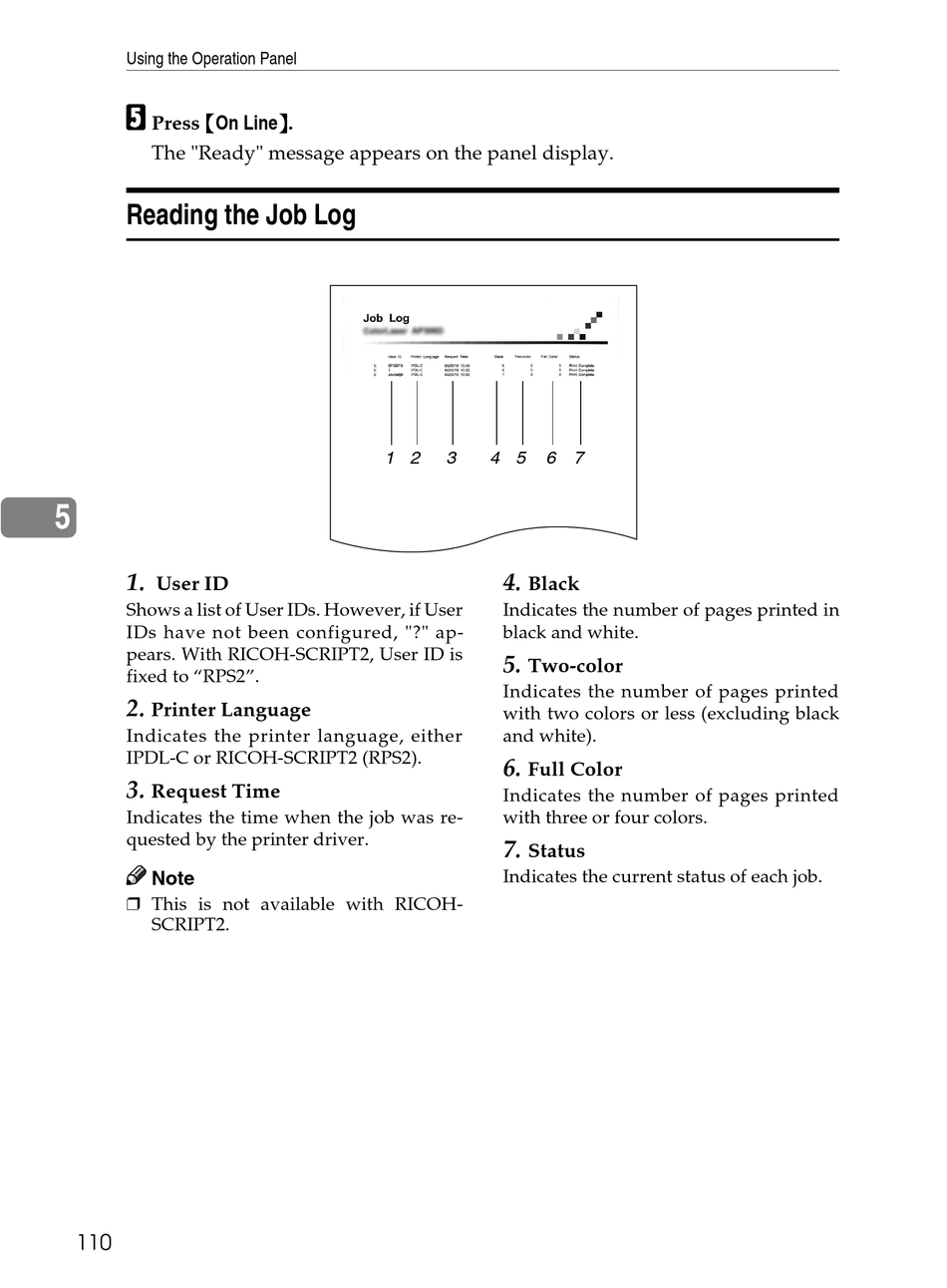

Reading the Job Log

5
1.
User ID
Shows a list of User IDs. However, if User
IDs have not been configured, "?" ap-
pears. With RICOH-SCRIPT2, User ID is
fixed to "RPS2".
2.
Printer Language
Indicates the printer language, either
IPDL-C or RICOH-SCRIPT2 (RPS2).
3.
Request Time
Indicates the time when the job was re-
quested by the printer driver.
Note
❒ This is not available with RICOH-
SCRIPT2.
110
1 2 3 4 5 6 7
4.
Black
Indicates the number of pages printed in
black and white.
5.
Two-color
Indicates the number of pages printed
with two colors or less (excluding black
and white).
6.
Full Color
Indicates the number of pages printed
with three or four colors.
7.
Status
Indicates the current status of each job.
