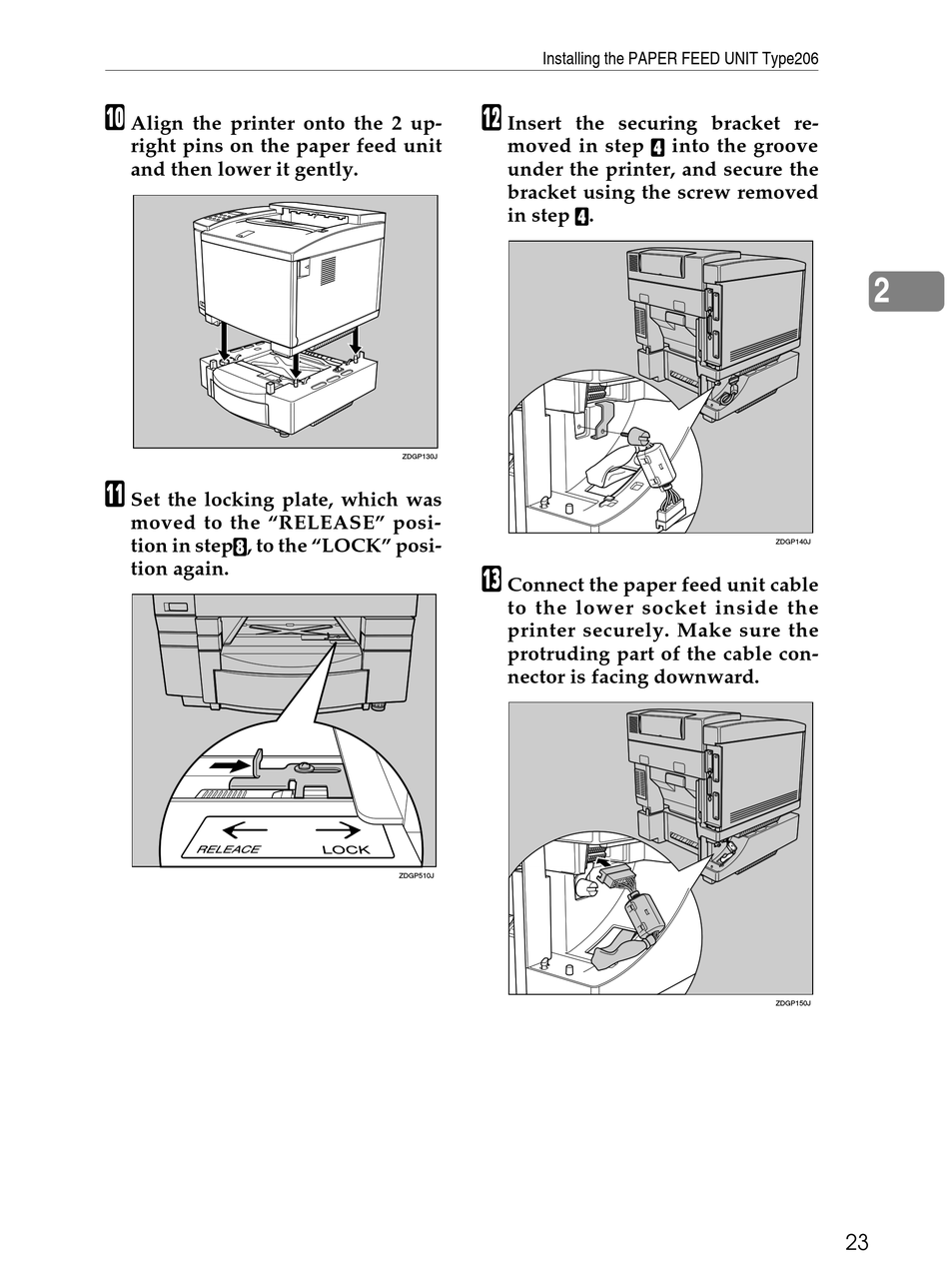

Ricoh SCRIPT2 Setup Manual page 35

J
Align the printer onto the 2 up-
right pins on the paper feed unit
and then lower it gently.
K
Set the locking plate, which was
moved to the "RELEASE" posi-
H
tion in step , to the "LOCK" posi-
tion again.
Installing the PAPER FEED UNIT Type206
L
Insert the securing bracket re-
moved in step
under the printer, and secure the
bracket using the screw removed
in step
ZDGP130J
M
Connect the paper feed unit cable
to the lower socket inside the
printer securely. Make sure the
protruding part of the cable con-
nector is facing downward.
ZDGP510J
D
into the groove
D
.
2
ZDGP140J
ZDGP150J
