7.3 Test run procedure using the remote control switch (PC-ARF)

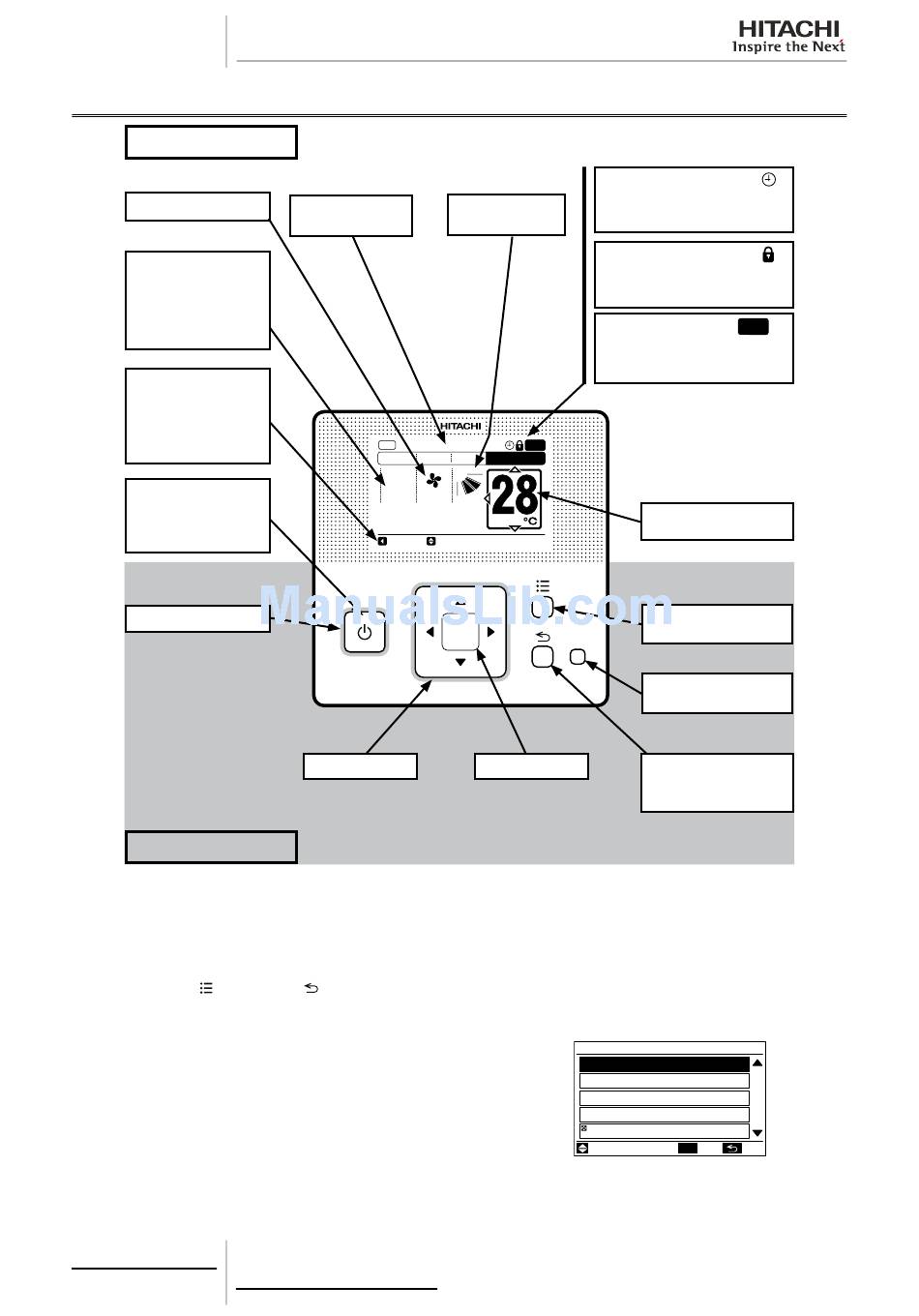

Display Part
Fan Speed Indicator
Operation Mode
Indicator
The indications of "HEAT"
and "AUTO" are indicated
only for the heat pump type
models.
Operation Guide
Indicator
"Central Control" is
indicated while the remote
control operation is
prohibited.
Run Indicator
It lights while the unit is
operated, and it flashes in
an abnormal conditions.
RUN/STOP Switch
Operation Part
1 Turn ON the power supply for all the indoor units.
2 For the models with the auto-address function, wait for 3 minutes approximately. The addressing is automatically
performed. (There is a case that 5 minutes is required according to the setting condition.) After that, select using
language from "Menu". Refer to the operation manual for details.
3 Press and hold " " (menu) and " " (return) simultaneously for at least 3 seconds.
a. The test run menu will be displayed.
172
SMGB0079 rev.0 - 01/2013
Swing Louver
Room Name
Indicator
Indicator
Meeting Room
A/C
MODE SPEED LOUV.
COOL
HIGH
LOUV. ADJ
OK
Arrow Key
Schedule Timer Indicator
It is indicated when the schedule timer
function is set.
Operation Lock Indicator
It is indicated when the operation lock
function is set.
Filter Sign Indicator
It is indicated at the set period for filter
cleaning.
FLTR
TEMP
Setting Temperature
To display Menu.
?
To display Help Menu.
Enter Key
To return to the previous
Test run screen
Test Run Menu
Test Run
Function Selection
Thermistor Selection
Input/Output
Function 5
SEL. ADJ
FLTR
Indicator
Menu Switch
Help Switch
Return Switch
screen.
01
/
03
OK ENT. RTN.
