3.1 Basic Connection

The following instructions describe the basic connection to the GV-Compact DVR V2.
1. Connect power.
•
Standard Model: Using the supplied power adaptor, connect to the power.
•
Anti-Vibration Model: Using the supplied cigarette lighter power adaptor, connect to
the power. See 3.2 Connecting Anti-Vibration Model.
•
Anti-Vibration Model of ACC Version: Using the supplied power cable, connect the
white and black wires to the vehicle's power and ground cables respectively. Then
connect the vehicle's ACC wire to Pin 16 of the Terminal Block on the unit. See 3.3.2
Connecting to the Vehicle.
2. Connect to cameras by using the blue connectors of the supplied D-Type Video Cable.
3. Connect to microphones and a speaker by using the supplied D-Type Audio/TV/Spot
Monitor Cable. Connect microphones to the four white connectors of the cable, and a
speaker to the red connector.
4. Connect video output. There are two options:
•
Using the black connector (QUAD) of the supplied D-Type Audio/TV/Spot Monitor
Cable, connect to the TV monitor.
•
Using the VGA cable supplied by the monitor manufacturer, connect to the VGA
monitor (as illustrated in the figure).
5. If networking the system, use the standard RJ-45 cable to connect to the unit.
Note:
1. To set the video resolution on the VGA monitor, see VGA SETTINGS, 4.8.4 Display
Settings.
2. The GV-Compact DVR V2 cannot work with the microphone that acquires power from the
unit. Use the microphone that has external power supply.

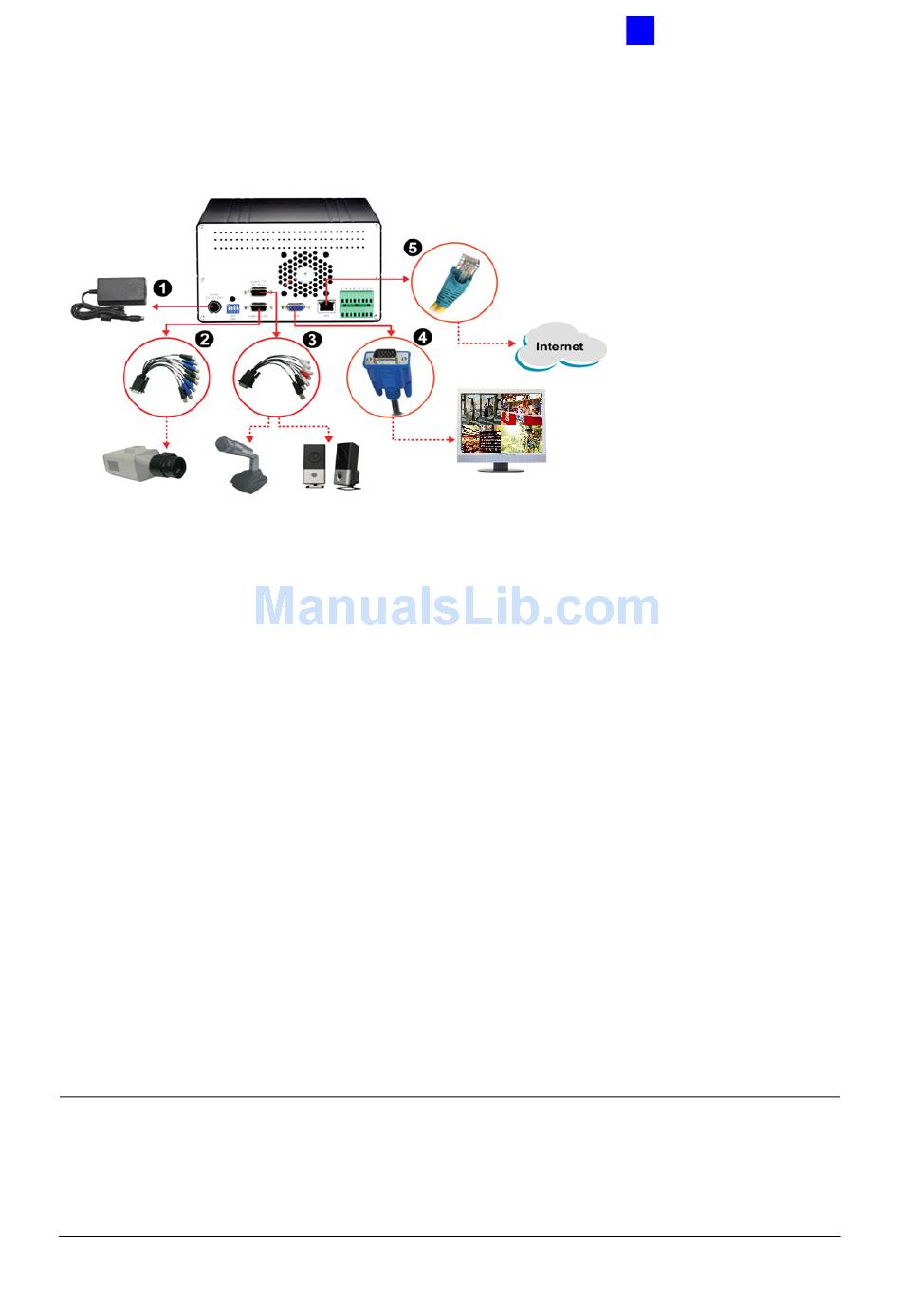

Figure 3-1
