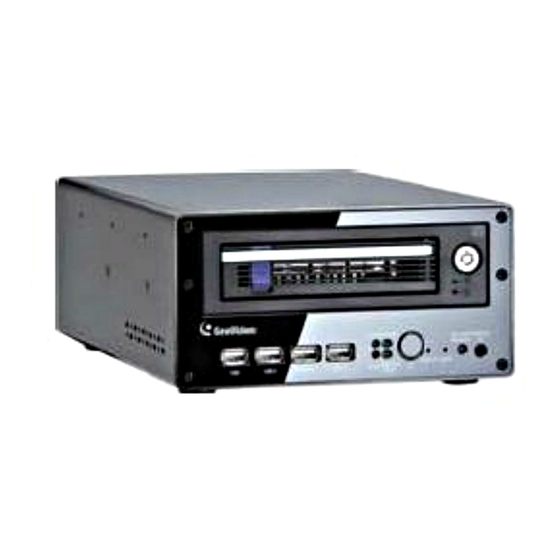

Page 1 GV-Compact DVR V3 User's Manual User's Manual Before attempting to connect or operate this product, CDVR3-4CHV101-8CHV10-A please read these instructions carefully and save this manual for future use.
Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
Page 3 Preface Welcome to the GV-Compact DVR V3 User’s Manual. The GV-Compact DVR V3 has a series of models designed to meet different needs. This Manual is designed for the following models and firmware version: Note: Be sure to restore the four-channel GV-Compact DVR V3 to default settings after upgrading the firmware to V1.01.
Page 4: Table Of Contents
Contents Chapter 1 Introduction ............1 1.1 Features........................2 1.2 Models ........................3 1.2.1 The Four-Channel Unit ................3 1.2.2 The Eight-Channel Unit................4 1.3 Packing List......................5 1.3.1 The Four-Channel Unit................5 1.3.2 The Eight-Channel Unit................7 1.4 Options ........................9 1.5 System Requirement ...................10 Chapter 2 Physical Description..........11 2.1 Front Panel ......................11 2.1.1 The Four-Channel Unit ................11...
Page 5 3.7 Formatting a Hard Drive ..................46 3.8 Main Screen Overview..................47 3.9 Basic Operation ....................48 3.9.1 Date/Time Adjustment................48 3.9.2 Recording Operation .................48 3.9.3 Search/Playback Operation ..............49 3.9.4 PTZ Operation...................49 3.9.5 Channel Number and Camera Name............49 3.9.6 Video Backup ....................49 Chapter 4 OSD Menu Configurations ........50 4.1 Channel Settings ....................52 4.1.1 Channel Name ..................52 4.1.2 Video/Audio Settings.................53...
Page 6 4.6.6 Time Search....................80 4.6.7 Advanced Search..................81 4.7 Network.........................82 4.7.1 Network Status..................82 4.7.2 Connection Settings ..................83 4.7.3 Wireless Settings ..................84 4.7.4 Advanced TCP/IP..................85 4.7.5 UMTS Settings ..................86 4.7.6 DDNS Settings ..................87 4.7.7 Multicast Settings..................88 4.7.8 Web User Account Info ................89 4.8 Advanced......................90 4.8.1 Date and Time...................90 4.8.2 Firmware Settings ..................91 4.8.3 Storage Settings..................92...
Page 7 Chapter 6 Remote Configurations ........117 6.1 Video & Motion....................119 6.1.1 Video Settings..................119 6.1.2 Motion Detection ..................123 6.1.3 Text Overlay....................124 6.1.4 Visual Automation ...................125 6.1.5 VGA Output Settings................126 6.1.6 Video Channel Source Settings ..............126 6.2 Digital I/O & PTZ....................127 6.2.1 I/O Control....................127 6.2.2 PTZ Settings ...................129 6.2.3 GPS ......................130...
Page 8 8.5.3 The Watermark Proof Window ..............196 Chapter 9 Mobile Phone Surveillance......197 9.1 Android Smartphone ..................198 9.1.1 Connecting to GV-Compact DVR V3 ............198 9.2 iPhone and iPod Touch ..................201 9.2.1 Connecting to GV-Compact DVR V3 ............202 Chapter 10 DVR Configurations ........204 10.1 Setting up GV-Compact DVR V3..............205...
Page 9 Chapter 12 The I/O Terminal Block ........219 12.1 Pin Assignment....................219 12.1.1 The Four-Channel Unit ................219 12.1.2 The Eight-Channel Unit................220 12.2 Output Devices ....................221 12.2.1 The Four-Channel Unit................221 12.2.2 The Eight-Channel Unit................222 12.3 Camera Power Supply..................224 12.3.1 The Four-Channel Unit................224 12.3.2 The Eight-Channel Unit................225 Specifications: The Four-Channel Unit ......226 Specifications: The Eight-Channel Unit ......230 Appendix……...
Page 10: Chapter 1 Introduction
The special design of the GV-Compact DVR V3 enables you to link up with TV, VGA and spot monitors simultaneously for direct display. The GV-Compact DVR V3 offers many features...
Page 11: Features
1.1 Features Recording • Dual streams from H.264 and MJPEG (for four-channel models only) • Up to 120 fps at D1 resolution for 4-channel units; up to 240 fps at D1 resolution for 8-channel units • Independent channel resolution, quality and frame rate settings Local Display •...
Page 12: Models
Introduction 1.2 Models The GV-Compact DVR V3 comes in the four-channel and eight-channel units. Each unit is available in the Standard models and the Anti-Vibration ACC models as listed below. IMPORTANT: 1. Standard and Anti-Vibration ACC models have different internal designs. It is forbidden to connect the Standard model to vehicle power supply.
Page 13: The Eight-Channel Unit
1.2.2 The Eight-Channel Unit Model Name Image Description Equipped with 4 USB GV-LX8CD1 ports and 1 hard drive bay. Equipped with 4 USB Standard ports and 2 hard drive GV-LX8CD2 models bays. Equipped with 4 USB ports, 1 hard drive bay GV-LX8CD2W and 1 DVD-RW drive.
Page 14: Packing List
Round Screws x 6 (1 Bay), x 12 (2 Bays) • T-Cap Screw x 4 (1 Bay), x 8 (2 Bays) • Remote Control x 1 • GV-Compact DVR Quick Start Guide x 1 • GV-Compact DVR Software DVD x 1 • GV-NVR Quick Start Guide x 1 •...
Page 15 • T-Cap Screw x 4 (1 Bay), x 8 (2 Bays) • Remote Control x 1 • GV-Compact DVR Quick Start Guide x 1 • GV- Compact DVR Software DVD x 1 • GV-NVR Quick Start Guide x 1 •...
Page 16: The Eight-Channel Unit
Round Screws x 6 (1 Bay), x 12 (2 Bays) • T-Cap Screw x 4 (1 Bay), x 8 (2 Bays) • Remote Control x 1 • GV-Compact DVR Quick Start Guide x 1 • GV-Compact DVR Software DVD x 1 • GV-NVR Quick Start Guide x 1 •...
Page 17 Lock Key x 2 (1 Bay), x 4 (2 Bays) Remote Control x 1 • • Round Screws x 6 (1 Bay), x 12 (2 GV-Compact DVR Quick Start Guide x 1 Bays) • GV- Compact DVR Software DVD x 1 •...
Page 18: Options
Introduction 1.4 Options Optional devices can expand your GV-Compact DVR V3’s capabilities and versatility. Contact your dealer for more information. The external IR receiver, with a 5-meter cable (16.4 feet), allows long-distance remote control of the GV-Compact DVR External IR Receiver GV-GPS 232 Receiver, with RS-232 interface, is a Global Position System receiver.
Page 19: System Requirement
1.5 System Requirement To access the Web interface of the GV-Compact DVR V3, it is required to use Microsoft Internet Explorer 7.x or later. Note: If you are using Microsoft Internet Explorer 8, additional settings are required. See Setting for Internet Explorer 8 in Appendix C.
Page 20: Chapter 2 Physical Description
Physical Description Chapter 2 Physical Description This section identifies the various components of the GV-Compact DVR V3, and provides the overview of the remote control. 2.1 Front Panel 2.1.1 The Four-Channel Unit • Standard Models (GV-LX4C3D1 / GV-LX4C3D2 / GV-LX4C3D2W) 1.
Page 21 3. GV-LX4C3D2W 4 5 6 7 Figure 2-3 Description No. Name The two USB ports can connect the USB storage device, USB Port Wireless LAN adaptor and/or mobile Internet device. • Power LED: Turns on when the power is supplied. •...
Page 22: Physical Description
Physical Description • The Anti-Vibration ACC Model (GV-LX4C3V) Figure 2-4 Description No. Name The two USB ports can connect the USB storage device, USB Port Wireless LAN adaptor and/or mobile Internet device. • Power LED: Turns on when the power is supplied. •...
Page 23: The Eight-Channel Unit
2.1.2 The Eight-Channel Unit • Standard Models (GV-LX8CD1 / GV-LX8CD2 / GV-LX8CD2W) 1. GV-LX8CD1 Figure 2-5 2. GV-LX8CD2 Figure 2-6...
Page 24 Physical Description 3. GV-LX8CD2W 2 3 4 5 6 Figure 2-7 Description No. Name The four USB ports can connect the USB storage device, USB Port Wireless LAN adaptor and/or mobile Internet device. • Power LED: Turns on when the power is supplied. •...
Page 25 • Anti-Vibration ACC Models (GV-LX8CV1 / GV-LX8CV2) 1. GV- GV-LX8CV1 Figure 2-8 2. GV- GV-LX8CV2 Figure 2-9...
Page 26 Physical Description Description No. Name The four USB ports can connect the USB storage device, USB Port Wireless LAN adaptor and/or mobile Internet device. • Power LED: Turns on when the power is supplied. • Ready LED: Turns on when the unit is ready for use. •...
Page 27: Rear Panel
2.2 Rear Panel 2.2.1 The Four-Channel Unit • Standard Models (GV-LX4C3D1 / GV-LX4C3D2 / GV-LX4C3D2W) Figure 2-10 Description No. Name Connects to power supply. DC Power Input (12V) When using the Loop function, turn the switches to OFF 75 Ω positions.
Page 28 Physical Description • The Anti-Vibration ACC Model (GV-LX4C3V) Figure 2-11 Description No. Name Connects to power supply. DC Power Input (12V) When using the Loop function, turn the switches to OFF 75 Ω positions. The switch number is corresponding to the channel number.
Page 29: The Eight-Channel Unit
2.2.2 The Eight-Channel Unit • Standard Models (GV-LX8CD1 / GV-LX8CD2 / GV-LX8CD2W) Figure 2-12 Description No. Name Connects to power supply. DC Power Input (12V) Connects to the network. LAN Port • Inputs (5 Blue Connectors/CH1-5): Connects to Video In/Out cameras.
Page 30 Physical Description • Anti-Vibration ACC Models (GV-LX8CV1 / GV-LX8CV2) Figure 2-13 Description No. Name Connects to power supply. DC Power Input (12V) Connects to the network. LAN Port • Inputs (5 Blue Connectors/CH1-5): Connects to cameras. Video In/Out • Outputs (5 Black Connectors/CH1-5): Loops out each camera input to monitors.
Page 31: Remote Control
2.3 Remote Control The GV-Compact DVR V3 Remote Control is provided to configure and operate the GV-Compact DVR V3. 2.3.1 The Four-Channel Unit Figure 2-14 Button Description Stops recording. Starts recording. OSD menu: Moves the focus upward to the desired item.
Page 32 Quits the menu selection or exits the menu. A / B / C Switches among up to 3 units of GV-Compact DVR V3 for remote control. To Device Type set the device type of the GV-Compact DVR V3, see IR TYPE, 4.8.4 Display...
Page 33: The Eight-Channel Unit
2.3.2 The Eight-Channel Unit Figure 2-15 Button Description Stops recording. Starts recording. OSD menu: Moves the focus upward to the desired item. Playback: Decreases the speed of playback. OSD menu: Moves the focus downward to the desired item. Playback: Stops playback. OSD menu: Moves the focus leftward to the desired item;...
Page 34 Calls up the main menu. Quits the menu selection or exits the menu. Switches among up to 3 units of GV-Compact DVR V3 for remote control. To A / B / C set the device type of the GV-Compact DVR V3, see IR TYPE, 4.8.4 Display Device Type Settings.
Page 35: Chapter 3 Getting Started
Chapter 3 Getting Started Getting started with the GV-Compact DVR V3 consists of the following steps: 3.1 Basic Connection for Standard Models Install the video display devices. 3.2 Basic Connection for Anti-Vibration Models Connect the unit to the vehicle. 3.3 Connecting Anti-Vibration ACC Models Describe the ACC connection in detail.
Page 36: Basic Connection For Standard Models
1. To set the video resolution on the VGA monitor, see VGA SETTINGS, 4.8.4 Display Settings. 2. The GV-Compact DVR V3 cannot work with the microphone that acquires power from the unit. Use the microphone that has external power supply.
Page 37: The Eight-Channel Unit
1. To set the video resolution on the VGA monitor, see VGA SETTINGS, 4.8.4 Display Settings. 2. The GV-Compact DVR V3 cannot work with the microphone that acquires power from the unit. Use the microphone that has external power supply.
Page 38: Basic Connection For Anti-Vibration Models
1. Connect the ACC wire from the vehicle to Pin 16 on the terminal Block. For details, see Connecting the ACC Wire of 3.3.2 Connecting to a Vehicle. 2. Connect the Power Cable to the GV-Compact DVR V3 and to the vehicle. For details, see Connecting the Power Wire of 3.3.2 Connecting to a Vehicle.
Page 39: The Eight-Channel Unit
1. Connect the ACC wire from the vehicle to Pin 24 on the terminal block. For details, see Connecting the ACC Wire of 3.3.2 Connecting to a Vehicle. 2. Connect the Power Cable to the GV-Compact DVR V3 and to the vehicle. For details, see Connecting the Power Wire of 3.3.2 Connecting to a Vehicle.
Page 40: Connecting Anti-Vibration Acc Models
ACC wiring between the unit and the vehicle. For the test, you need to prepare a power adaptor (DC 12V, 5.0A) to power on the unit. Follow the steps below. Items required for testing: Supplied Shorting Cable Power Adaptor of DC 12V, 5A (which can be purchased from GeoVision)
Page 41 2. Power on the unit by using a power adaptor. The unit automatically starts after powering up for 5 seconds. 3. Set up the settings of the GV-Compact DVR V3, such as storage, images, recording and etc through its OSD or Web interface. See 3.6 Formatting Hard Drive and 3.8 Basic Operation.
Page 42: Connecting To A Vehicle
Getting Started 3.3.2 Connecting to a vehicle IMPORTANT: Below is an example of how to connect the Anti-Vibration ACC model to the vehicle. Since each vehicle differs in design, refer to the owner’s manual of your vehicle for details and carefully follow the safety measures.
Page 43 Find the fuse specification diagram in the owner’s manual, which tells you what each fuse controls. Look for the fuse location of the “cigarette lighter.” The fuse diagram is sometimes located on the back of the fuse box cover. Figure 3-8 Connect the ACC wire from the cigarette lighter fuse to Pin 16 (4-channel unit) or Pin 24 (8-channel unit) on the terminal block.
Page 44: Getting Started
Getting Started Connecting the Power Wire The supplied power cable of the Anti-Vibration ACC model splits into two wires. Connect the white wire to the vehicle’s power cable and use the black wire to make the ground connection. Note: The Compact DVR V3 supports the power input of 10V to 28V, 5A. Figure 3-10...
Page 45 2. Remove the car door scuff plate and wire the power cable along the driver’s door toward the back seat. Figure 3-12 3. Use one of the two methods below to connect the black ground wire of the GV-Compact DVR V3. •...
Page 46 30 seconds after the car ignition is off, try to connect the black ground wire using the other method. 4. Turn on the car ignition and the GV-Compact DVR V3 should start automatically within 5 seconds. Turn off the car ignition and the GV-Compact DVR V3 should shut down 30...
Page 47: Connecting Optional Video Output Devices
3.4 Connecting Optional Video Output Devices 3.4.1 The Four-Channel Unit The four-channel GV-Compact DVR V3 offers the looping video output for 4 monitors. It also offers the spot monitor output to display video sequentially from each video input. For the settings of the spot monitor, see 4.8.5 Spot Monitor Settings.
Page 48: The Eight-Channel Unit
Getting Started 3.4.2 The Eight-Channel Unit The eight-channel GV-Compact DVR V3 offers the looping video output for 8 monitors. It also offers the spot monitor output to display video sequentially from each video input. For the settings of the spot monitor, see 4.8.5 Spot Monitor Settings.
Page 49: Installing A Hard Drive
Follow these steps to install the hard drive. IMPORTANT: 1. The GV-Compact DVR V3 does not support hot swap. Ensure to power off the unit before removing the hard drive. Also ensure to remove the hard drive only after power was shut off for more than 60 seconds.
Page 50 Push the drawer back. Figure 3-19 5. To install a 2.5” SATA hard drive, you need a HDD Converter from GeoVision to enclose the 2.5” hard drive. Insert the Converter installed with a 2.5” hard drive into the pull-out drive drawer, secure the Converter with 6 supplied T-Cap screws, and push the drive drawer back in the drive bay.
Page 51 T-Cap screws, and push the drawer back in the drive bay of the unit. Figure 3-22 To install a 2.5” SATA hard drive, you need a HDD Converter from GeoVision to enclose the 2.5” hard drive. Insert the Converter installed with a 2.5” hard drive into the pull-out drive drawer, secure the Converter with 4 supplied screws, and push the drive drawer back in the drive bay.
Page 52: The Eight-Channel Unit
Getting Started 3.5.2 The Eight-Channel Unit 1. Make sure the unit is powered off. 2. Push down the blue button to loose the latch of the hard drive drawer, and pull out the drawer. Figure 3-25 3. Unscrew and remove the extender of the drawer. Figure 3-26 4.
Page 53 5. To install a 2.5” SATA hard drive, you need a HDD Converter from GeoVision to enclose the 2.5” hard drive. Insert the Converter installed with a 2.5” hard drive into the pull-out drive drawer, secure the Converter with 6 supplied T-Cap screws, and push the drive drawer back in the drive bay.
Page 54: Turning On / Off The Power
If the GV-Compact DVR V3 is installed in a vehicle, the unit will automatically turn off after you power off the vehicle for 30 seconds. During the 30 seconds, the GV-Compact DVR V3 will...
Page 55: Formatting A Hard Drive
3.7 Formatting a Hard Drive The GV-Compact DVR V3 is a Linux-based system. You must follow the steps below to format the hard drive before recording. 1. Press the Menu button on the Remote Control to enter the main menu.
Page 56: Main Screen Overview
Figure 3-31 1. Date and time: Indicates the current date and time when viewing live video. 2. A / B / C: Indicates the type of device defined for the GV-Compact DVR V3. 3. Monitoring icon : Appears when the monitoring is activated.
Page 57: Basic Operation
The RED recording icon will appear on the corresponding camera screen. The HDD Power LED and HDD Activity LED lights will be blinking, indicating the GV-Compact DVR V3 is in recording mode. •...
Page 58: Search/Playback Operation
Getting Started 3.9.3 Search/Playback Operation To access the recorded video for playback, press the Search button to have several search and playback options. For details, see 4.6 Search / Playback. 3.9.4 PTZ Operation To install the PTZ camera, press the Menu button on the Remote Control, select CHANNEL SETTINGS, press one Channel button (Ch1 - CH4 for the four-channel unit;...
Page 59: Chapter 4 Osd Menu Configurations
Chapter 4 OSD Menu Configurations The GV-Compact DVR V3 is configured through a series of menus on screen by using the Remote Control. This section describes the functions and options in the on-screen display (OSD) menus. To enter the main menu, press the Menu button on the Remote Control. Eight submenus will appear as shown below.
Page 60 OSD Menu Configurations List of Main Menu Options Find the topic of interest by referring to the section number prefixed to each option. 4.1.1 CHANNEL NAME 4.1.2 VIDEO/AUDIO SETTINGS 4.1.3 MOTION DETECTION 4.1.4 MOTION TRIGGER OUTPUT SETTINGS 4.1 CHANNEL SETTINGS 4.1.5 ALARM SETTINGS 4.1.6 CAMERA SETTINGS 4.1.7 PTZ SETTINGS...
Page 61: Channel Settings
4.1 Channel Settings In Channel Settings, you can adjust the device settings for each channel. To set up a channel, press the Menu button on the Remote Control, select CHANNEL SETTINGS, press one Channel button (CH1 – CH4 for the four-channel unit; CH1 – CH8 for the eight-channel unit), and select one of the setting options.
Page 62: Video/Audio Settings
AUDIO VOLUME: Select the audio volume from 0 to 14. Volume 7 is the default value. Note: The four-channel GV-Compact DVR V3 models support dual streams, allowing you to establish up two sets of codec and resolution for a single video transmission. The video setting on OSD is only for main stream.
Page 63: Motion Detection
4.1.3 Motion Detection Motion detection is used to generate an alarm whenever movement occurs in the video image. You can configure up to 8 areas of different sensitive values for motion detection. 1. Select MOTION DETECTION. This screen appears. The default sensitivity value is 2 for the whole area.
Page 64 OSD Menu Configurations 5. Press the directional buttons to place the detection area, and press the button. 6. Press the directional buttons to modify the size of the detection area, and press the button. Figure 4-6 7. Select SENSITIVITY value from Low (1), Medium (2) and High (3), and press the button.
Page 65: Motion Trigger Output Settings
4.1.4 Motion Trigger Output Settings The alarm output can be triggered simultaneously when motion is detected. The four-channel unit can connect up to 4 alarm output devices, while the eight-channel unit can connect up to 8 alarm output devices. To activate the output settings, you must also start monitoring manually or by schedule.
Page 66: Alarm Settings
OSD Menu Configurations 4.1.5 Alarm Settings You can capture images before and/or after a motion and an I/O event happens. Figure 4-9 PRE-ALARM BUFFER: Activate video recording before an event occurs. Set the recording time to 1 or 2 seconds. POST-ALARM RECORDING: Activate video recording onto the hard disk after an event occurs.
Page 67: Ptz Settings
PTZ documentation. Figure 4-11 Note: Currently the GV-Compact DVR V3 does not support the PTZ camera with RS-232 interface. A total of 47 supported PTZ models are listed on the OSD. Using the Web interface, you have more options for supported PTZ models.
Page 68: Ptz Control
OSD Menu Configurations 4.1.8 PTZ Control After setting up the PTZ camera, you can press the Channel button (CH1 - CH4 for the four-channel unit; CH1 – CH8 for the eight-channel unit) on the remote Control to display the PTZ channel. Use the directional buttons to control the PTZ movement. Press the Menu button to access advanced functions.
Page 69: Privacy Mask
4.1.9 Privacy Mask You can set up the Privacy Mask to block out sensitive areas from view by covering the areas with black or white boxes in both live view and recorded clips. Figure 4-13 STATE: Enable the Privacy Mask function. MASK MODE: Set the mask to be black or white.
Page 70: Digital Io Settings
OSD Menu Configurations 4.2 Digital IO Settings The I/O terminal block, on the rear panel of the GV-Compact DVR V3, provides the interface for the applications of digital input, relay output and GPS. 4.2.1 Digital Input Settings The four-channel unit can connect up to 4 input devices, while the eight-channel unit can connect up to 8 input devices.
Page 71: Digital Output Settings
4.2.2 Digital Output Settings The four-channel unit can connect up to 4 output devices, while the eight-channel unit can connect up to 8 output devices. To select one output device for setup, press the desired Channel button (CH1 – CH4 for the four-channel unit; CH1 –CH8 for the eight-channel unit) on the Remote Control.
Page 72: Gps Settings
OSD Menu Configurations 4.2.3 GPS Settings Note the GPS function is only supported on Anti-Vibration ACC models (GV-LX4C3V / GV-LX8CV1 / GV-LX8CV2). The Anti-Vibration ACC models support the Global Position System (GPS) for active vehicle tracking and location verification. You can track the vehicle location on Google maps and display the average speed of a vehicle in live view.
Page 73 UPDATE PERIOD: Set the update frequency in seconds for GPS data. To track the location of the GV-Compact DVR V3 on Google Maps, see 8.3 GPS Tracking. If the monitoring is also activated, the GPS tracks will be recorded along with videos. This makes it possible to play back video with GPS tracks on maps using the Remote ViewLog player.
Page 74: Events And Alerts
OSD Menu Configurations 4.3 Events and Alerts For the events of motion detection or I/O trigger, you can set up these alert methods: 1. Send a captured still image by e-mail or FTP. 2. Notify Center Monitoring Station, Center V2, VSM or GV-GIS, by video or text alerts. To have above alert methods, you must also set the following features: •...
Page 75: E-Mail
4.3.1 E-mail After a trigger event, the GV-Compact DVR V3 can send the e-mail to a remote user containing a captured still image. Figure 4-18 STATE: Enable the e-mail function. SERVER URL/IP: Enter the URL or IP address of the SMTP server.
Page 76: Ftp
PASSWORD: Enter a valid password to log into the FTP Server. REMOTE DIR: Enter the name of the storage folder on the FTP Server. FTP SERVER MODE: Enable the GV-Compact DVR V3 to act as a FTP Server, allowing users to download the AVI files.
Page 77: Center V2
4.3.3 Center V2 After a motion or an I/O triggered event, the central monitoring station Center V2 can get notified by live videos and text alerts. For the monitoring through Center V2, you must already have a subscriber account on Center V2. You can connect up to two Center V2 servers for central monitoring.
Page 78: Vsm
OSD Menu Configurations 4.3.4 VSM After a motion or an I/O triggered event, the central monitoring station VSM can get notified by text alerts. For the monitoring through VSM, you must already have a subscriber account on VSM. You can connect up to two VSM servers for central monitoring. Press CH1 and CH2 buttons on the Remote Control for two different connection settings.
Page 79: Gv-Gis
4.3.5 GV-GIS Note the GV-GIS function is only supported on Anti-Vibration ACC models (GV-LX4C3V, GV-LX8CV1 and GV-LX8CV2). Through the network connection, the Anti-Vibration ACC models equipped with GPS devices can send GPS data and live video to the GV-GIS (Geographic Information System) for the services of vehicle tracking, location verification and live monitoring.
Page 80: Video Gateway / Recording Server
OSD Menu Configurations 4.3.6 Video Gateway / Recording Server You can send the video images to the GV-Video Gateway or GV-Recording Server. Up to two GV-Video Gateways or GV-Recording Servers can be connected with the unit.. Press CH1 and CH2 buttons on the Remote Control for two different connection settings. Figure 4-23 Activate Link: Enable the connection to the GV-Video Gateway or GV-Recording Server.
Page 81: Remote Playback
4.3.7 Remote Playback You can remotely access and play the recorded files saved on the GV-Compact DVR V3 Select YES to activate the remote playback server built in the unit and to allow playback access. Keep the default port 5552 or modify it if necessary. For details on the remote playback, see 7.2.2 Playback over Network.
Page 82: 3Gpp
RTP/UDP PORT: Keep the default range from 17300 to 17319, or modify it if necessary. The number of ports for use is limited to 20. MAX CONNECTION: Set the maximum number of RTSP connections to the GV-Compact DVR V3. The maximum value is 20.
Page 83: Monitoring Settings
4.4 Monitoring Settings You can start recording manually, by schedule or by input trigger. Figure 4-26 MONITORING MODE: Select MANUAL to manually start recording or I/O monitoring. If you choose this option, configure the following item CHANNEL (CH 1 – CH 4 for the four-channel unit, or CH 1 –...
Page 84 OSD Menu Configurations To start monitoring or recording: • Select START. The unit will start monitoring based on your above settings: record immediately, only record on the scheduled time, or record by an input trigger. • Select SAVE to save the monitoring settings. Then press the REC button on the Remote Control at any time to start your monitoring settings.
Page 85: Recording Schedule
4.5 Recording Schedule The schedule is provided to activate recording and I/O monitoring on a specific time each day. 4.5.1 Specific Day The system will operate automatically on the specific days you have scheduled. Press the button on the Remote Control to start setting and then use the directional buttons to define the days.
Page 86: Channel Schedule
OSD Menu Configurations 4.5.2 Channel Schedule You can set up different monitoring schedules for each camera. Press the Channel button (CH1 – CH4 for the four-channel unit; CH1 – CH8 for the eight-channel unit) on the Remote Control to select one channel for setup. Figure 4-28 Span 1- Span 3: Sets different recording modes for each time frame during the day.
Page 87: I/O Monitoring Schedule
4.5.3 I/O Monitoring Schedule You can set up the schedule for I/O monitoring to start. Figure 4-29 Span 1- Span 3: Set different time frames during the day to enable I/O monitoring. Each day can be divided into 3 time frames, represented by Span 1 to Span 3. Weekend: If you want to have the I/O monitoring all day during the weekend, enable this option and define whether your weekend includes Saturday and Sunday (SAT-SUN) or Only Sunday (SUN).
Page 88: Search / Playback
OSD Menu Configurations 4.6 Search / Playback You can retrieve the recorded video by date, time and event. To access the SEARCH/PLAYBACK menu, press the Menu button or the Search button on the Remote Control. 4.6.1 Time Map List The Time Map List provides an overview of the recorded videos in the form of a calendar. 1.
Page 89: List All
4.6.2 List All The list displays a complete list of recorded videos. To move the list screen up and down one page, press the right and left directional buttons on the Remote Control. To start playback, highlight the desired video and press the button.
Page 90: Advanced Search
OSD Menu Configurations 4.6.7 Advanced Search You can limit your search by defining search criteria. Figure 4-32 SOURCE: Search the recorded video from the selected channel or all channels. EVENT: Select the type of recorded videos with the options of motion detection and input trigger (MOTION + IO), motion detection (MOTION), any input triggered (ALL IO) or an individual input triggered (e.g.
Page 91: Network
4.7 Network The GV-Compact DVR V3 allows you to use a Web browser to remotely view and manage the system. For remote access, configure the related network settings in this section. 4.7.1 Network Status The Network Status displays the current network settings of GV-Compact DVR V3.
Page 92: Connection Settings
Before enabling WIRELESS, configure WIRELESS SETTINGS which is explained in the following section. GAIN IP: FIXED: Assign a static IP or fixed IP to the GV-Compact DVR V3. Enter the GV-Compact DVR V3’s static IP address, subnet mask, gateway, primary DNS and secondary DNS.
Page 93: Wireless Settings
4.7.3 Wireless Settings To use the wireless function, a wireless LAN USB Adaptor is required. For supported wireless LAN adaptors, see Appendix A. Figure 4-35 NETWORK TYPE: Select AD HOC or INFRASTRUCTURE for the network mode. AD HOC: A Peer-to-Peer mode. This mode connects to other computer with the WLAN card, and does not need the Access Point to connect to each other.
Page 94: Advanced Tcp/Ip
Figure 4-36 HOST NAME: Enter a descriptive name for the GV-Compact DVR V3. HTTP PORT: The HTTP port enables connecting the GV-Compact DVR V3 to the Web. For security integration, the Administrator can hide the server from the general HTTP port by changing the default HTTP port of 80 to a different port number within the range of 1024 thru 65535.
Page 95: Umts Settings
IP Address: The IP address of the GV-Compact DVR V3 will be displayed after the UMTS service is enabled. The next time when you want to log in the GV-Compact DVR V3, you need to enter the IP address into your browser. If you use the UMTS connection with dynamic IP addresses, it is highly suggested to enable the DDNS function that links a domain name to the unit’s changing IP address.
Page 96: Ddns Settings
DDNS (Dynamic Domain Name System) provides a convenient way of accessing the GV-Compact DVR V3 when using a dynamic IP. DDNS assigns a domain name to the unit, so that the Administrator does not need to go through the trouble of checking if the IP address assigned by DHCP server or ISP (in xDSL connection) has changed.
Page 97: Multicast Settings
4.7.7 Multicast Settings Note the Multicast function is only supported on the four-channel GV-Compact DVR V3 and only works on a single stream. You can enable either Multicast or RTSP; the two protocols cannot function at the same time. The multicast provides a mechanism for sending a single video and audio stream to a group of hosts.
Page 98: Web User Account Info
OSD Menu Configurations 4.7.8 Web User Account Info You can change the login name and password of Administrator, Guest and FTP Server User. • The default Administrator login name and password are admin. • The default Guest login name and password are guest. •...
Page 99: Advanced
Note: The default setting with the time server can avoid the system time delay. If your GV-Compact DVR is not networked or the time server is not enabled, the system time may delay about 1.5 second every 24 hours. In such case, you could update the system time manually to ensure exact recording time.
Page 100: Firmware Settings
GeoVision will periodically release the updated firmware on the website. The new firmware can be simply loaded into the GV-Compact DVR V3 by using a USB storage device. For the details on upgrading the unit over the network, see Chapter 8 Advanced Applications.
Page 101: Storage Settings
4.8.3 Storage Settings You can configure the settings of the connected hard disk drive. Figure 4-43 STORAGE STATUS: Display the total size and space usage of the hard drive. STORAGE MANAGEMENT: This option allows you to format the hard disk. For details, see 3.6 Formatting Hard Drive.
Page 102: Display Settings
IR TYPE: Set the unit to be Type A, B, or C device. The setting allows you to control multiple GV-Compact DVR V3s with one Remote Control. Use the A, B, C Device Type buttons on the Remote Control to switch among devices.
Page 103: Spot Monitor Settings
4.8.5 Spot Monitor Settings You can configure the settings when a spot monitor is connected to the GV-Compact DVR V3. Figure 4-45 NORMAL DWELL TIME: Select the amount of time that each video remains on the spot monitor before the GV-Compact DVR V3 switches to the next video in a rotation. The dwell time can be between 1 and 5 seconds.
Page 104: Alert Settings
OSD Menu Configurations 4.8.6 Alert Settings The system buzzer can be activated automatically under these conditions: video lost, input devices triggered, motion detected, disk full and disk write error. The duration of buzzing sounds is definable. When the buzzer starts beeping, pressing any button on the Remote Control can stop it.
Page 105: System Settings
RESTORE DEFAULT SETTINGS: Return the system to default settings. REBOOT: Restart the system. To schedule the GV-Compact DVR V3 to automatically restart at a specified time, see 6.8.6 Tools of the Web-based configuration.
Page 106: System Log
OSD Menu Configurations 4.8.8 System Log You can view and save the system events logged on the GV-Compact DVR V3. To back up the system log, press the REC button on the Remote Control, and select USB or DVD disc to store the backup data.
Page 107: Backup
Figure 4-49 To play back the backup files, see 7.2.4 Playback of Backup Files. Note: The GV-Compact DVR V3 only supports the FAT file system. Before connecting the USB storage device, make sure it is FAT formatted.
Page 108: Chapter 5 Remote Viewing Using A Web Browser
Remote Viewing Using a Web Browser Chapter 5 Remote Viewing Using A Web Browser Not only can the GV-Compact DVR V3 operate as a standalone, but also a networked device. Using the Internet Explorer, you can remotely access and manage the GV-Compact DVR V3.
Page 109: Connecting With A Pc
5.1.2 Connecting with a PC Use a computer on the same LAN with the GV-Compact DVR V3 to assign the IP address. The GV-Compact DVR V3 has a default address of 192.168.0.10. The computer used to set the IP address must be under the same IP and subnet sequence assigned to the unit.
Page 110: Remote Viewing Using A Web Browser
Remote Viewing Using a Web Browser IMPORTANT: 1. If Dynamic IP Address and PPPoE are enabled, you must check the current IP address from the OSD screen of Network Status (Figure 4-33) every time before logging in the unit. Otherwise, you may enable the DDNS function that links a domain name to the unit’s changing IP address first.
Page 111: Accessing Your Surveillance Images
Once installed, the GV-Compact DVR V3 is accessible on a network. Follow these steps to access your surveillance images: 1. Start the Internet Explorer browser. 2. Enter the IP address or the domain name of the GV-Compact DVR V3 in the Location/Address field of your browser. Figure 5-3 3.
Page 112: Functions Featured On The Main Page
Remote Viewing Using a Web Browser 5.3 Functions Featured on the Main Page Two types of users are allowed to log in the GV-Compact DVR V3: Administrator and Guest. The Administrator has unrestricted access to all system configurations, while the Guest has the access to live view and network status only.
Page 113: The Live View Window
5.3.1 The Live View Window Figure 5-5 No. Name Function Play Plays live video. Stop Stop playing video. Microphone Talks to the surveillance area from the local computer. Speaker Listens to the audio around the camera. Snapshot Takes a snapshot of live video. --- See section 5.3.3. File Save Records live video to the local computer.
Page 114: The Control Panel Of The Live View Window
Figure 5-6 [Information] Displays the version of the GV-Compact DVR V3, local time of the local computer, host time of the GV-Compact DVR V3, and the number of users logging in to the GV-Compact DVR V3. [Video] Displays the current video codec, resolution and data rate.
Page 115: Snapshot Of A Live Video
5.3.3 Snapshot of a Live Video To take a snapshot of live video, follow these steps: 1. Click the Snapshot button (No. 5, Figure 5-5). The Save As dialog box appears. 2. Specify Save in, type the File name, and select JPEG or BMP as Save as Type. You may also choose whether to display the name and date stamps on the image.
Page 116: Picture-In-Picture And Picture-And-Picture View
Remote Viewing Using a Web Browser 5.3.5 Picture-in-Picture and Picture-and-Picture View The full screen mode provides two types of close-up views: Picture-in-Picture (PIP) and Picture-and Picture (PAP). The two views are useful to provide clear and detailed images of the surveillance area. Picture-in-Picture View With the Picture in Picture (PIP) view, you can crop the video to get a close-up view or zoom in on the video.
Page 117 Picture-and-Picture View With the Picture and Picture (PAP) view, you can create a split video effect with multiple close-up views on the image. A total of 7 close-up views can be defined. Figure 5-8 Right-click the live view and select PAP. A row of three inset windows appears at the bottom.
Page 118: Alarm Notification
Remote Viewing Using a Web Browser 5.3.6 Alarm Notification After input triggers and motion detection, you can be alerted by a pop-up live video and view up to four captured images. Pop-up live video Captured images Figure 5-9 To configure this function, click the Show System Menu button (No. 12, Figure 5-5), and select Alarm Notify.
Page 119: Video And Audio Configuration
5.3.7 Video and Audio Configuration You can enable the microphone and speaker for two-way audio communication and adjust the audio volume. To change audio configuration, click the Show System Menu button (No. 12, Figure 5-5), and select Video and Audio Configuration. Figure 5-11 5.3.8 Remote Configuration You can view the connection status of the central monitoring stations and upgrade firmware...
Page 120: Image Enhancement
Remote Viewing Using a Web Browser 5.3.10 Image Enhancement To enhance the image quality of live video, click the Show System Menu button (No. 12, Figure 5-5), and select Image Enhance. This dialog box appears. Figure 5-12 De-Interlace: Coverts the interlaced video into non-interlaced video. De-Block: Removes the block-like artifacts from low-quality and highly compressed video.
Page 121: Visual Ptz
5.3.12 Visual PTZ In additional to the PTZ control panel, you can display a visual PTZ control panel on the image. This feature is only available when the PTZ is set ahead by the Administrator. For details, see 6.2.2 PTZ Settings. Figure 5-14 To access this feature, click the PTZ Control button (No.
Page 122: I/O Control
Remote Viewing Using a Web Browser 5.3.13 I/O Control The I/O Control window provides real-time graphic displays of camera and I/O status, and alarm events. Additionally, you can force output to be triggered. Figure 5-15 To display the I/O control window, click the I/O Control button (No. 9, Figure 5-5). The Alarm List is displayed in three levels.
Page 123: Visual Automation
5.3.14 Visual Automation The Visual Automation allows you to change the current state of the electronic device by simply clicking on its image, e.g. turning the light ON. This feature is only available when the Visual Automation is set ahead by the Administrator. For details, see 6.1.4 Visual Automation. Figure 5-16 To access this feature, click the I/O Control button (No.
Page 124: Multicast
Note this function is only available on the four-channel GV-Compact DVR V3. The Multicast view allows the GV-Compact DVR V3 receiving video and audio streams from a multicast group. It also enables the unit to receive audio broadcast from the hosts in the multicast group.
Page 125: Network Status
5.3.16 Network Status To view the network status, in the left menu, click Network and select Status. Figure 5-18...
Page 126: Chapter 6 Remote Configurations
Remote Configurations Chapter 6 Remote Configurations The Administrator can remotely configure the GV-Compact DVR V3 via the network. Eight categories of configurations are involved in the system configuration: Video and Motion, Digital I/O and PTZ, Events and Alerts, Monitoring, Recording Schedule, Remote ViewLog, Network, and Management.
Page 127 List of Menu Options Find the topic of interest by referring to the section number prefixed to each option. 6.1.1 Video Settings 6.1.2 Motion Detection 6.1.3 Text Overlay 6.1 Video and Motion 6.1.4 Visual Automation 6.1.5 VGA Output Settings 6.1.6 Video Channel Source Settings 6.2.1 I/O Control 6.2.2 PTZ Settings 6.2 Digital I/O and PTZ...
Page 128: Video & Motion
Settings. 6.1.1 Video Settings The four-channel GV-Compact DVR V3 models support dual streams, allowing you to set up two different codec and resolutions for a single video transmission. In a limited bandwidth network, you can enable the dual streams to lower the resolution and codec for live images, but still get the highest recording quality and smallest file size compressed with H.264 codec.
Page 129 Figure 6-2...
Page 130 Remote Configurations [Name] Rename the camera. To display the camera name on the image, see 5.3.9 Camera Name Display. [Video Signal Type] Auto detect signal type on booting: Automatically detects the type of video input is NTSC or PAL. Video Format: This option is only available in Sub Stream of four-channel models. Select MJPEG to enable the sub stream for dual-stream function.
Page 131 [GOP Structure and Length] Set the maximum number of frames between every key frame. The limit is 1 key frame for every 120 frames. [Record Settings] These settings are only available for the main stream. The record settings allow you to capture images before and/or after a motion and an I/O event happens.
Page 132: Motion Detection
Remote Configurations 6.1.2 Motion Detection Motion detection is used to generate an alarm whenever movement occurs in the video image. You can configure up to 8 areas with different sensitivity values for motion detection. Figure 6-3 1. The default sensitivity value is 2 for the whole area. To define a different sensitivity value, click Reset.
Page 133: Text Overlay
6.1.3 Text Overlay The Text Overlay function allows you to type any text in any place on the camera view. Up to 16 text messages can be created. The overlaid text will also be saved in the recorded images. Figure 6-4 Select the Enable option.
Page 134: Visual Automation
Remote Configurations 6.1.4 Visual Automation Note for eight-channel GV-Compact DVR V3, this function can only be applied to channel 1 to 4. This intuitive feature helps you automate any electronic device by triggering the connected output device. When you click on the image of the electronic device, you can simply change its current state, e.g.
Page 135: Vga Output Settings
6.1.5 VGA Output Settings The GV-Compact DVR V3 is equipped with a VGA connector for computer monitors or high-definition television sets. You can select the screen resolution for the VGA output. Figure 6-8 6.1.6 Video Channel Source Settings Note this function is only available for the four-channel GV-Compact DVR V3.
Page 136: Digital I/O & Ptz
Remote Configurations 6.2 Digital I/O & PTZ The I/O terminal block, on the rear panel of the GV-Compact DVR V3, provides the interface for the following applications: Alarm input and output RS-485 interface for PTZ control 6.2.1 I/O Control Input Setting The four-channel Compact DVR V3 can connect up to 4 input devices, such as sensors, while the eight-channel unit can connect up to 8 input devices.
Page 137: Output Setting
For set up a PTZ camera, see 6.2.2 PTZ Settings. Output Setting The four-channel GV-Compact DVR V3 can connect up to 4 output devices, such as alarms, while the eight-channel units can connect up to 8 output devices. Select Enable to enable the output device. Choose the output signal that mostly suits the device you are using: N/O (Open Circuit), N/C (Grounded Circuit), N/O Toggle, N/C Toggle, N/O Pulse or N/C Pulse.
Page 138: Ptz Settings
In the setting page, you may need to consult your PTZ camera’s documentation to set up its baud rate and address. For supported PTZ device list, see Appendix F. Figure 6-12 Note: Currently the GV-Compact DVR V3 does not support the PTZ camera with RS-232 interface.
Page 139: Gps
Specify the duration of GPS data to be saved in the hard disk or storage device of GV-Compact DVR V3 in case that the connection between the GV-Compact DVR V3 and GV-GIS is interrupted. When the connection is resumed, the saved GPS will be...
Page 140 Remote Configurations To display the vehicle speed: Select Overlaid with the GPS speed on the Video Settings page, and click Apply. Video Settings page Vehicle speed in live view Figure 6-14 To track the vehicle location: See 8.3 GPS Tracking. To play back GPS tracks: If the monitoring is also activated, the GPS tracks will be recorded along with video.
Page 141: Buzzer
6.2.4 Buzzer The system buzzer can be activated automatically under these conditions: video lost, input devices triggered, motion detected, disk full and disk write error. The duration of buzzing sounds is definable. When the buzzer starts beeping, pressing any button on the Remote Control can stop it.
Page 142: Spot Monitor
Remote Configurations 6.2.5 Spot Monitor If the spot monitor is connected to the GV-Compact DVR V3, configure the settings of the spot monitor. Figure 6-16 Dwell time x seconds: Select the amount of time that each video remains on the spot monitor before the GV-Compact DVR V3 switches to the next video in a rotation.
Page 143: Events & Alerts
6.3 Events & Alerts When motion is detected or I/O devices are triggered, the Administrator can set up these alert methods: 1. Send a captured still image by e-mail or FTP. 2. Notify Center Monitoring Station, Center V2, VSM or GV-GIS, by video or text alerts. To have above alert methods, you must also set the following features: •...
Page 144: E-Mail
Remote Configurations 6.3.1 E-mail After a trigger event, the GV-Compact DVR V3 can send the e-mail to a remote user containing a captured still image. Figure 6-17 [Enable] Select to enable the e-mail function. Sever URL/IP Address: Type the URL or IP address of the SMTP server.
Page 145: Ftp
6.3.2 FTP You can also send the captured still image to a remote FTP server for alerts. Figure 6-18 [Upload to a FTP Server] Enable: Select to enable the FTP function. Server URL/IP Address: Type the URL address or IP address of the FTP Server. Port Number: Type the port number of the FTP Server.
Page 146 [Act as FTP Server] You can enable the GV-Compact DVR V3 to act as a FTP Server, allowing users to download the AVI files. The default download port is 21. To access the internal FTP server through a Web browser, enter the IP address or the domain name of the GV-Compact DVR V3 in your browser like this: ftp://192.168.0.10...
Page 147: Center V2
After a motion or an I/O triggered event, the central monitoring station Center V2 can get notified by live videos and text alerts. For the live monitoring through Center V2, you must already have a subscriber account on Center V2. The GV-Compact DVR V3 can connect up to two Center V2 servers simultaneously.
Page 148 Remote Configurations These options you can also find on this Center V2 setting page: Cease motion detection messages from: Stops notifying Center V2 of motion detection from selected camera. Cease input trigger messages from: Stops notifying Center V2 of input trigger from selected input.
Page 149: Vsm
After a motion or an I/O triggered event, the central monitoring station VSM can get notified by text alerts. For the live monitoring through VSM, you must already have a subscriber account on VSM. The GV-Compact DVR V3 can connect up to two VSM simultaneously. Figure 6-20 To enable the VSM connection: 1.
Page 150 Remote Configurations These options you can also find on this VSM setting page: Cease motion detection messages from: Stops notifying VSM of motion detection from selected camera. Cease input trigger messages from: Stops notifying VSM of input trigger from selected input.
Page 151: Gv-Gis
Through the network connection, the Anti-Vibration ACC models equipped with GPS devices can send GPS data and live video to the GV-GIS (Geographic Information System) for the services of vehicle tracking, location verification and live monitoring. The GV-Compact DVR V3 can connect up to two GV-GIS simultaneously.
Page 152 Remote Configurations Figure 6-21 To enable the GV-GIS connection: 1. Activate Link: Enable the monitoring through GV-GIS. 2. Host Name or IP Address: Type the host name or IP address of GV-GIS. 3. Port Number: Match the communication port on GV-GIS. Or keep the default value 3356. 4.
Page 153: Backup Center
The GV-Backup Center provides a PC-based storage and backup solution. The connection to the GV-Backup Center allows you to back up another copy of recordings and system log to a pc-based GV-Backup Center while the GV-Compact DVR V3 is saving these data to the attached hard disk.
Page 154 Backup Center failure, you can configure the connection to the failover server. 1. Set Update Frequency: Once the GV-Compact DVR V3 is disconnected from the Backup Center for the specified time, the GV-Compact DVR V3 will be directed to the failover server.
Page 155: Video Gateway / Recording Server
6.3.7 Video Gateway / Recording Server The GV-Recording Server is a video streaming server designed for large-scale video surveillance deployments. It can receive and record up to 128 channels from various IP video devices, and distribute up to 300 channels to its clients. With the GV-Recording Server, the desired frame rate can be ensured while the CPU loading and bandwidth usage of the IP video devices are significantly reduced.
Page 156 Remote Configurations To enable the GV-Video Gateway and GV-Recording Server connection: 1. Activate Link: Enable the connection to GV-Video Gateway / GV-Video Server. 2. Host Name or IP Address: Type the host name or IP address of GV-Video Gateway / GV-Recording Server.
Page 157: Viewlog Server
6.3.8 ViewLog Server The ViewLog Server is designed for remote playback. This server allows you to remotely access the recorded files saved on the GV-Compact DVR V3 and play back video with the ViewLog player. Select Enable to activate the server built in the unit and to allow the playback access. Keep the default port 5552 or modify it if necessary.
Page 158: Rtsp / 3Gpp
RTP/UDP Port: Keep the default range from 17300 to 17319, or modify it if necessary. The number of ports for use is limited to 20. Max Connection: Set the maximum number of RTSP connections to the GV-Compact DVR V3. The maximum value is 20.
Page 159: Monitoring
6.4 Monitoring You can start recording manually, by schedule or by input trigger. Figure 6-26 [Manual] Manually activates recording and I/O monitoring. Select one of the following options and then click the Start button. Select all: Manually starts recording and I/O monitoring as well. Camera x: Manually starts recording.
Page 160 Remote Configurations [Camera Status Icon] : Manual recording : Schedule recording : On standby : Enabled for motion detection and input trigger...
Page 161: Recording Schedule
6.5 Recording Schedule The schedule is provided to activate recording and I/O monitoring on a specific time each day. 6.5.1 Recording Schedule Settings You can set up different monitoring schedules for each camera. Figure 6-27 Span 1- Span 3: Set a different recording mode for each time frame during the day. Each day can be divided into 3 time frames, represented by Span 1 to Span 3.
Page 162: I/O Monitoring Settings
Remote Configurations 6.5.2 I/O Monitoring Settings You can set up the schedule for I/O monitoring to start. Figure 6-28 Span 1 to Span 3: Set different time frames during the day to enable I/O monitoring. Each day can be divided into 3 time frames, represented by Span 1 to Span 3. Weekend: If you want to have the I/O monitoring all day during the weekend, enable this option and define whether your weekend includes Saturday and Sunday or Only Sunday.
Page 163: Remote Viewlog
And to allow the playback access, the ViewLog Server built in the unit must be enabled. See 6.3.8 ViewLog Server. For details on connecting to the GV-Compact DVR V3 for playback, see 7.2.2 Playback over Network.
Page 164: Network
6.7 Network The Network section includes some basic but important network configurations that enable the GV-Compact DVR V3 to be connected to a TCP/IP network. 6.7.1 LAN According to your network environment, select among Static IP, DHCP and PPPoE to configure an IP address to the GV-Compact DVR V3.
Page 165 IP address. To enable the DDNS function, see 6.7.3 Advanced TCP/IP. Static IP address: Assign a static IP or fixed IP to the GV-Compact DVR V3. Type the GV-Compact DVR V3’s TCP/IP and DNS parameters in the Configure connection parameters section.
Page 166: Wireless-Client Mode
Remote Configurations 6.7.2 Wireless-Client Mode To use the wireless function, a wireless LAN USB Adaptor is required. For supported wireless LAN adaptors, see Appendix A. Figure 6-30 Network type: Select the network mode Ad Hoc or Infrastructure. Infrastructure: Via the Access Point to connect to the Internet. This mode further gives wireless access to the Internet or data sharing under a previously wired environment.
Page 167 WEP (Wired Equivalent Privacy): A type of data encryption. Type up to four WEP Keys in HEX or ASCII format. Note that if you use HEX format, only digits 0-9 and letters A-F, a-f are valid. WPAPSK-TKIP and WPA2PSK-TKIP: Type WPA-PSK (Pre-Shared Key) for data encryption.
Page 168: Advanced Tcp/Ip
Remote Configurations 6.7.3 Advanced TCP/IP This section introduces the advanced TCP/IP settings, including DDNS server, HTTP port, HTTPS port, streaming port and UPnP. Figure 6-31...
Page 169 2. Service Provider: Select the DDNS service provider you have registered with. 3. Host Name: Type the host name used to link to the GV-Compact DVR V3. For the users of GeoVision DDNS Server, it is unnecessary to fill the field because the system will detect the host name automatically.
Page 170 To apply QoS to the GV-Compact DVR V3, all network routers must support QoS and QoS must be enabled on these devices. To enable the QoS on the GV-Compact DVR V3, enter a Differentiated Services Code Point (DSCP) value. This value is a field in an IP packet that enables different levels of services for the network traffic.
Page 171: Umts/Zigbee
After a mobile broadband device (supporting UMTS, HSDPA, etc.) is attached to the USB port on the front panel and the UMTS function is enabled, the GV-Compact DVR V3 can have wireless Internet connectivity. For supported mobile broadband devices, see Appendix B.
Page 172 1500. Retain UMTS Connection: Select this option to check the UMTS connection status and use the drop-down list to specify the time length for check frequency. The GV-Compact DVR V3 will attempt connection if disconnection is detected. Check VPN Connection: Select this option to enable the Virtual Private Network (VPN) connection.
Page 173: Multicast
The multicast streams are only sent to the groups of hosts on a local network. This configuration page provides two settings. One is to allow the GV-Compact DVR V3 to join a multicast group. The other is to allow the GV-Compact DVR V3 to receive audio broadcasting from other hosts in a multicast group.
Page 174 Remote Configurations Enable Encryption: Enable this option and type the Encryption Key to secure multicast streams. The hosts in the multicast group will need to enter the Key to access the video and audio streams. Enable Audio callback: Enable this option to receive audio broadcasting from the hosts in the multicast group.
Page 175: Ip Filtering
6.7.6 IP Filtering The Administrator can set IP filtering to restrict access to the GV-Compact DVR V3. Figure 6-34 To enable the IP Filter function: 1. Enable IP Filtering: Enable the IP Filtering function. 2. Filtered IP: Type the IP address you want to restrict the access.
Page 176: Snmp Setting
Remote Configurations 6.7.7 SNMP Setting The Simple Network Management Protocol (SNMP) allows you to monitor the status of the camera through SNMP network management software. Figure 6-35 1. Select Enable SNMPv1 SNMPv2c to enable the function. 2. To enable access to Read/Write community, type a community string. This will serve as a password to allow read and write access to the camera from the SNMP software.
Page 177: Management
6.8 Management The Management section includes the settings of data and time, storage device and user account. In addition, you can view the firmware version and execute certain system operations. 6.8.1 Date & Time Setting The date and time settings are used for date and time stamps on the image. Figure 6-36...
Page 178 Remote Configurations [Date & Time on Device] Displays the current date and time on the GV-Compact DVR V3. [Time Zone] Sets the time zone for local settings. Select Enable Daylight Saving Time to automatically adjust the GV-Compact DVR V3 for daylight saving time. Type the Start Time and End Time to enable the function.
Page 179: Gps Maps Settings
API key in the Google Map API Key field. If your GV-Compact DVR V3 is equipped with a GPS device, it is not necessary to enter Default Longitude and Default Latitude, since its vehicle location will be tracked by GPS.
Page 180: Storage Settings
You need to format the hard drive before using it for recording. Figure 6-38 To add a hard disk: 1. Install the hard drive to the GV-Compact DVR V3. 2. Click the Format button. After the format is complete, the partition information will be displayed. The maximum space for one partition is 200 GB.
Page 181 [Storage Settings] If the Enable recycling option is selected, when the space of the hard drive is lower than the specified space, the system will either write the data to another device or overwrite the oldest recorded files. If the Enable recycling option is cancelled, the system will stop recording when the specified space is reached.
Page 182: User Account
Remote Configurations 6.8.4 User Account You can change the login name and password of Administrator, Guest and FTP Server User. [Administrator Account] The default login name and password for Administrator are admin. [Guest User Account] The default login name and password for Guest are guest. [FTP Server User Account] The default login name and password to access the FTP server are ftpuser.
Page 183: Log Information
6.8.5 Log Information The Startup time log section contains every start time of the GV-Compact DVR V3. The startup time log is saved on the hard disk, so the log is only available when a hard disk is inserted to the GV-Compact DVR V3.
Page 184: Tools
Remote Configurations 6.8.6 Tools This section allows you to execute certain system operations and view the firmware version. Figure 6-41...
Page 185 The Ready LED on the front panel will turn off. Wait until the Ready LED turns on and re-log in the unit. Note: After applying the default function, you will need to configure the GV-Compact DVR V3’s network setting again.
Page 186: Acc Settings
Note the ACC setting is only supported on Anti-Vibration ACC models (GV-LX4C3V / GV-LX8CV1 / GV-LX8CV2). The ACC setting allows you to specify power-off delay time from 0 to 30 minutes. The GV-Compact DVR V3 will not turn off for the specified delay time after you power off the vehicle. Figure 6-42...
Page 187: Chapter 7 Remote Recording And Playback
5. If you want the recording to be triggered by an input device, configure the operation of I/O devices. See 6.2.1 I/O Control. 6. To start recording and I/O monitoring, see 6.4 Monitoring. The GV-Compact DVR V3 will start recording in case of motion detection, I/O trigger, or on the scheduled time. 7.2 Remote Playback Several methods are available to access and play back the video files recorded on the GV-Compact DVR V3.
Page 188: Playback Of Files Recorded On Hard Drive
You can play back the files recorded on the hard drive by connecting it to a computer or GV-System. However, the files recorded on the GV-Compact DVR V3 are of Linux file system. To enable Windows to recognize the files, you need to install the program IFS Drivers from the Software DVD first.
Page 189: Playback Over Network
32-bit Windows 7, see Appendix G. 7.2.2 Playback over Network You can remotely play back the files recorded on the GV-Compact DVR V3 over network. 1. The Administrator needs to allow the playback access with ViewLog Server activated. See 6.3.8 ViewLog Server to enable the server.
Page 190: Access To The Recorded Files Through Ftp Server
Note: For details on Remote ViewLog, see the supplementary user’s manual on the Software DVD. 7.2.3 Access to the Recorded Files through FTP Server The built-in FTP server allows you to download the recorded files saved on the GV-Compact DVR V3. 1. Enable the FTP server. See [Act as FTP Server], 6.3.2 FTP.
Page 191 To play back video using the Remote Playback player: 1. Install and run the Remote Playback player from the Software DVD. 2. When the Remote ViewLog player is opened, you will be prompted to select Remote ViewLog Service or Remote Storage System. Select Remote ViewLog Service. 3.
Page 192: Playback Of Gps Tracks
This function is only available for the Anti-Vibration ACC models (GV-LX4C3V / GV-LX8CV1 / GV-LX8CV2). After the GPS function is enabled on the GV-Compact DVR V3, the GPS data will be recorded along with the video files. You can back up the video files on a DVD disc or a USB storage device and play back the GPS tracks on the maps.
Page 193 3. To select a map API (Application Program Interface), click the Tools button and click Select Map API. This dialog box appears. Figure 7-7 4. In Please Select a Map API, select a Map API. For Google Maps, you need to sign up for an API key from Google website (http://code.google.com/apis/maps/signup.html), and enter the API key in the Please enter the map authorization key or license key field.
Page 194 Remote Recording and Playback Note: 1. The playback function is only compatible with GV-System version 8.3 or later. 2. If you like to use the maps created yourself, overwrite the files at :\GV folder\GIShtm-User, and select User Defined from the “Please Select a Map API” drop-down list (Figure 7-7).
Page 195: Chapter 8 Advanced Applications
8.1 Upgrading System Firmware GeoVision will periodically release the updated firmware on the website. The new firmware can be simply loaded into the GV-Compact DVR V3 over the network or by using the IP Device Utility included in the Software DVD.
Page 196: Using The Web Interface
Advanced Applications 8.1.1 Using the Web Interface 1. In the Live View window, click the Show System Menu button (No. 11, Figure 5-5), select Remote Config, and click the Firmware Upgrade tab. This dialog box appears. Figure 8-1 2. Click the Browser button to locate the firmware file (.img) saved at your local computer. 3.
Page 197: Using The Ip Device Utility
GV-Compact DVR V3 on the same LAN. Or click the New button and assign the IP address to locate a GV-Compact DVR V3 over the Internet. Or highlight one GV-Compact DVR V3 in the list and click the Delete button to remove it.
Page 198 Figure 8-4 6. Click the Browse button to locate the firmware file (.img) saved at your local computer. 7. If you like to upgrade all the GV-Compact DVR V3s in the list, select Upgrade all devices. 8. Type Password, and click Upgrade to process the upgrade.
Page 199: Backing Up And Restoring Settings
8.2 Backing Up and Restoring Settings With the IP Device Utility included in the Software DVD, you can back up the configurations in the GV-Compact DVR V3 and restore the backup data to the current unit or import it to another unit.
Page 200: Restoring The Settings
Advanced Applications 8.2.2 Restoring the Settings 1. In Figure 8-3, click the Import Settings tab. This dialog box appears. Figure 8-6 2. Click the Browse button to locate the backup file (.dat). 3. Select Password Settings to restore the password settings, if necessary. 4.
Page 201: Gps Tracking
8.3 GPS Tracking The Anti-Vibration ACC models of the GV-Compact DVR V3 support the Global Position System (GPS) for active vehicle tracking and location verification. The vehicle location will be tracked by Google Maps. To track the location of your GV-Compact DVR V3: Connect the GV-GPS module with PS/2 connector to the GPS port on the rear panel of the unit.
Page 202 Advanced Applications To track the GV-Compact DVR V3 on Google Maps, click Open. A warning message appears. Figure 8-8 Right-click the warning message and select Allow Blocked Content. The map will be displayed. The icon indicates the location of your GV-Compact DVR V3. At the upper right corner you have options to view different map formats, such as Satellite and Hybrid.
Page 203: Restoring To Factory Default Settings
8.4 Restoring to Factory Default Settings To restore the GV-Compact DVR V3 to default settings, use the Reset and Default buttons on the front panel. For the location of the two buttons see 2.1 Front Panel. 1. Press and then release the Reset button immediately.
Page 204: Verifying Watermark
Use the File Save function on the Live View window (Figure 5-5) to start recording on the local computer. Use the Act as FTP Server function to download the files from the GV-Compact DVR V3. See 6.3.2 FTP. Use the files recorded on the hard drive. Since the files saved on the hard drive are of Linux file system, you need to run IFS Drives from the Software DVD to convert the Linux-based files to Windows-based files.
Page 205: The Watermark Proof Window
8.5.3 The Watermark Proof Window Figure 8-10 The controls in the window: No. Name Description Open File Opens the recorded file. First Frame Goes to the first frame of the file. Play Plays the file. Previous Frame Goes to the previous frame of the file. Next Frame Goes to the next frame of the file.
Page 206: Chapter 9 Mobile Phone Surveillance
Mobile Phone Surveillance Chapter 9 Mobile Phone Surveillance Using an Android smartphone, iPhone or iPod Touch, you can receive live video streaming from the GV-Compact DVR V3. The chart below lists the available remote viewers for GV-Compact DVR V3. Handheld...
Page 207: Android Smartphone
Android Market, and after installing the application on your mobile phone, the GV-AView icon will appear on the desktop. Follow the steps below to access a GV-System or a GV-IP device. Figure 9-1 9.1.1 Connecting to GV-Compact DVR V3 1. Tap the GV-AView icon on the main page.
Page 208: Mobile Phone Surveillance
3. Tab the Add button to enter the login information of the GV-Compact DVR V3. Figure 9-3 4. Type the name, IP address, port number, user name and password of the GV-Compact DVR V3. 5. Tap the Add button to add the login information to the address book. If you want to...
Page 209 Screen Division : Displays up to four channels on the same page. Dual Stream : This button is not supported by GV-Compact DVR V3 devices because sub steam transmission to mobile phones is not supported. Switches between the video streams.
Page 210: Iphone And Ipod Touch
Mobile Phone Surveillance 9.2 iPhone and iPod Touch With GV-Eye V1, you can access the GV-Compact DVR V3 from your iPhone or iPod Touch to remotely watch live view, force output devices to be triggered and take snapshots. Download GV-Eye V1 from App Store and install the application. The GV-Eye icon will appear on the desktop.
Page 211: Connecting To Gv-Compact Dvr V3
3. Enter the Host name, Domain/IP address, port number, username and password to log in to the GV-IP device. 4. Tap the Save button. The GV-Compact DVR V3 is now added to the IPCam list and will be available the next time you access GV-Eye. You can tap the Edit button and then select an IP device to edit existing device login information.
Page 212 Snapshot Saves the current image in the mobile device. I/O Device Forces output device to be triggered. Note: The PTZ control and I/O device functions are only accessible on GV-Compact DVR V3 equipped with PTZ cameras and I/O devices.
Page 213: Chapter 10 Dvr Configurations
GV-Compact DVR V3 is connected to GV-System, IE browser or any other application, it takes up 1 stream. • The recording resolution of digital videos is set up on the GV-Compact DVR V3 instead of on the GV-System. •...
Page 214: Setting Up Gv-Compact Dvr V3
Camera Install and click IP Camera Install. This dialog box appears. Figure 10-2 • To automatically set up a GV-Compact DVR V3, click Scan Camera to detect any GV-Compact DVR V3 devices on the same LAN. • To manually set up a GV-Compact DVR V3, click Add Camera.
Page 215 Click Add Camera. This dialog box appears. Figure 10-3 Type the IP address, username and password of the GV-Compact DVR V3. Modify the default HTTP port if necessary. Select GeoVision from the Band drop-down list and select GeoVision Compact DVR from the Device drop-down list.
Page 216: Dvr Configurations
The Statue column now should display “Connected”. Click OK. Configuring the Compact DVR Settings After the GV-Compact DVR V3 is connected and assigned with a display position, you can configure settings such as frame rate, codec type and resolution. Right-click the GV-...
Page 217 Automatically Adjust DST: If enabled, the time on the GV-Compact DVR V3 Web interface will be synchronized with the time of the GV-System when DST period starts or ends on the GV-System.
Page 218: Remote Monitoring With Multi View
10.2 Remote Monitoring with Multi View You can use the Multi View to monitor and manage the cameras and I/O devices connected to the GV-Compact DVR V3. Connecting to GV-Compact DVR V3 The Multi View program is available in the GV-System applications, and also included in the Software DVD as an independent program.
Page 219 6. Select Compact DVR from the Device drop-down list. Type the host name, IP address, user name and password of the GV-Compact DVR V3. Modify the default VSS port 10000 if necessary. Figure 10-7 7. Click Save to establish connection.
Page 220: Remote Monitoring With E-Map
5. Right-click the created New Host in the Host View, and select Host Settings. This dialog box appears. Figure 10-8 6. Give the GV-Compact DVR V3 a location name, and type its IP address (or domain name). Keep the default VSS port as 10000, or modify it to match that of GV-Compact DVR V3.
Page 221 Download page. Install the E-Map program before you can run it. 4. On the Remote E-Map window, click the Login button and select the GV-Compact DVR V3 host to access its videos and I/O devices. The valid user name and password are required to log in the GV-Compact DVR V3.
Page 222: Chapter 11 Cms Configurations
Preference Settings button, select System Configure, click the Network tab, and select Accept connections from GV-Compact DVR, Video Server & IP Cam. Keep default port 5551, or modify it to match the Center V2 port on the GV-Compact DVR V3. Figure 11-2...
Page 223 For example, the alarm is triggered for 5 minutes and you set 10 minutes, which means the total display time will be 15 minutes. For details on how to mange the received video from the GV-Compact DVR V3, see GV- CMS Series User’s manual.
Page 224: Vsm
Connective Port, keep the default Port 2 value of 5609, or modify it to match the VSM port on the GV-Compact DVR V3. Figure 11-5 For details on how to mange the received video from the GV-Compact DVR V3, see GV- CMS Series User’s manual.
Page 225: Dispatch Server
To enable connecting to the GV-Compact DVR V3, click the Server Setting button on the toolbar, and enable Allow Video Server Login as Subscriber from Port. Keep the default port as 5551, or modify it to match the Center V2 port on the GV-Compact DVR Figure 11-7 For details on how to mange the received video from the GV-Compact DVR V3, see GV- CMS Series User’s manual.
Page 226: Control Center
The following illustration takes the eight-channel GV-Compact DVR V3 as the example. Figure 11-8 To create a host of the GV-Compact DVR V3, click the Host List button on the toolbar, right-click the Host List window and select Add Compact DVR. This dialog box appears.
Page 227 To run Matrix View, highlight a Group at the Control Center, and click the Matrix button For details on how to mange the received video from the GV-Compact DVR V3, see GV- CMS Series User’s manual.
Page 228: Chapter 12 The I/O Terminal Block
The I/O Terminal Block Chapter 12 The I/O Terminal Block The I/O terminal block, located on the rear panel, can be used to develop applications for alarm input and output, motion detection, PTZ control, GPS tracking or a variety of other functions.
Page 229: The Eight-Channel Unit
12.1.2 The Eight-Channel Unit Figure 12-2 Function Function Digital Output 1 Digital Output 7 Digital Input 1 Digital Input 7 Digital Output 2 Digital Output 8 Digital Input 2 Digital Input 8 Digital Output 3 DC 12V Out for camera power supply Digital Input 3 Ground Digital Output 4...
Page 230: Output Devices
0.3A 125V AC, Maximum load of voltage 10A 125V AC, 1A 30V DC 5A 100V DC To connect the GV-Relay V2 to the GV-Compact DVR V3, refer to the figure and table below. Figure 12-3 GV-Relay V2 Terminal Block DO 1...
Page 231: The Eight-Channel Unit
12.2.2 The Eight-Channel Unit The digital outputs on the terminal block can only drive a maximum load of 0.15A DC. Working in conjunction with the GV-Relay V2, which is an optional product, the GV-Compact DVR V3 can drive heavier loads.
Page 232 The I/O Terminal Block The eight-channel GV-Compact DVR V3 can connect to up to two GV-Relay V2 modules. To connect the GV-Relay V2 modules to the GV-Compact DVR V3, refer to the figure and table below. Figure 12-4 GV-Relay V2 with 1...
Page 233: Camera Power Supply
12.3 Camera Power Supply 12.3.1 The Four-Channel Unit The cameras can be powered through GV-Compact DVR V3. Using the supplied Camera Power Cable, connect the black wire to Pin 10 and the red wire to Pin 11. Figure 12-5 Terminal Block...
Page 234: The Eight-Channel Unit
The I/O Terminal Block 12.3.2 The Eight-Channel Unit The cameras can be powered through GV-Compact DVR V3. Using the two supplied Camera Power Cables, connect the black wire to any of Pin 18 and Pin 20, and the red wire any of Pin 17 and Pin 19.
Page 235: Specifications: The Four-Channel Unit
Specifications: The Four-Channel Unit Video GV-LX4C3V Model GV-LX4C3D1 GV-LX4C3D2 GV-LX4C3D2W (ACC Model) Video Standard NTSC, PAL Video Input/Output 4 Videos In, 4 Loops Out Dual streams from H.264 and MJPEG Compression (H.264 for the main stream; MJPEG for the sub stream) 30 fps/ch at resolution of 704 x 480 (NTSC) Frame Rate 25 fps/ch at resolution of 704 x 576 (PAL)
Page 236 Specifications: The Four-Channel Unit Management GV-LX4C3V Model GV-LX4C3D1 GV-LX4C3D2 GV-LX4C3D2W (ACC Model) Trigger Time, Sensor Input Triggered, Motion Detected • Store video to HDD (AVI format) • Event Send e-mails with captured images • Management Action Upload captured images to FTP Server •...
Page 237: External Interface
External Interface GV-LX4C3V Model GV-LX4C3D1 GV-LX4C3D2 GV-LX4C3D2W (ACC Model) D-Type, DB 15 connector (4 Videos In, 4 Audios In) Audio/Video Input D-Type, DB 15 connector (1 TV Out, 1 Spot Out, 1 VGA Out, 1 Audio Out, Audio/Video Output 4 Video Loops Out) Sensor Input 4 inputs on terminal block 4 outputs on terminal block...
Page 238 2 external USB HDDs DVD-RW DVD-RW N/A (already DVD-RW DVD-RW Backup backup backup equipped) backup Note: An HDD converter is required from GeoVision for 2.5" HDD. Regulatory Regulatory CE, FCC, C-Tick, RoHS compliant All specifications are subject to change without notice.
Page 239: Specifications: The Eight-Channel Unit
Specifications: The Eight-Channel Unit Video GV-LX8CV1 GV-LX8CV2 Model GV-LX8CD1 GV-LX8CD2 GV-LX8CD2W (ACC Model) (ACC Model) Video Standard NTSC, PAL Video Input/Output 8 Videos In, 8 Loops Out Compression H.264 30 fps/ch at resolution of 704 x 480 (NTSC) Frame Rate 25 fps/ch at resolution of 704 x 576 (PAL) 704 x 480, 704 x 480 De-interlace, 352 x 240 NTSC...
Page 240 1 SATA HDD 1 SATA HDD 2 SATA HDD 3.5" USB HDDs 4 external USB HDDs DVD-RW DVD-RW N/A (already DVD-RW DVD-RW DVD-RW Backup backup backup equipped) backup backup Note: An HDD converter is required from GeoVision for 2.5" HDD.
Page 241 Network GV-LX8CV1 GV-LX8CV2 Model GV-LX8CD1 GV-LX8CD2 GV-LX8CD2W (ACC Model) (ACC Model) • 10/100/1000 Base-T Ethernet • Interface 802.11b/g/n Wireless LAN (optional) • Mobile broadband: UMTS, EDGE, etc. (optional) HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, Protocol 3GPP/ISMA, RTSP, SNMP, QoS (DSCP) Security IP address filtering External Interface...
Page 242 Specifications: The Eight-Channel Unit Environment GV-LX8CV1 GV-LX8CV2 Model GV-LX8CD1 GV-LX8CD2 GV-LX8CD2W (ACC Model) (ACC Model) Operation Temp. -20 ~ 50 °C / 4 ~ 122 °F Humidity 5 ~ 85% RH (non-condensing) Physical GV-LX8CV1 GV-LX8CV2 Model GV-LX8CD1 GV-LX8CD2 GV-LX8CD2W (ACC Model) (ACC Model) Dimensions 176 x 244 x 91 mm/...
Page 243: Appendix
Appendix A. Supported Wireless LAN USB Adaptor Vendor Model D-Link DWA-140 (H/W version B1), DWL-G122 (version C1) EDIMAX EW-7318Ug, EW-7718Un Linksys WUSB54GC, WUSB600 (version 1) Pegatron WL-166N11 Note: Linksys WUSB54GC ver. 3 is not supported. B. Supported Mobile Broadband Device Vendor Model HUAWEI...
Page 244: Settings For Internet Explore 8
Appendix C. Settings for Internet Explore 8 If you use Internet Explorer 8, it is required to complete the following setting. 1. Set the Security to Medium-high (default). 2. Enable Allow previously unused ActiveX controls to run without prompt. 3. Disable Only allow approved domains to use ActiveX without prompt.
Page 245: The Cgi Command
D. The CGI Command The GV-Compact DVR V3 supports a CGI command function for obtaining a snapshot of the live view without logging in the Web interface. For a GV-Compact DVR V3 with the following details: IP address: 192.168.2.109 Username: admin...
Page 246: The Rtsp Command
Appendix E. The RTSP Command The GV-Compact DVR V3 can support RTSP protocol for both video and audio streaming. For the RTSP command, enter: rtsp://<IP of the GV-Compact DVR V3:8554/<CH No.>.sdp For example, rtsp://192.168.3.111:8554/CH001.sdp Note: The RTSP server must be enabled on the Web interface. See 6.3.9 RTSP/ 3GPP.
Page 247: Supported Ptz Cameras
F. Supported PTZ Cameras The following table shows the supported PTZ cameras listed on the OSD or the Web interface. Model Name 360 vision (ViD-18COP04) Pelco P AcutVista_SSD-7971D Ademco (Jupiter) Bosch (TC700 / 8560) Bosch_G3 Canon (VCC4 / VCC5i) CBC (GANZ) (ZC-S120 Series) Chiper (CPT-V9KRV) COP (15-CD53W) –...
Page 248 Appendix KenKo (DMP23-H1) LG (LPT-OS553HQ) Lilin (PIH) – MLP1 Lilin (PIH-7625) – MLP1 Lilin (PIH-820) – MLP1 MESSOA (D-700 series) MESSOA (SDS600 series) Minking Dome Mintron (54G2AHN / P) NanWang (NVD 2300PNT) NanWangV4.1 (NVD 2300PNT) Panasonic (WV-CS850) Panasonic (WV-CW960) Pelco (Spectra III) Pelco Dome PelcoSpetra Mini Dome ( SD4-WO) Pishion (22X)
Page 249: Running Ifs Driver Under 32-Bit Windows 7
G. Running IFS Driver under 32-bit Windows 7 1. Download IFS Driver from the GeoVision website: http://www.geovision.com.tw/english/5_5.asp 2. Open the zipped file, double-click Ex2IFS_1_11a.exe and extract all the files. 3. Right-click the Ext2IFS_1_11a.exe and select Troubleshoot compatibility.
Page 250 Appendix 4. This dialog box appears. Select Try recommended settings or Troubleshoot program. Try recommended settings: Select this option and it will run and fix the incompatible issue automatically. Troubleshoot program: A. Select this option. This dialog box appears. B. Select The program worked in earlier versions of Windows but won’t install or run now.
Page 251 C. Select the version of Windows this program worked on before. Click Next. After the settings, you should be able to run IFS Driver under 32-bit Windows 7.
Page 252: Default Port Value
Appendix H. Default Port Value HTTP Port Video Streaming Port 10000 E-mail Server FTP Server Center V2 5551 5609 GV-GIS 3356 ViewLog Server 5552 RTSP/TCP Port 8554 RTP/UDP Port 17300-17319...
