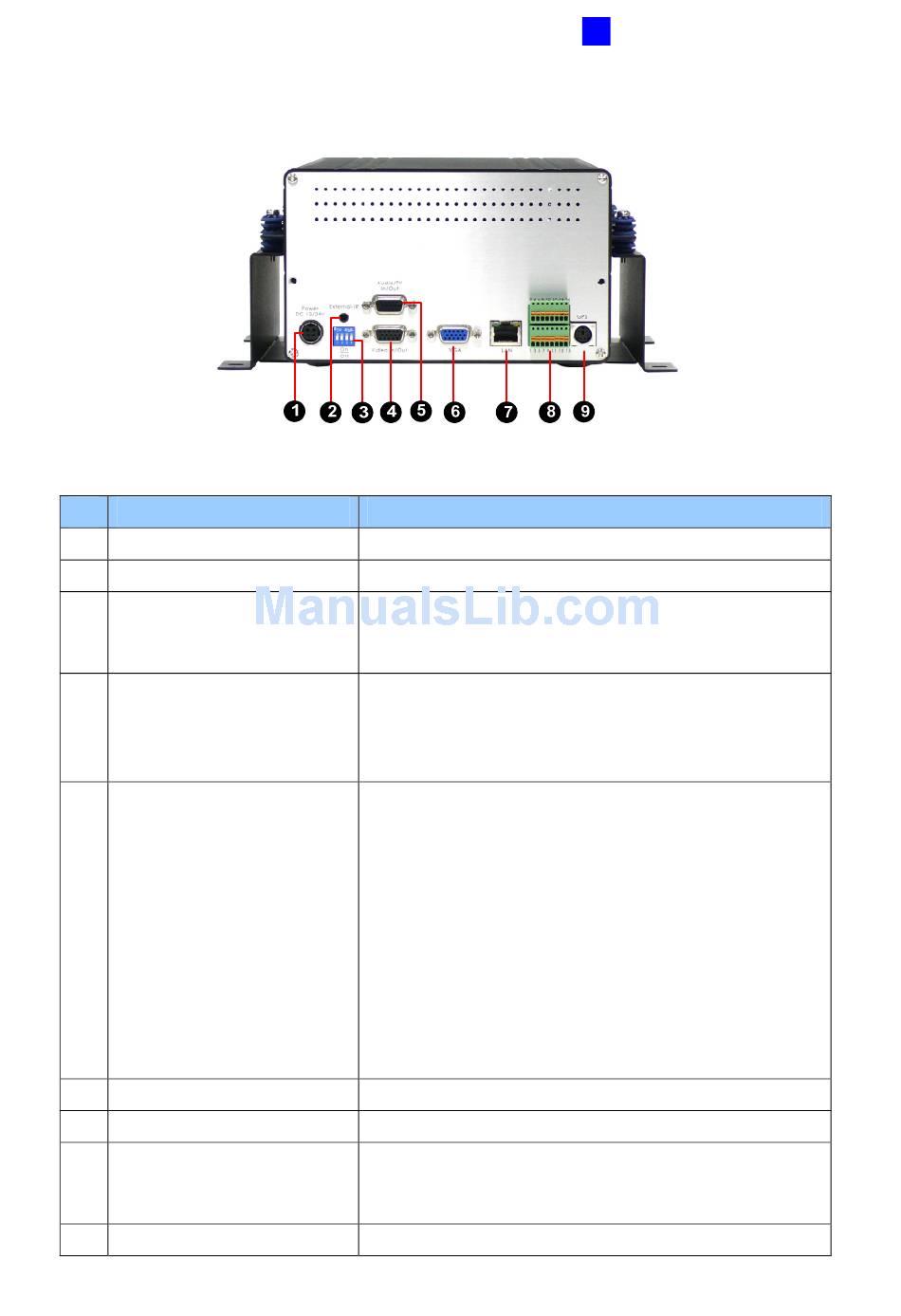

2.2.2 Anti-Vibration Model of ACC Version

No. Name
1 DC Power Input (12V)
2 External IR Receiver Port
75 Ω
3
4 Video In/Out
5 Audio/TV In/Out
6 VGA Monitor Port
7 LAN Port
8 I/O Terminal Block
9 GPS Port (PS/2 Connector)
Figure 2-4
Description
Connects to power supply.
Connects to the optional External IR Receiver.
When using the Loop function, turn the switches to OFF
positions. The switch number is corresponding to the
channel number. The default setting is ON.
•
Inputs (4 Blue Connectors/CH1-4): Connects to
cameras.
•
Outputs (4 Black Connectors/CH1-4): Loops out
each camera input to monitors.
•
TV Output (1 Black Connector/QUAD): Connects
to a TV monitor.
•
Spot Monitor Output (1 Black Connector/MUX):
Connects to a spot monitor to display video
sequentially from each video input.
•
Audio Inputs (4 White Connectors/MIC1-4):
Connects to microphones.
•
Audio Output for playback (1 Red Connector/
SPK-OUT): Connects to speakers. Note the audio
output only works during playback or when
receiving callback audio.
Connects to a PC monitor.
Connects to the network.
Connects to input and output devices, PTZ cameras
and etc. For details see Chapter 12 The I/O Terminal
Block.
Connects to a GPS 232 receiver.
Physical Description
