GV-HOT SWAP DVR SYSTEM V2
(H Series)
GV-2016H V2 / 2008H V2 / 1480H V2 /
1240H V2 / 1120H V2
• Powered by Intel® Core™2 Duo
• New rear panel design
• Dual Gigabit LAN ports
• 2 /4 / 6 / 8 /10 hot-swappable SATA HDD for data storage
• RAID data protection (optional) only for 8 & 10 bay
• Maximum storage capacity of more than 7.5 terabytes
• Operates on Windows XP Embedded
• GV-Keyboard and GV-IR Remote Control included
• Built-in 4 Inputs and 4 Outputs *
• Available in 14 languages
• Complete product information and testing reference
• FCC/CE/RoHS/WEEE certification
• Global warranty
* Not available for the 2-bay model
H series Datasheet
1 Update: September 29, 2007

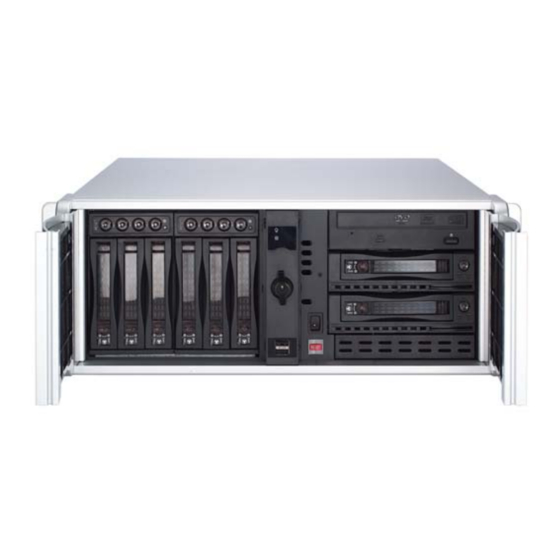

The GV-Hot Swap DVR System V2 features a powerful data storage capacity. It comes with a selection of 2, 4,
6, 8 or 10 bays via hot-swappable SATA mobile racks. Depending on HDD size, the GV-Hot Swap DVR
System V2 can reach the maximum storage capacity of 7.5 terabytes. Support for hot-swapping makes data
storage and management more convenient.
GeoVision Surveillance System empowers the GV-Hot Swap DVR System V2 with a maximum of 16 audio
and video channels, and a recording rate of up to 480 FPS (NTSC) / 400 FPS (PAL). GeoVision's new
compression formats deliver superior video transmission and quality. The remote access and control of the
system is made possible by its networking capability. In addition, compatibility with other GeoVision
accessories can cater to any kind of needs or budget.
Package
1. GV-Hot Swap DVR System V2 x 1
2. D-Type Video Cable x 2 *
(1 x 1-8 Channels Black Cable, 1 x 9-16 Channels Blue Cable)
3. D-Type Audio Cable x 2
(1 x 1-8 Channels Red Cable, 1 x 9-16 Channels Red Cable)
4. AC Power Cord x 1
5. RJ-11 to DB9 Cable x 1
6. Lock Key x 2
7. GV-Keyboard Package x1
8. IR Remote Control Package x 1
9. Self-Stick Rubber Pad x 4
10. Recovery DVD x 1
11. Nero Express CD x 1
12. Surveillance System Software CD x 1
13. GV-Hot Swap DVR System V2 User's Manual x 1
14. GV-Hot Swap DVR System V2 Quick Start Guide x 1
15. Surveillance System New Feature Guide x 1
16. Surveillance System Installation Guide x 1
* Available for the 2-bay model.
