3.3 Connecting Anti-Vibration Model of ACC Version

You need to connect the Anti-Vibration Model of ACC Version to the ACC wire and power wire
on the vehicle. Before real deployment, it is suggested to test connection to the ACC wire and
set up the unit..

3.3.1 Testing Connection

Before you connect the Anti-Vibration model of ACC version to the vehicle, it is recommended
to test and set up the unit first by using the supplied Shorting Cable. The Shorting Cable is
designed to simulate the ACC wiring between the unit and the vehicle. For the testing, you
need to prepare a power adaptor of DC 12V, 5.0A to power on the unit. Follow the steps
below.
Items required for testing:
Supplied Shorting Cable
Power Adaptor of DC 12V, 5.0A (which can be purchased from GeoVision)

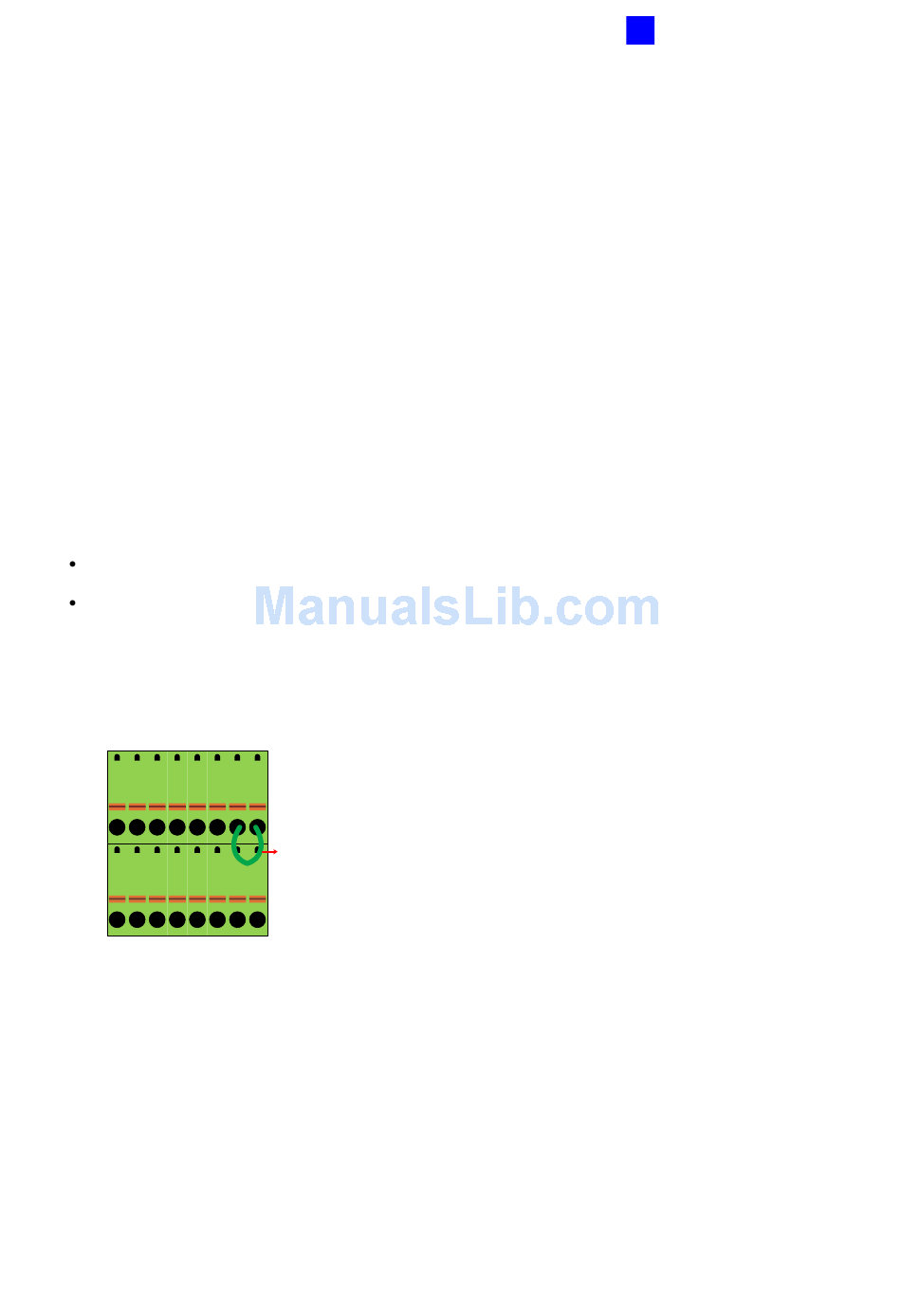

1. Connect one end of the Shorting Cable to Pin 14 of the terminal block and the other end to
Pin 16 of the terminal block on the GV-Compact DVR V2.
2 4 6 8 10 12 14
1 3 5 7 9 11 13
Terminal Block
Figure 3-3
2. Power on the unit by using a power adaptor. The unit automatically starts after powering
up for 5 seconds.
3. Set up the settings of the GV-Compact DVR V2, such as storage, images, recording and
etc through its OSD or Web interface. See 3.7 Formatting Hard Drive and 3.9 Basic
Operation.
4. Remove the power adaptor. The unit turns off immediately after powering off.
16
Shorting Cable
15
