Chapter 12 The I/O Terminal Block

The 16-pin terminal block, located on the rear panel, provides the interface to: four digital
inputs, four relay outputs, one RS-485 interface, one RS-232 interface and auxiliary power.
The I/O terminal block can be used to develop applications for motion detection, PTZ control,
GPS tracking or a variety of other functions.

12.1 Pin Assignment

The pin assignments for the terminal block are described in the table below.
Pin Function
1 Relay Output 1
2 Digital Input 1
3 Relay Output 2
4 Digital Input 2
5 Relay Output 3
6 Digital Input 3
7 Relay Output 4
8 Digital Input 4

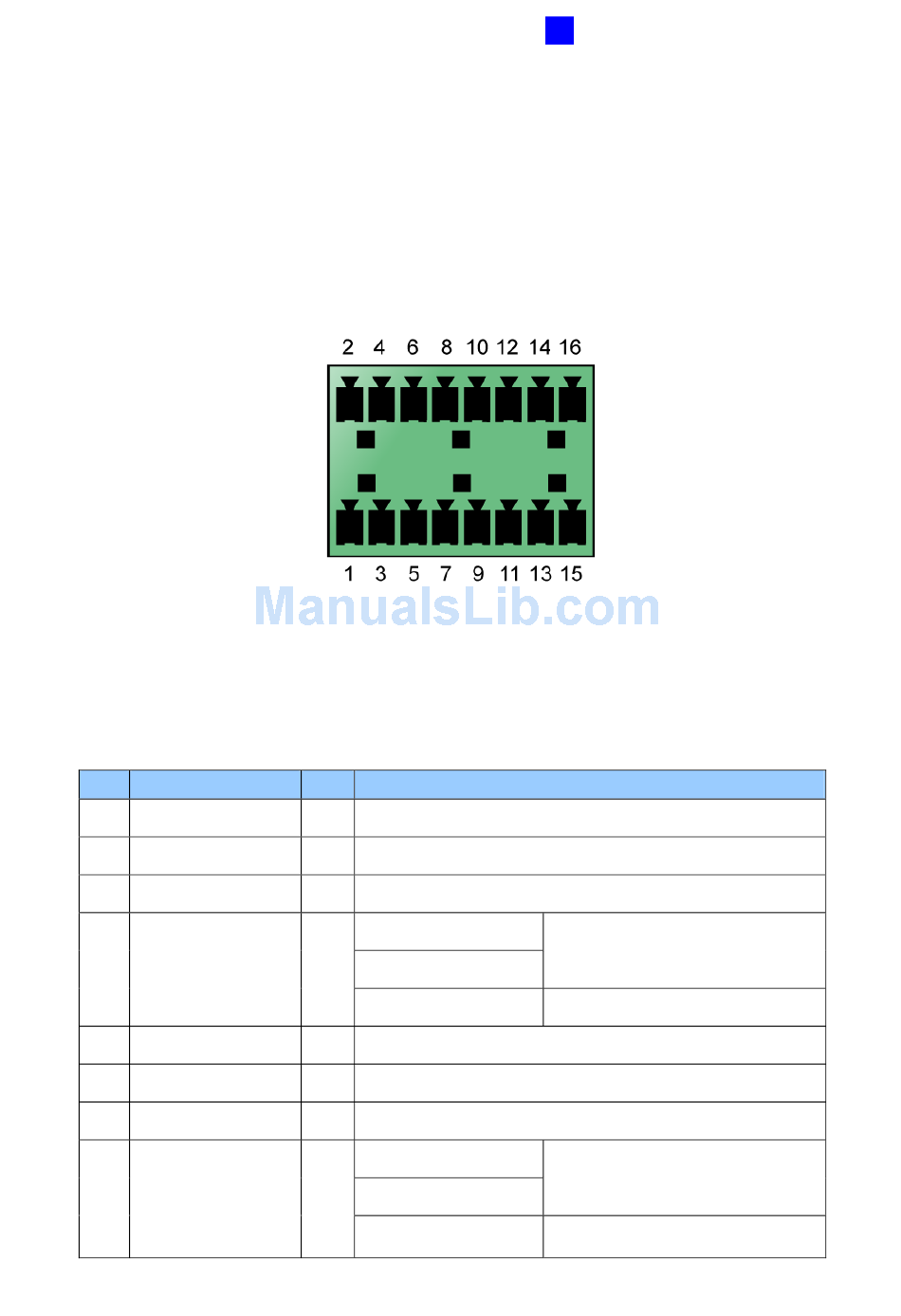

Figure 12-1
Pin
9 Relay COM
10 Ground
11 DC 12V Out for camera power supply
Standard
12 Anti-Vibration
Anti-Vibration ACC
13 RS-485 + for PTZ control
14 RS-232 RX for GPS tracking
15 RS-485 – for PTZ control
Standard
Anti-Vibration
16
Anti-Vibration ACC
The I/O Terminal Block
12
Function
RS-232 TX for GPS tracking
N/A
DC 5V Out for GPS module
ACC wire connection
