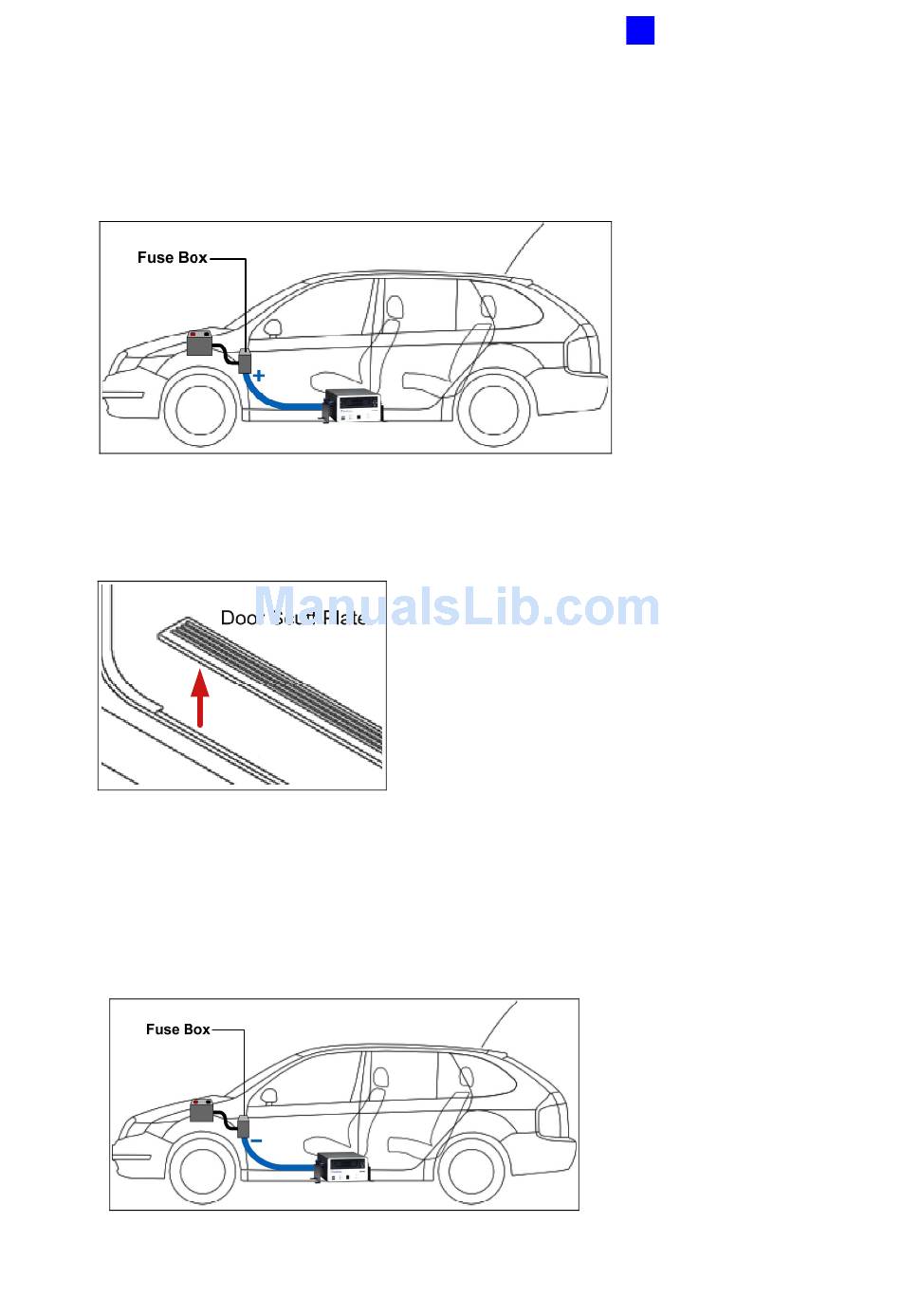

1. Using the fuse specification diagram, locate the power cable connecting to the fuse box
and connect the white power wire of the GV-Compact DVR V2 to the positive voltage of
the power cable. You may need to use a voltmeter to determine which one is the positive
voltage.
2. Remove the car door scuff plate and wire the power cable along the driver's door toward
the back seat.
Figure 3-11
3. Use one of the two methods below to connect the black ground wire of the GV-Compact
DVR V2.
•
Method 1: Connect the black ground wire to the negative voltage of the power cable
from the fuse box.
Figure 3-10
Figure 3-12
