2.1.2 Anti-Vibration Model and Anti-Vibration Model of ACC
Version
No. Name
1 USB Port
2 System LED
3 IR Receiver
4 Reset Button
5 Default Button
6 Storage Removal Button
7 Key Lock
8 HDD Drive Bay
9 HDD Power LED
10 HDD Activity LED

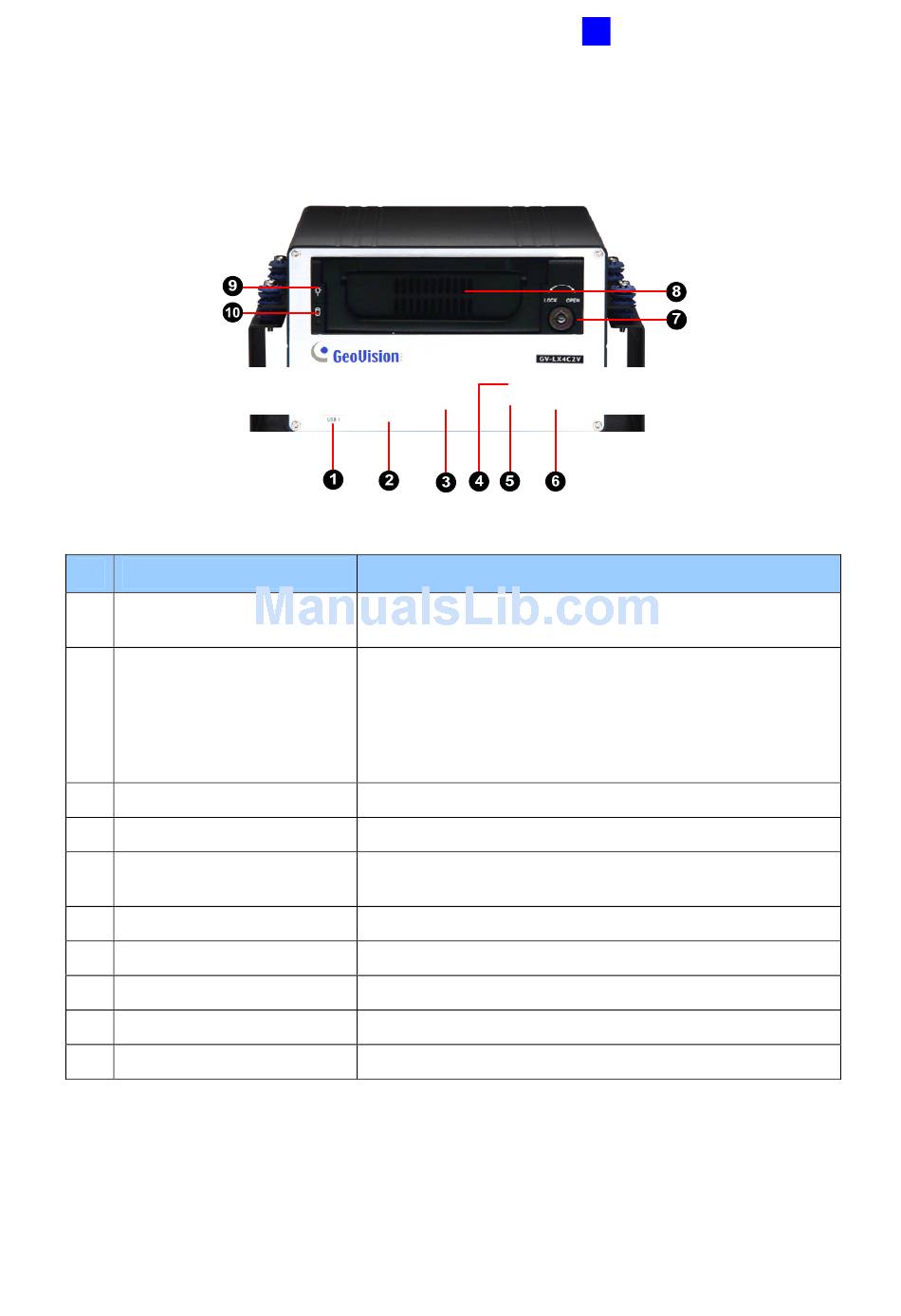

Figure 2-2
Description
The two USB ports can connect the USB storage device,
Wireless LAN adaptor and/or mobile Internet device.
•
Power LED: Turns on when the power is supplied.
•
Ready LED: Turns on when the unit is ready for use.
•
SATA LED: Turns on when the HDD is reading or
writing data.
•
Disk Full LED: Turns on when the HDD is full.
Receives data from the infrared remote control.
Restarts the unit, and keeps all current configurations.
Sets all configurations to their factory settings. See 8.4
Restoring to Factory Default Settings.
Stops recording and removes the HDD from the system.
Locks and unlocks the HDD drive bay.
Installs the SATA hard drive for recording.
Turns on when the power is supplied.
Blinks when the HDD is reading or writing data.
Physical Description
9
