Chapter 2 Physical Description

This section identifies the various components of the GV-Compact DVR V2, and provides the
overview of the remote control.

2.1 Front Panel

2.1.1 Standard Model

No. Name
1 USB Port
2 System LED
3 IR Receiver
4 Reset Button
5 Default Button
6 Storage Removal Button
7 HDD Drive Bay
8 HDD Power LED
9 Key Lock
10 HDD Activity LED
8

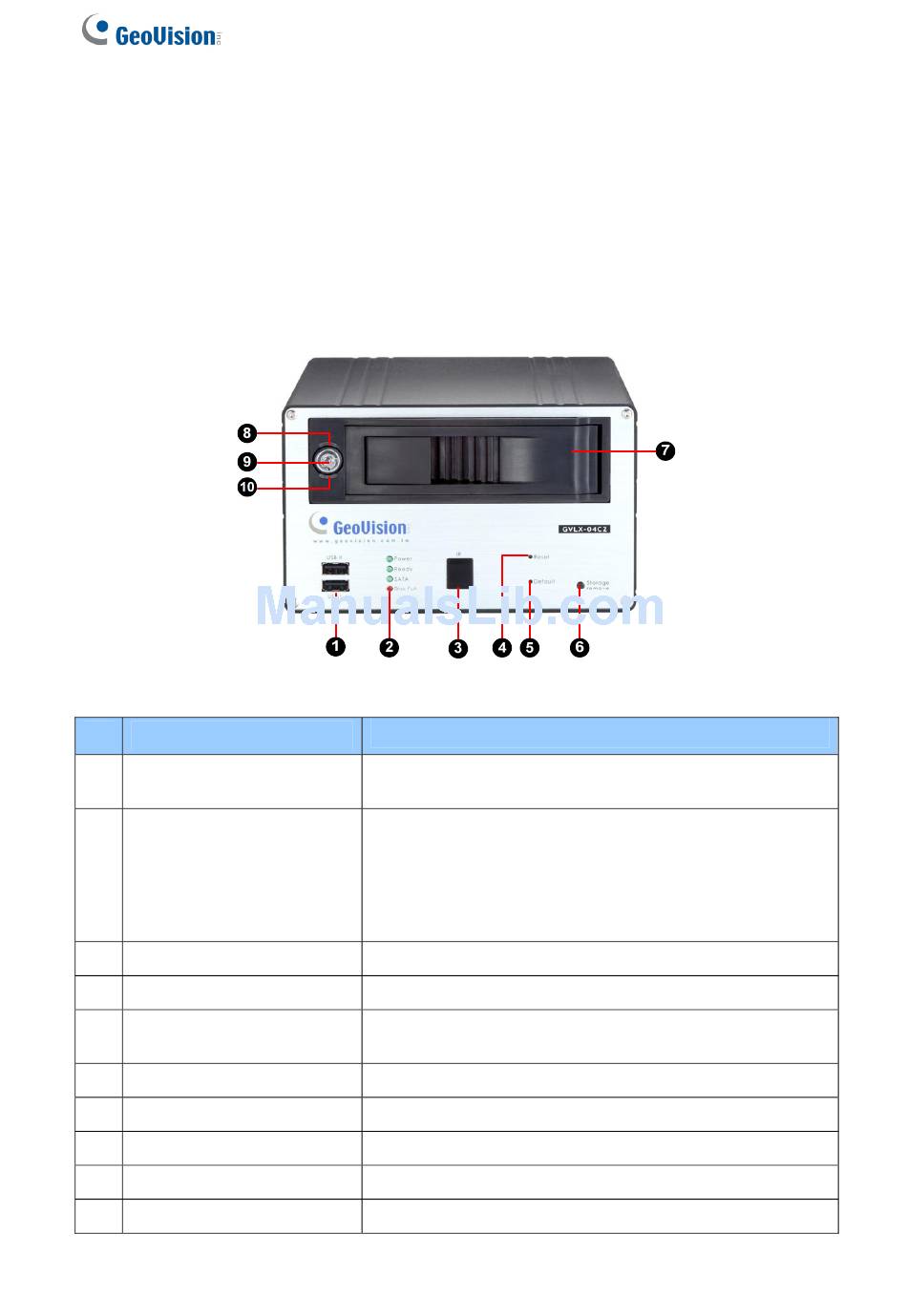

Figure 2-1
Description
The two USB ports can connect the USB storage device,
Wireless LAN adaptor and/or mobile Internet device.
•
Power LED: Turns on when the power is supplied.
•
Ready LED: Turns on when the unit is ready for use.
•
SATA LED: Turns on when the HDD is reading or
writing data.
•
Disk Full LED: Turns on when the HDD is full.
Receives data from the infrared remote control.
Restarts the unit, and keeps all current configurations.
Sets all configurations to their factory settings. See 8.4
Restoring to Factory Default Settings.
Stops recording and removes the HDD from the system.
Installs the SATA hard drive for recording.
Turns on when the power is supplied.
Locks and unlocks the HDD drive bay.
Blinks when the HDD is reading or writing data.
