Port Side View - Mercury MerCruiser D2.8L D-Tronic Service Manual

SERVICE MANUAL NUMBER 22

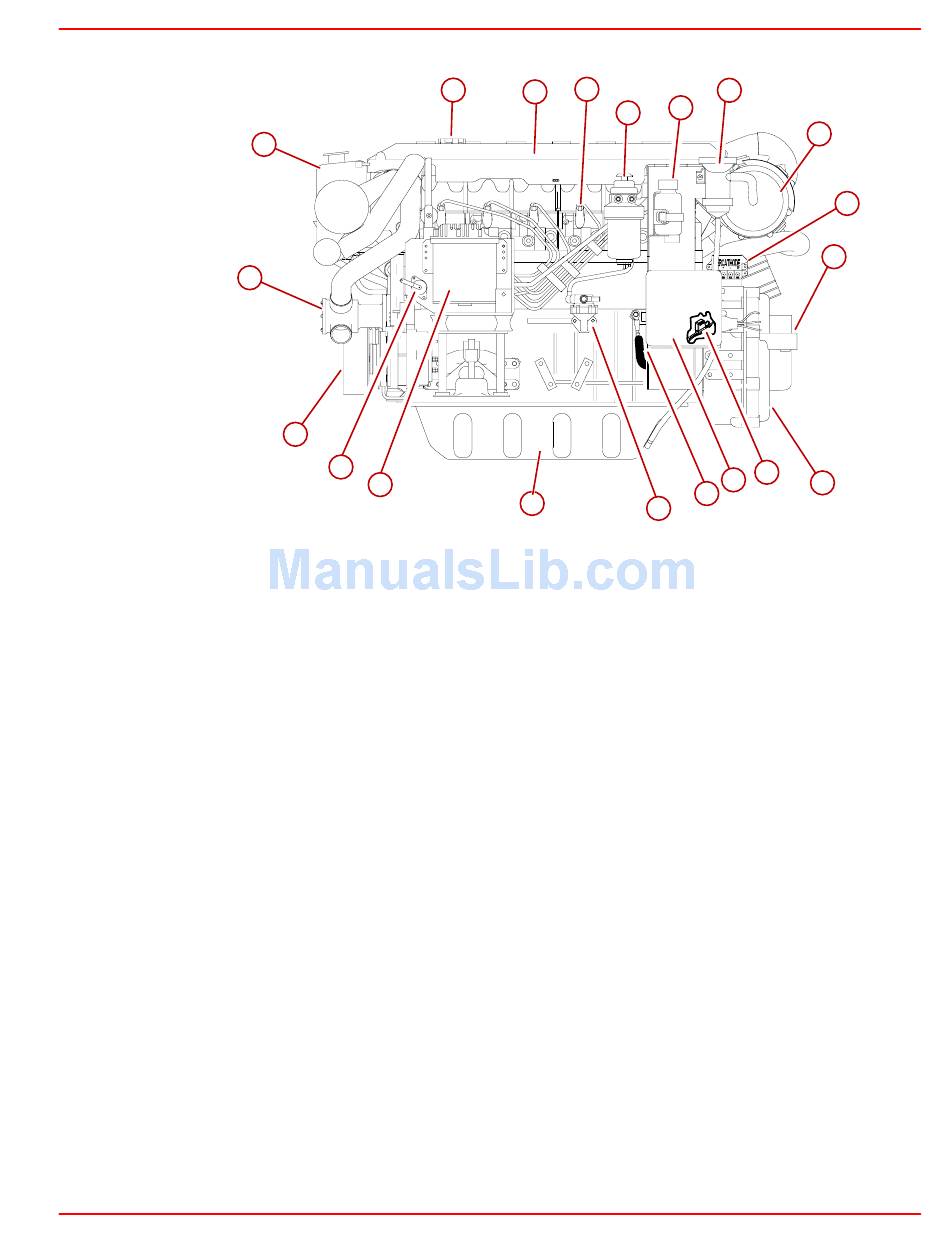

Port Side View

Typical In-Line D-Tronic Diesel
90-860074--1 FEBRUARY 2002
20
19
18
17
16
1 - Oil Fill Cap
2 - Engine Cover
3 - Fuel Injector
4 - Fuel Filter
5 - Gear Lube Monitor
6 - PCV / Oil Separator
7 - Air Filter
8 - MerCathode Controller
9 - Rear Engine Mount
10 - Flywheel Housing (Rear Portion)
11 - 5 Amp. ECM Fuse
12 - Electrical Box
13 - Engine Block Ground Stud
14 - Fuel Delivery Pump
15 - Oil Pan
16 - Engine Control Module (ECM)
17 - Throttle Position Sensor
18 - Vibration Damper And Crankshaft Pulley
19 - Seawater Pump
20 - Heat Exchanger
1 3
2
4
15
MAINTENANCE
6
5
7
9
11
12
10
13
14
8
75298
