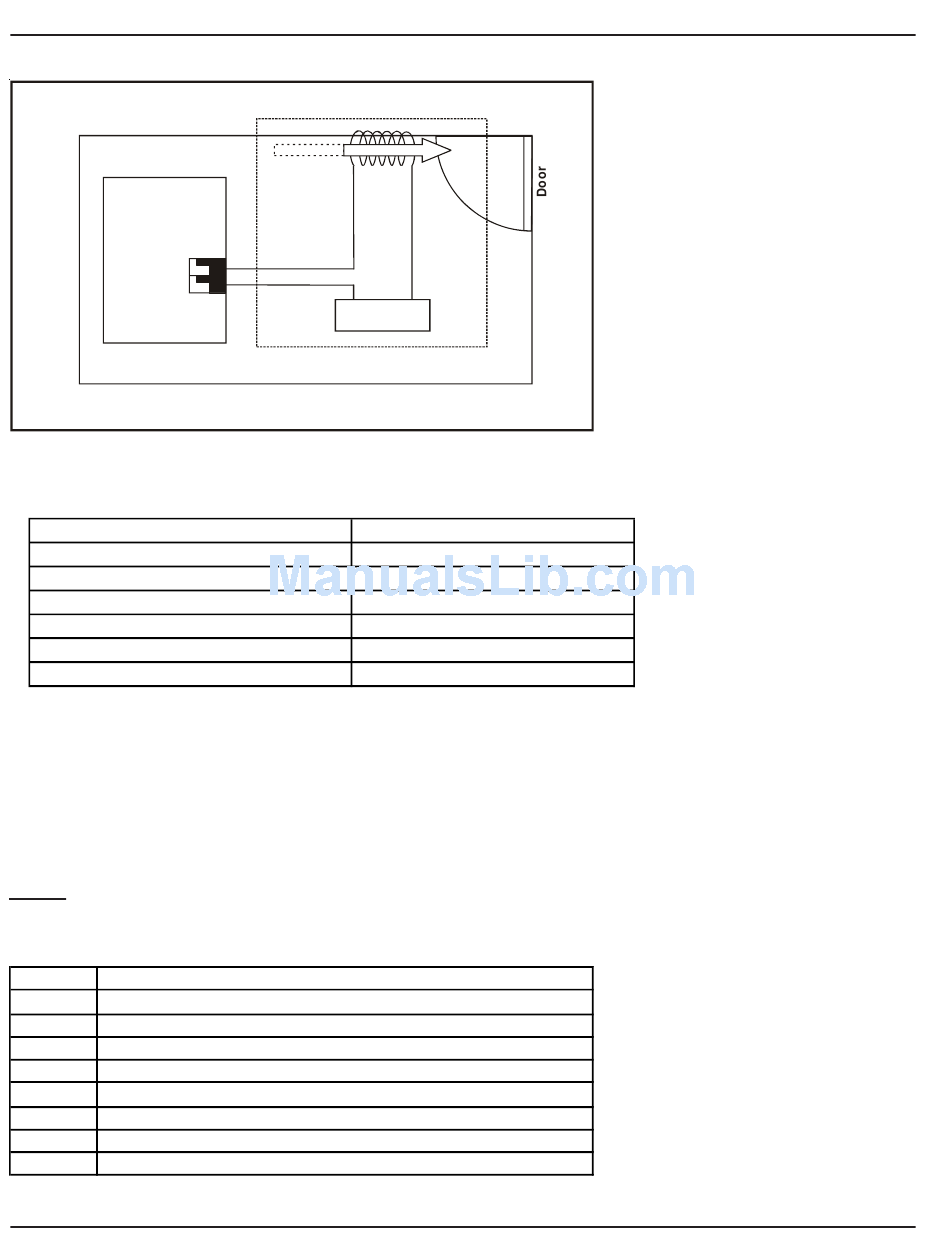

A door lock should be connected to the relay port as shown below:
Vision
Technical specifications of relay port:
• The external devices that can be operated by this relay port should conform to the specifications of it.
• The specifications of these relay ports are given below:
Contact arrangement
Contact Rating (Resistive load)
Maximum switching voltage
Operate time
Release time
Expected electrical life
Expected mechanical life
How to program?
Step 1: Program mode of operation of relay port using command 1801.
Step 2: Program 'ON' time in relay port table using command 1802.
Step 3: Program 'OFF' time in relay port table using command 1803.
Step 4: Program the relay port 'ON' duration timer using command 3036.
Step 5: Program the relay port 'OFF' duration timer using command 3037.
Step 6: Operate the relay if programmed for total or partial manual mode using command 3990 and 3991.
Step 1
Use following command to program the mode of the relay port:
1801-Mode
Where,
Mode Mode Type
0 Relay port deactivated
1 Total Manual
2 Duration based Auto OFF
3 Duration based Auto ON
4 Duration based Auto ON and Duration based Auto OFF
5 Time based Auto Off
6 Time based Auto On
7 Time based Total Auto
By default, Relay port is programmed for manual operation.
150
DC volta ge
Door lock Unit (Norma lly close)
House
1 Normally Open
24 VDC @2A, 120VAC @1.0A
120V AC, 60V DC
10 ms
10 ms
100,000 operations
10,000,000 operations
