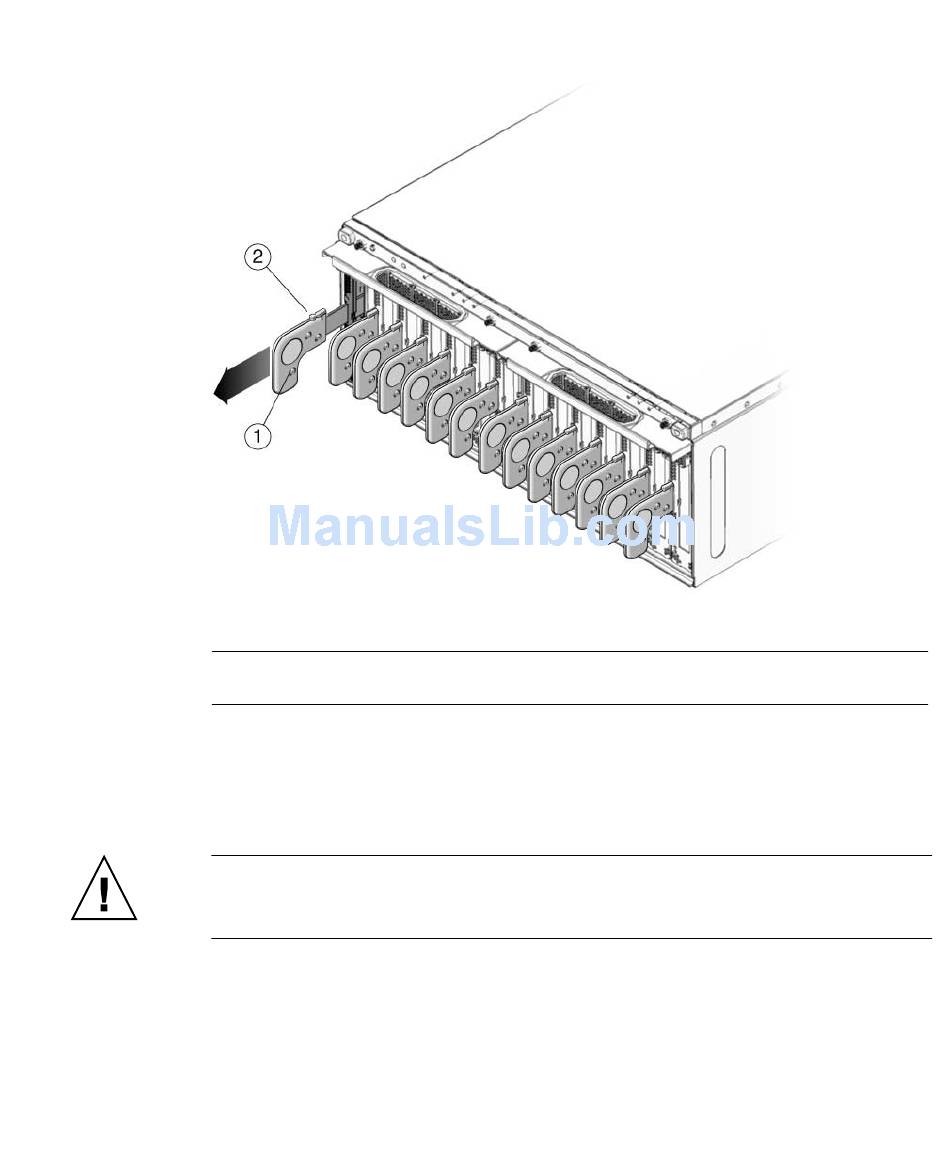

FIGURE 3-1
Figure Legend
1
2
4. Press lightly on the front of the carrier, and pull out the carrier handle until it
clicks into the open position (approximately 1.5 in./38 mm).
Pressing the front of the carrier prevents movement of the carrier when you pull
the carrier handle.
Caution – Pulling the carrier handle raises the carrier plate. If the carrier moves
forward before the carrier plate is completely raised, the plastic locator bar
(
FIGURE 3-2
3-2 External I/O Expansion Unit Installation and Service Manual for SPARC Enterprise T5xxx Servers • April 2011
Unlocking and Removing a Carrier
Carrier handle
Carrier locking screw
) might be damaged by hitting the lower front edge of the I/O boat.
