1.3.4.1

Using Card Locks With Tall PCI Cards

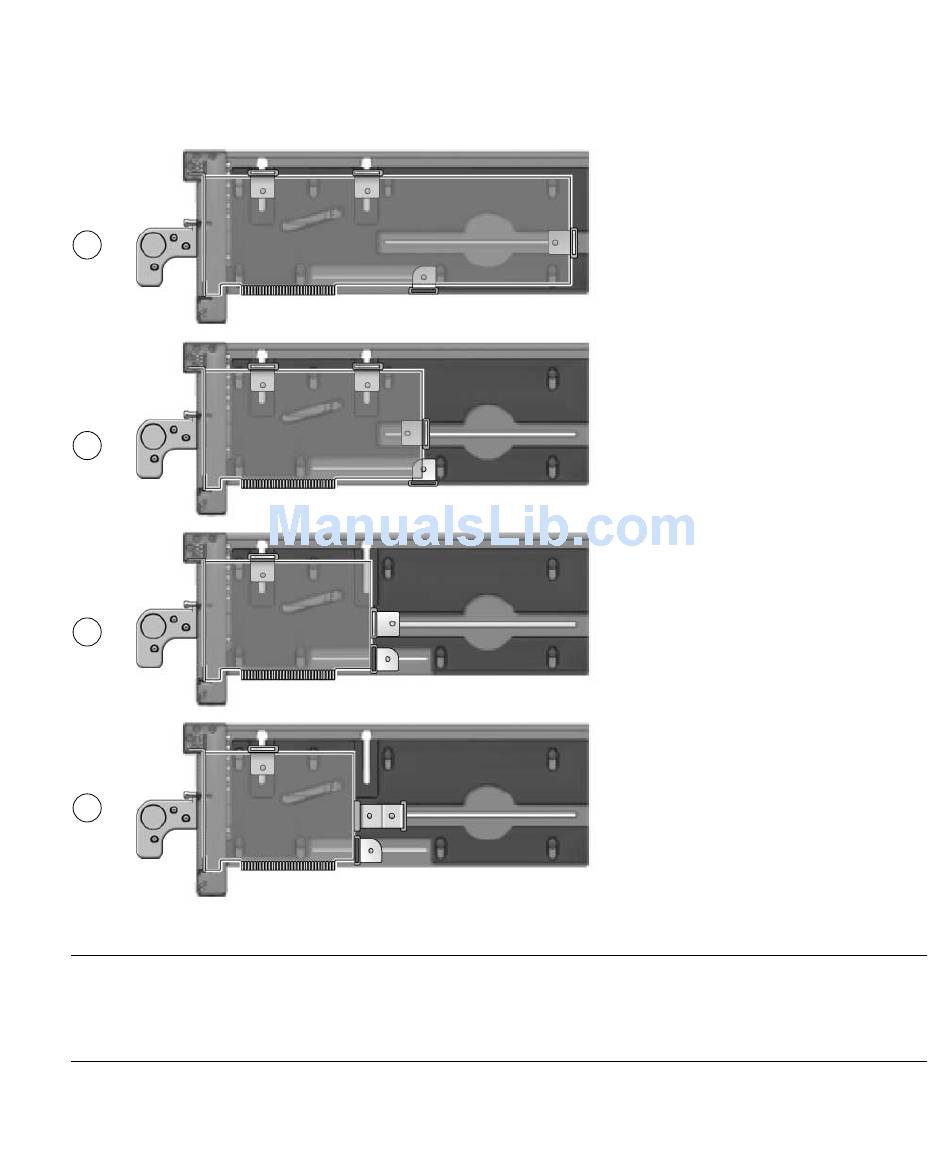

Lock Arrangements for Wide and Narrow PCI cards
FIGURE 1-18
1
2
3
4
Figure Legend
1 Tall and wide card
2 Tall and average width card
3 Tall and narrow card
4 Tall and very narrow card
1-24 External I/O Expansion Unit Installation and Service Manual for SPARC Enterprise T5xxx Servers • April 2011
2 type A on top, 1 type A on right, 1 type C on bottom of the PCI card
2 type A on top, 1 type A on right, 1 type C on bottom of the PCI card
1 type A on top, 1 type A on right, 1 type C on lower right side of the PCI card
1 type A on top, 1 type B on right, 1 type C on lower right side of the PCI card
