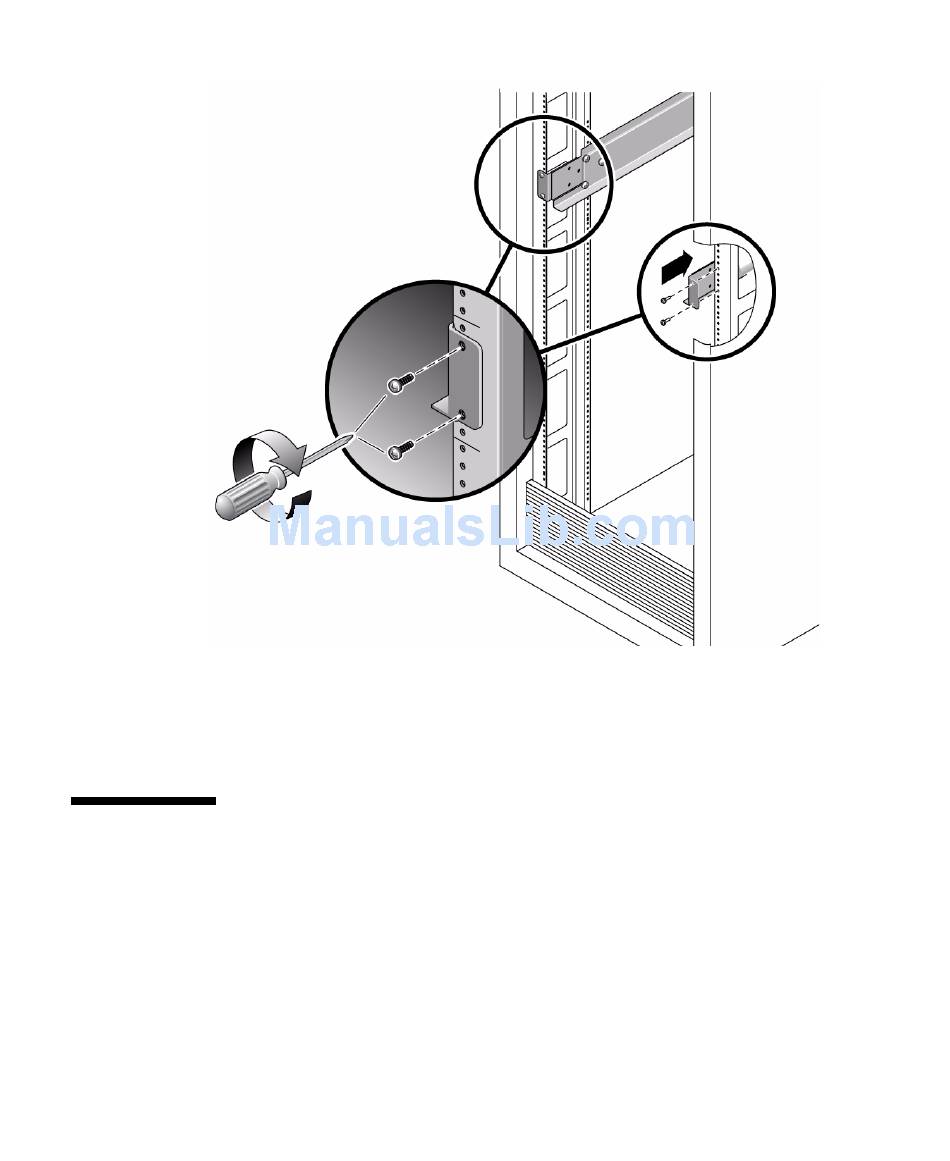

FIGURE 2-5
8. Tighten the screws at the front of the rack.
9. Verify that the brackets at the rear of the rack can still slide slightly to the left
and right.
2.3 Installing the External I/O Expansion
Unit in the Rack
1. Use an antistatic strap for this procedure.
2. Place the External I/O Expansion Unit on the front of the mounting brackets and
slide the External I/O Expansion Unit into the rack.
As you slide the External I/O Expansion Unit into the rack, the sides of the
External I/O Expansion Unit chassis push the ends of the brackets apart from each
other. When the chassis is almost completely in the rack, bulges on the underside
Installing the Mounting Brackets in a Rack
Chapter 2 Installing the External I/O Expansion Unit in a Rack 2-7
