1.3.2
Card Locks
A PCI card is attached to the carrier with screw-mounted locks or retainers
(
FIGURE 1-15
shifting or tilting. The PCI card must be securely mounted in order for the carrier to
correctly seat the PCI card in the card socket in the I/O boat.

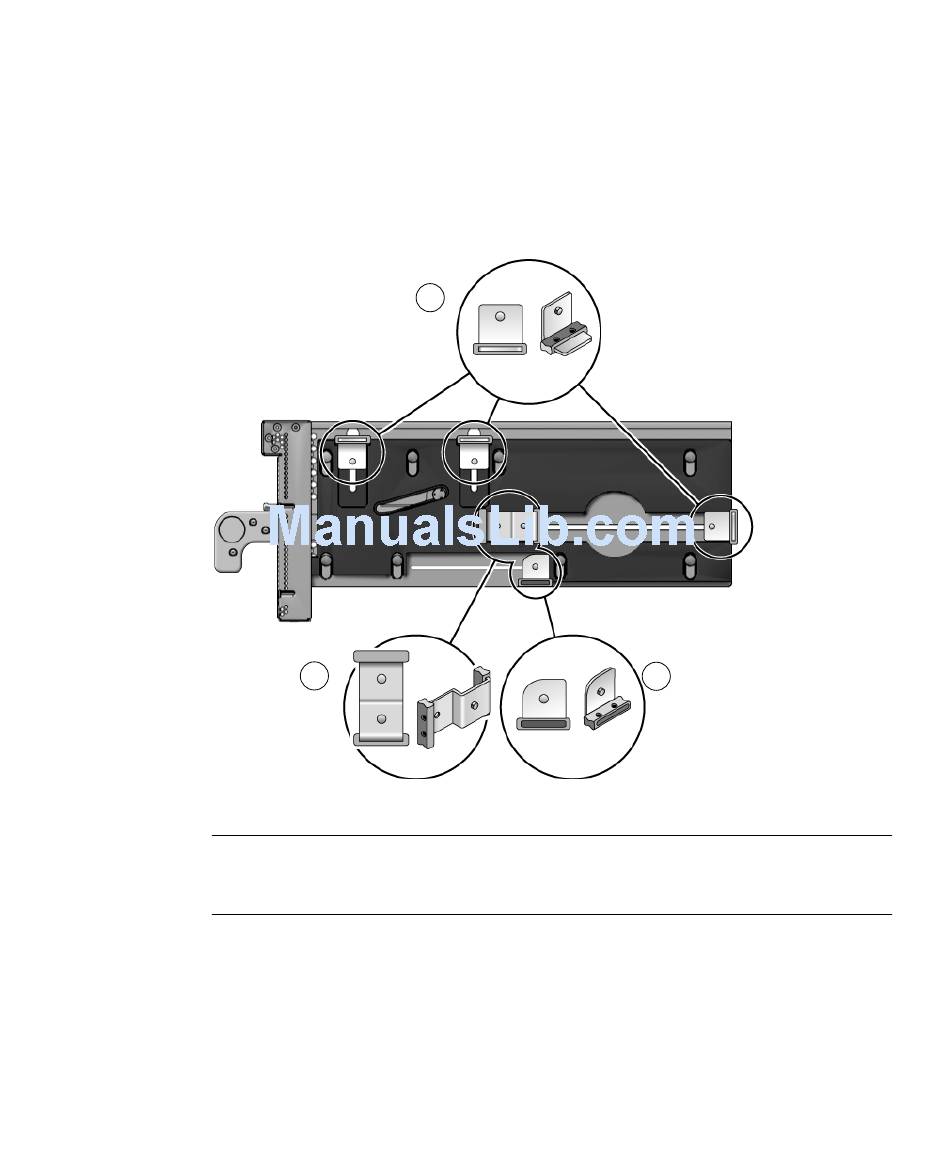

FIGURE 1-15
Figure Legend
1
2
3
). Card locks hold a PCI card to its carrier and prevent the PCI card from
Card Locks
1
2
Type A (Square). There are three of these.
Type B (S-shaped)
Type C (Small)
3
Chapter 1
Overview
1-19
