Internal RFI Gasket
An RFI gasket is located inside the carrier housing, next to the card alignment post.
(A smaller RFI gasket is located on the outside of the carrier housing.) When you
insert the PCI card into the carrier, be sure that the bottom of the metal card bracket
does not scrape or loosen the bottom of the gasket (
The gasket material is flexible enough that you might not notice that the bracket has
dislodged the gasket. Remember to inspect the condition of this gasket before you
install the carrier in the I/O boat.

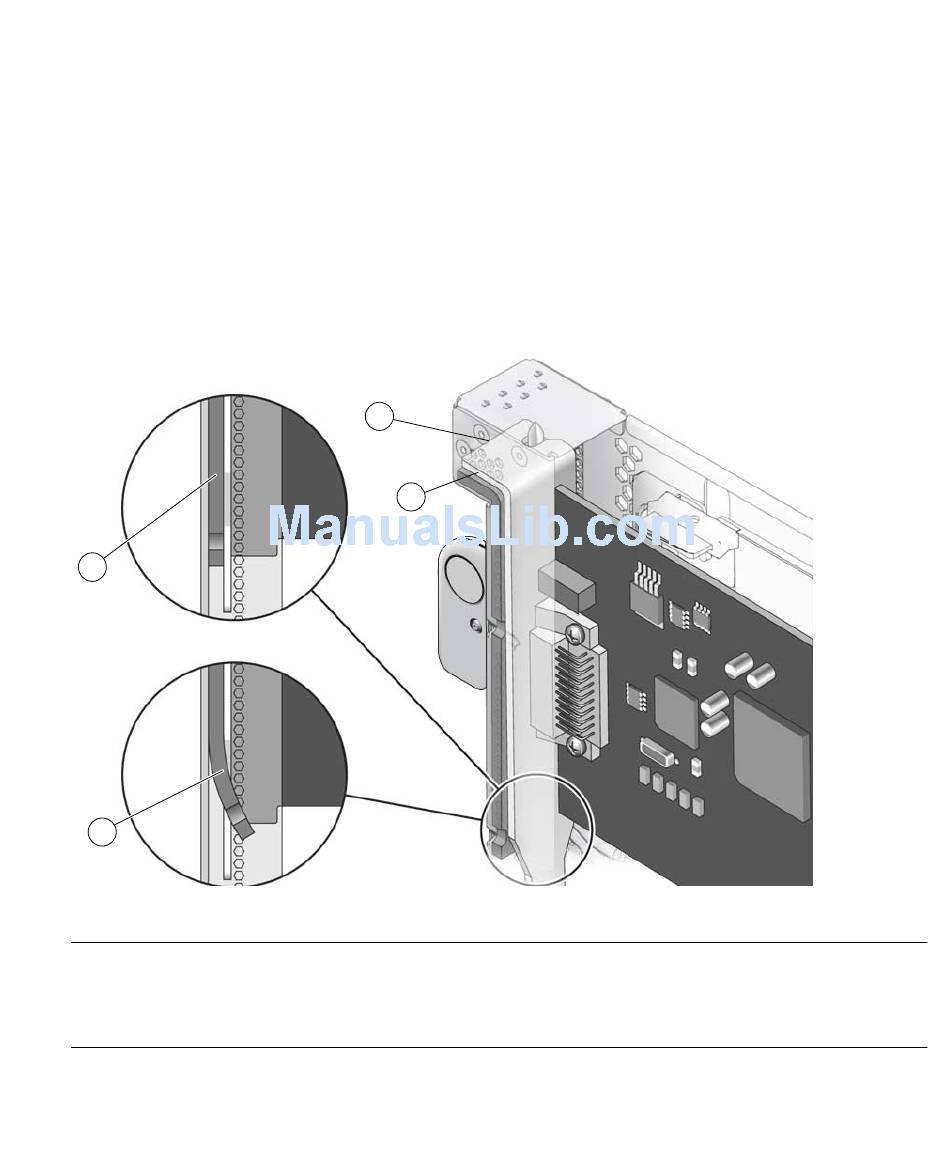

Internal RFI Gasket
FIGURE 1-24
3
4
Figure Legend
1 PCI card
2 RFI gasket (extends to the bottom front of the PCI carrier)
3 Correct example: the RFI gasket lies flat
4 Incorrect example: the card bracket has hooked behind the RFI gasket
1
2
).
FIGURE 1-24
Chapter 1 Overview 1-31
