1.2.2
Link Kit
One link kit (
A link kit includes two link cards. One link card goes into the host server. The other
link card goes into the I/O boat. The link cards are physically identical.
A low-profile bracket is included so a link card can be used in a low-profile I/O card
slot.
FIGURE 1-8
Slot 0 in each I/O boat is the dedicated link card slot. Use slot 0 only for the link
card.
1-12
External I/O Expansion Unit Installation and Service Manual for SPARC Enterprise T5xxx Servers • April 2011
) is required for each I/O boat.

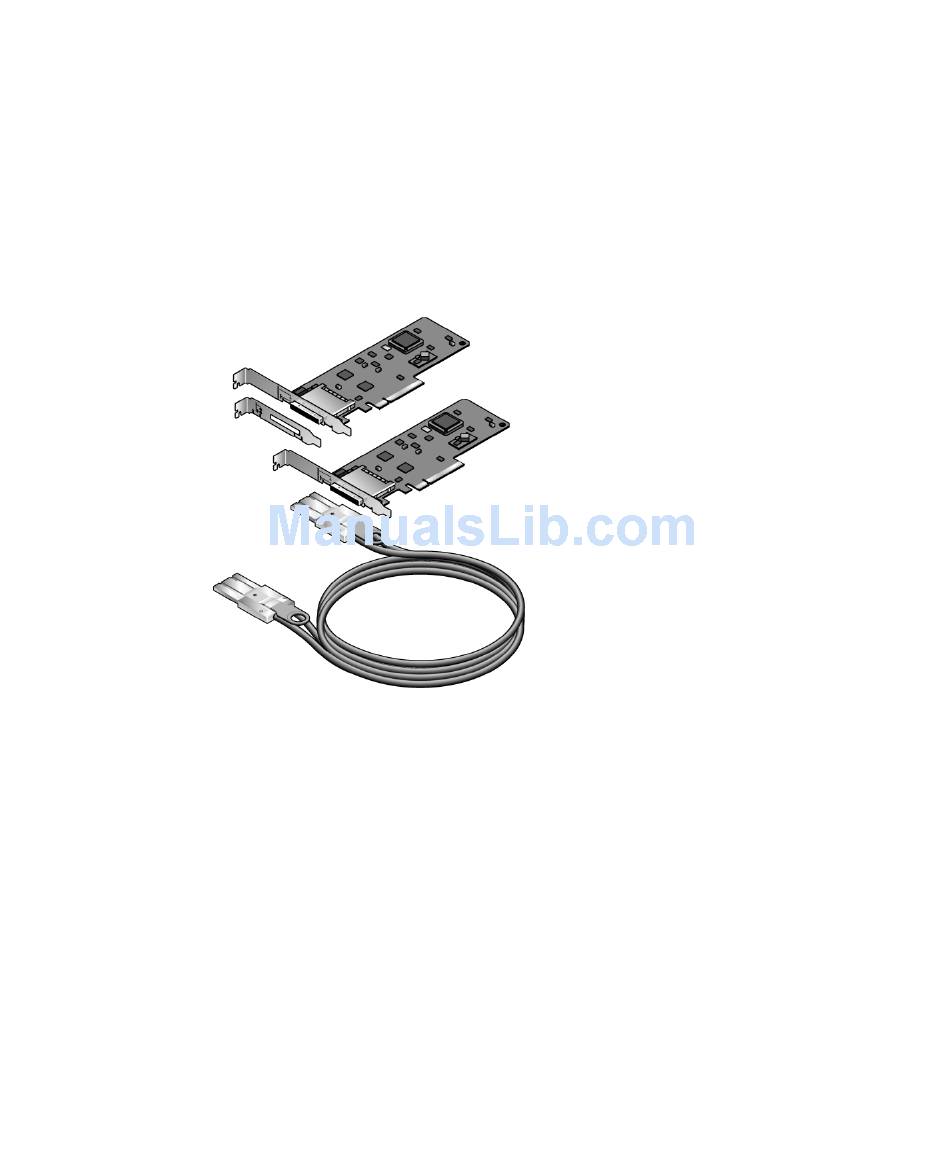

FIGURE 1-8
Link Kit
