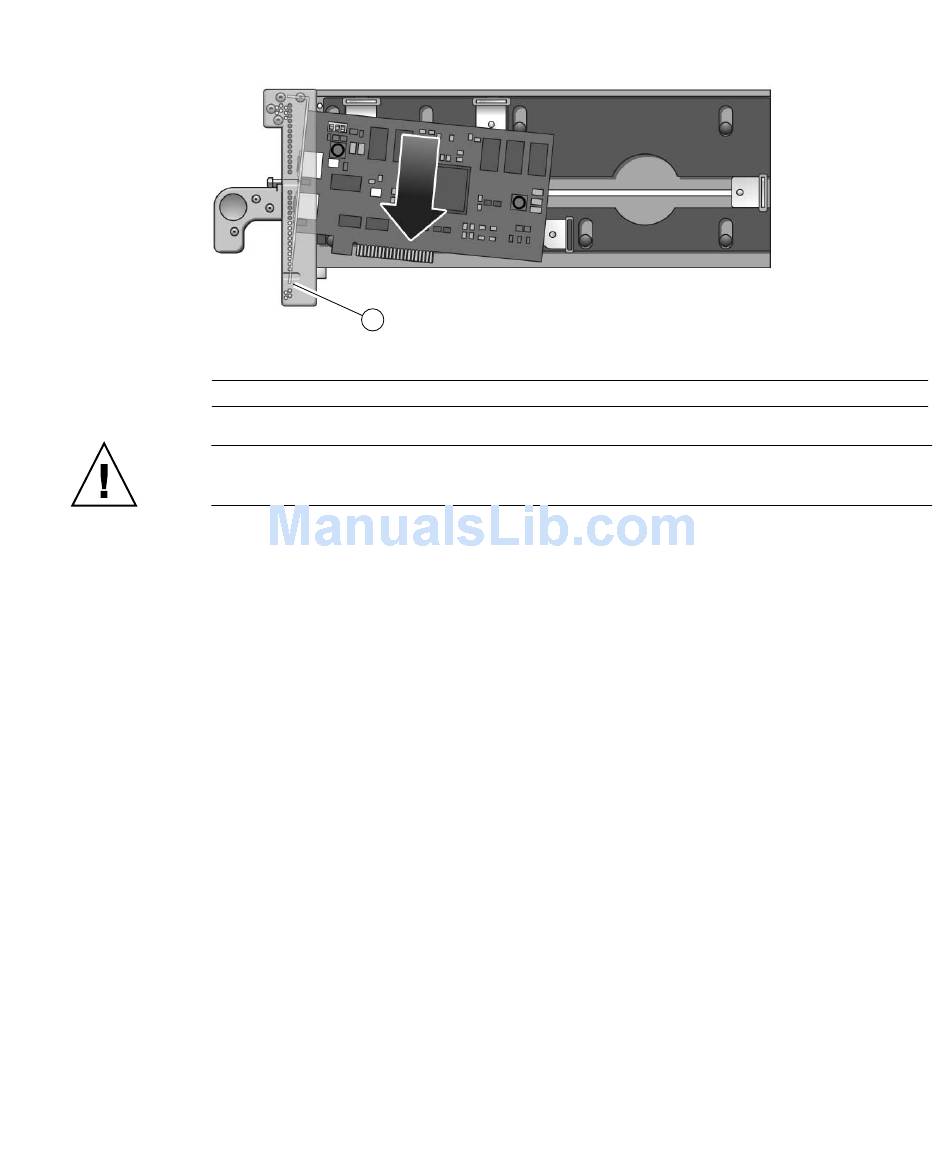

Inserting the PCI Card
FIGURE 3-5
1
Figure Legend
1 See the following caution.
Caution – Do not allow the bottom edge of the PCI card bracket to tear the RFI
gasket in the front of the carrier (
b. A rectangular notch is located on the bottom front of the PCI card. Fit the
notch over the card alignment tab (item 1 in
card bracket over the card alignment post (item 2 in
).
FIGURE 3-5
FIGURE 3-6
Chapter 3
), then fit the top of the
).
FIGURE 3-6
Working With PCI Cards 3-5
