3. Align the new EPROM chip's pins with the socket, taking care to orient
the notch in the chip with the notch in the socket.
4. Press the chip down until fully seated, taking care not to bend any of the
contact pins (see Figure 7–26).
5. Insert all remaining EPROMs.
Replacement
1. Re-install printer cover (see page 7–4).
Removal and Replacement

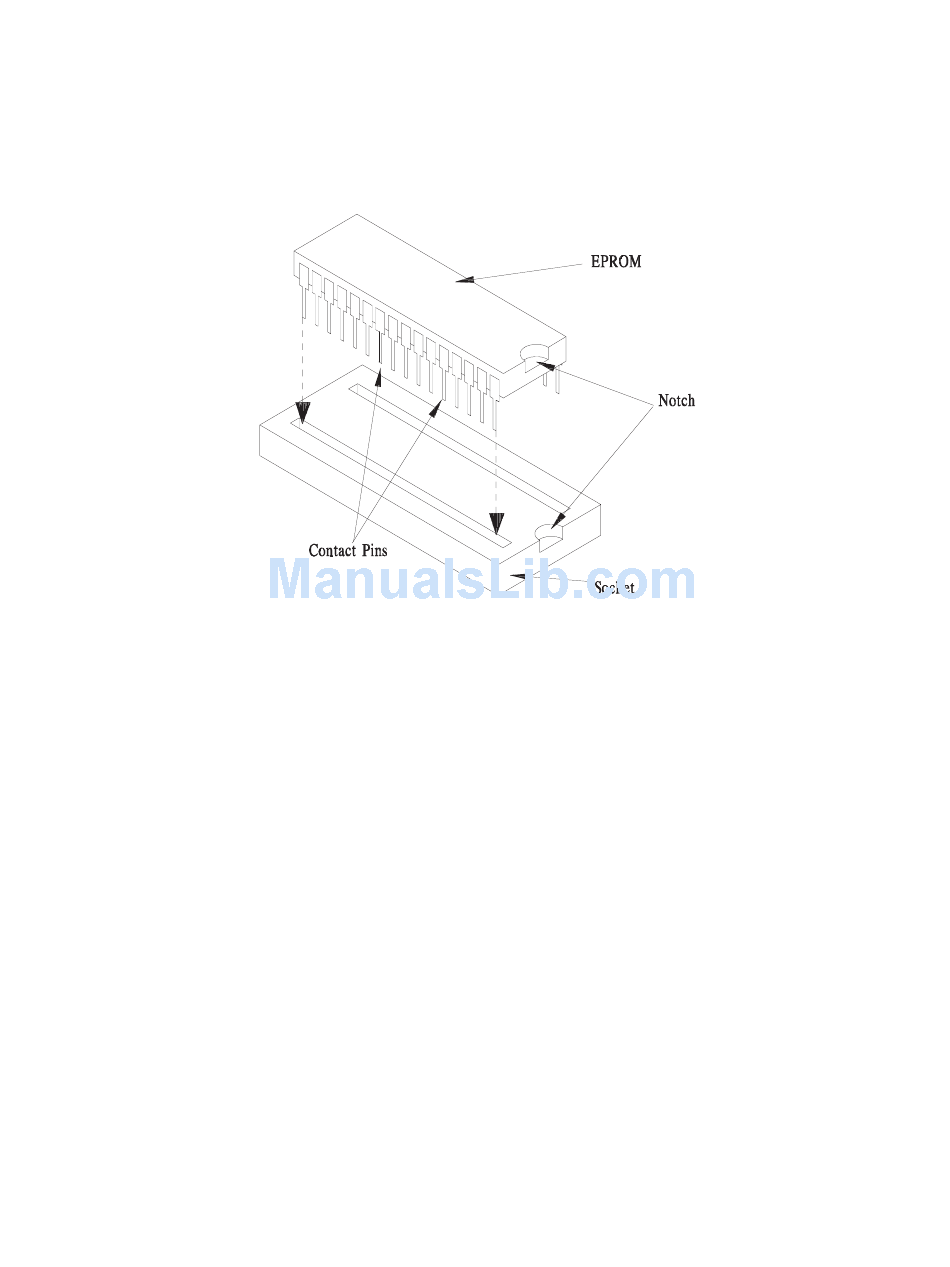

Figure 7–26
7–25
