Media Loading

The printer supports up to an 8 inch (203 mm) diameter media roll. If media
with a width of less than 4 inches is used, refer to page 4–5 before loading
media.
Follow the instructions outlined below when installing media stock.
1. Open the printer side access cover.
2. Rotate the printhead latch (1) counter-clockwise to unlatch and raise the
printhead to an upright position.
3. Lower the hinge plate (2).
4. Slide the media guide (3) to the outer edge and rotate it to the down
position.
NOTE: If using fanfold media, skip Steps 5 and 6. Install fanfold media as
Basic Operations

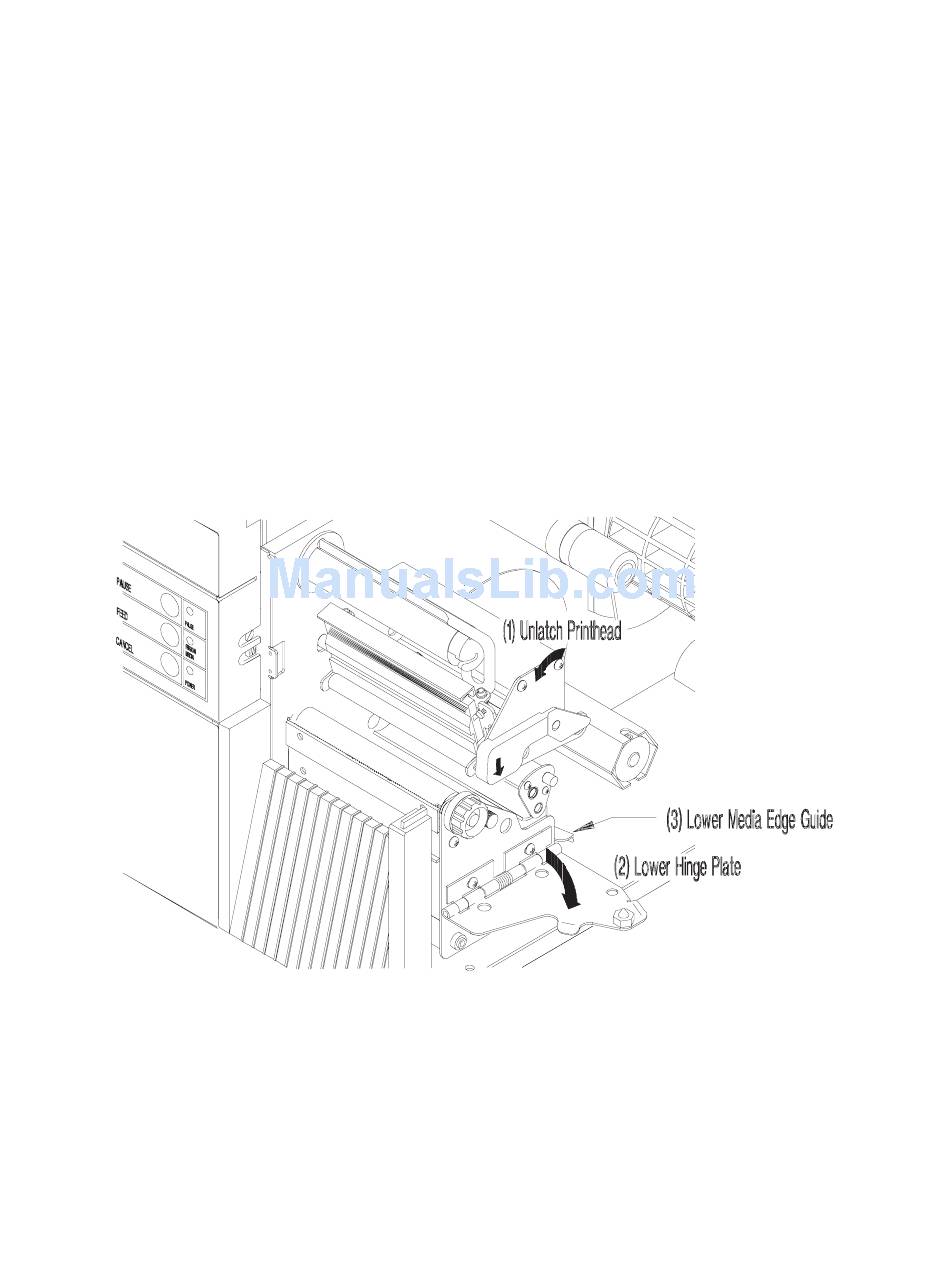

Figure 3–3. Media Access
shown in Figure 3–5.
