Secondary Operator's Panel

The secondary operator's panel is located behind a door on the lower left
front of the printer. Pushing in on the door will both open and close it. This
panel consists of six push-button type key switches and also contains a
contrast control for the LCD display.
The functions of the Secondary Operator's Panel key switches are described
in the Setup Guide associated with the particular emulation installed in the
printer. Refer to this document for detailed information.

The Menu System

The menu structure is divided into two functions levels: Basic and
Advanced/Service.
The Basic function level allows the operator to check the machine status,
change the print contrast, adjust label position, select various media handling
modes, etc. The Basic function level is available to all users.
The Advanced/Service function level includes those functions which (1) an
operator would not be expected to access and (2) are restricted to service
procedures. Access to the Advanced/Service functions of the printer is
controlled by (1) the setting of DIP Switch S3–1 (see page 2–2) and (2) a
secondary control panel menu key sequence (only if the LP+, IGP/PGL or
IGP/VGL emulations are installed). A full description of all menu functions
can be found in the Setup Guide associated with the particular emulation
installed in the printer.
Basic Operations
SHIFT
ENTER

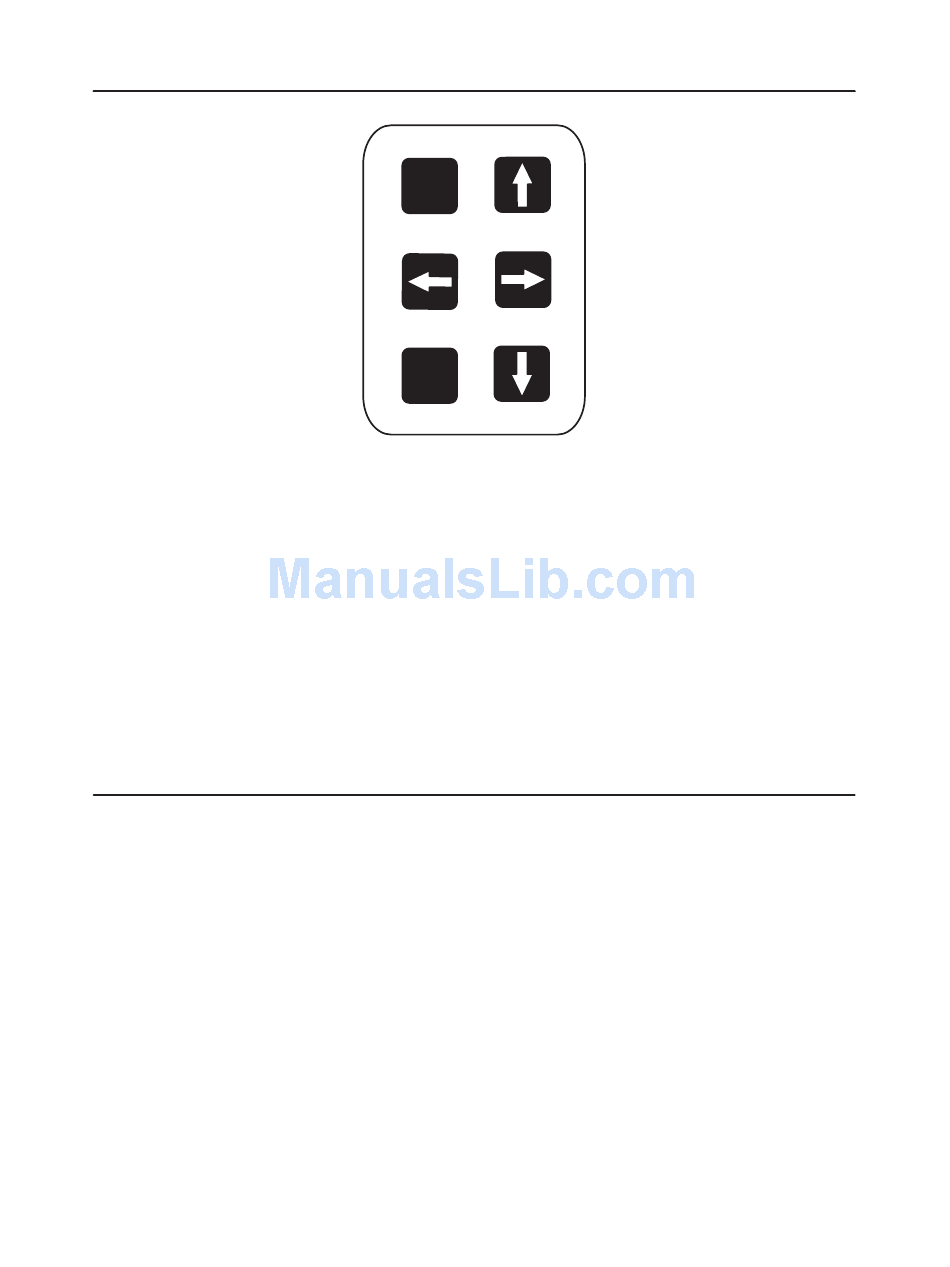

Figure 3–2. Secondary Operator's Panel
3–3
