Printronix T3204 Maintenance Manual page 63

4. Once the media side of the cover is aligned, horizontally align the
electronic cover with the plastic front bezel.
5. Tighten screw snugly.
6. Place hand on the top of the electronic cover pressing firmly, and tighten
the remaining three outside screws (two on the left side and one at the
rear of the printer).
7. Open media cover and tighten the remaining two internal cover screws.
Removal and Replacement

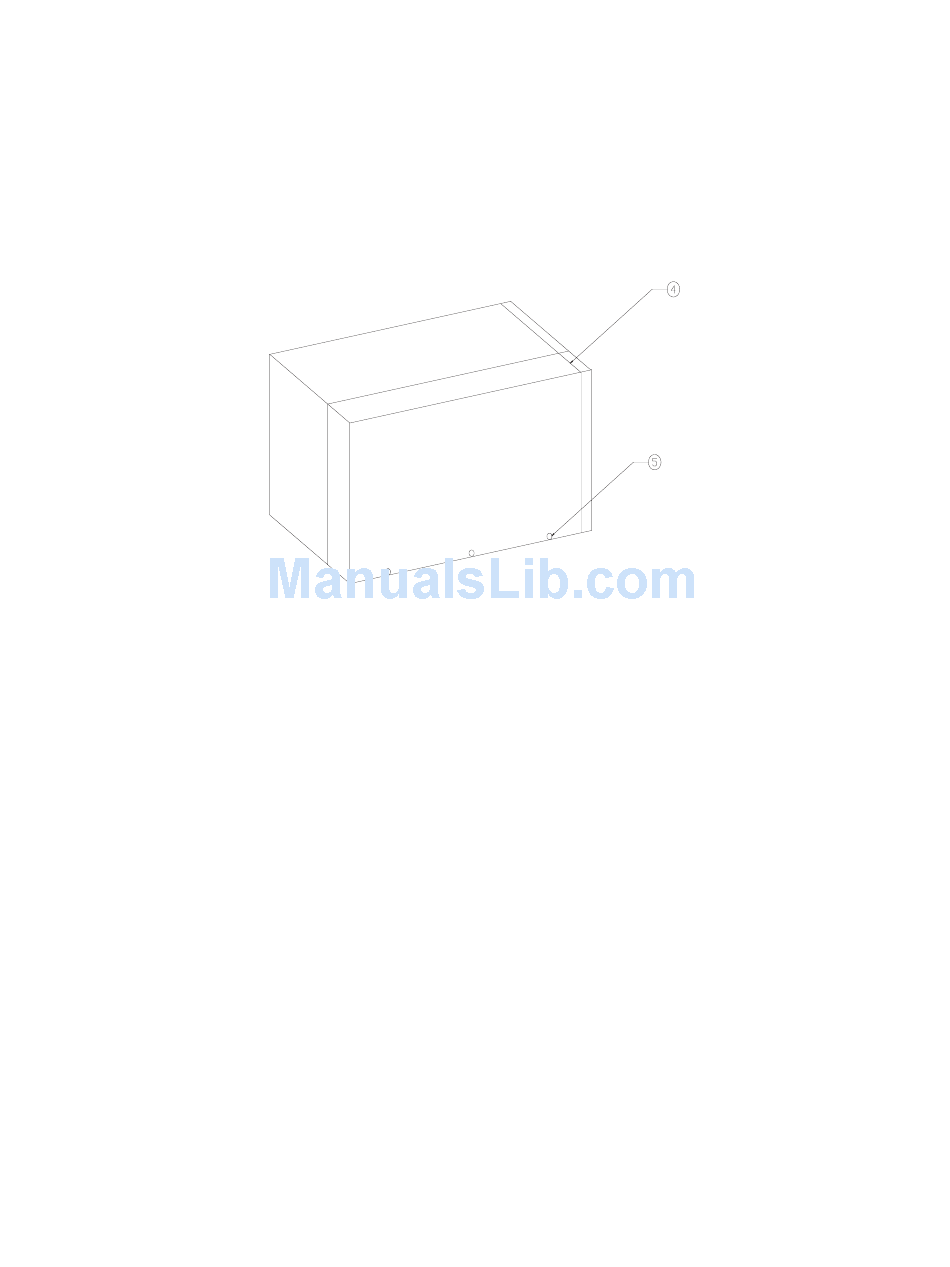

Figure 7–4
7–5
