NOTE: Printers have been built with two types of standard media hubs.
Metal Hub:
5. Place the 3" media core adapters on
the media hub assembly (if using media
with 3" media cores).
6. Place the media supply roll on the
media hub assembly. Slide the media
retainer against the supply roll and
tighten the thumb screw.
Plastic Hub:
5. Place the 3" media supply roll on the
media hub assembly.
6. Place the media supply roll on the
media hub assembly. Slide the media
retainer against the supply roll and
tighten the thumb screw.
NOTE: Do not use media retainer if the media supply roll is wider than 4
NOTE: The media supply hub shown in Figure 3–4 is the standard 3 inch
3–6
From the illustrations below follow the media loading that matches
your printer.

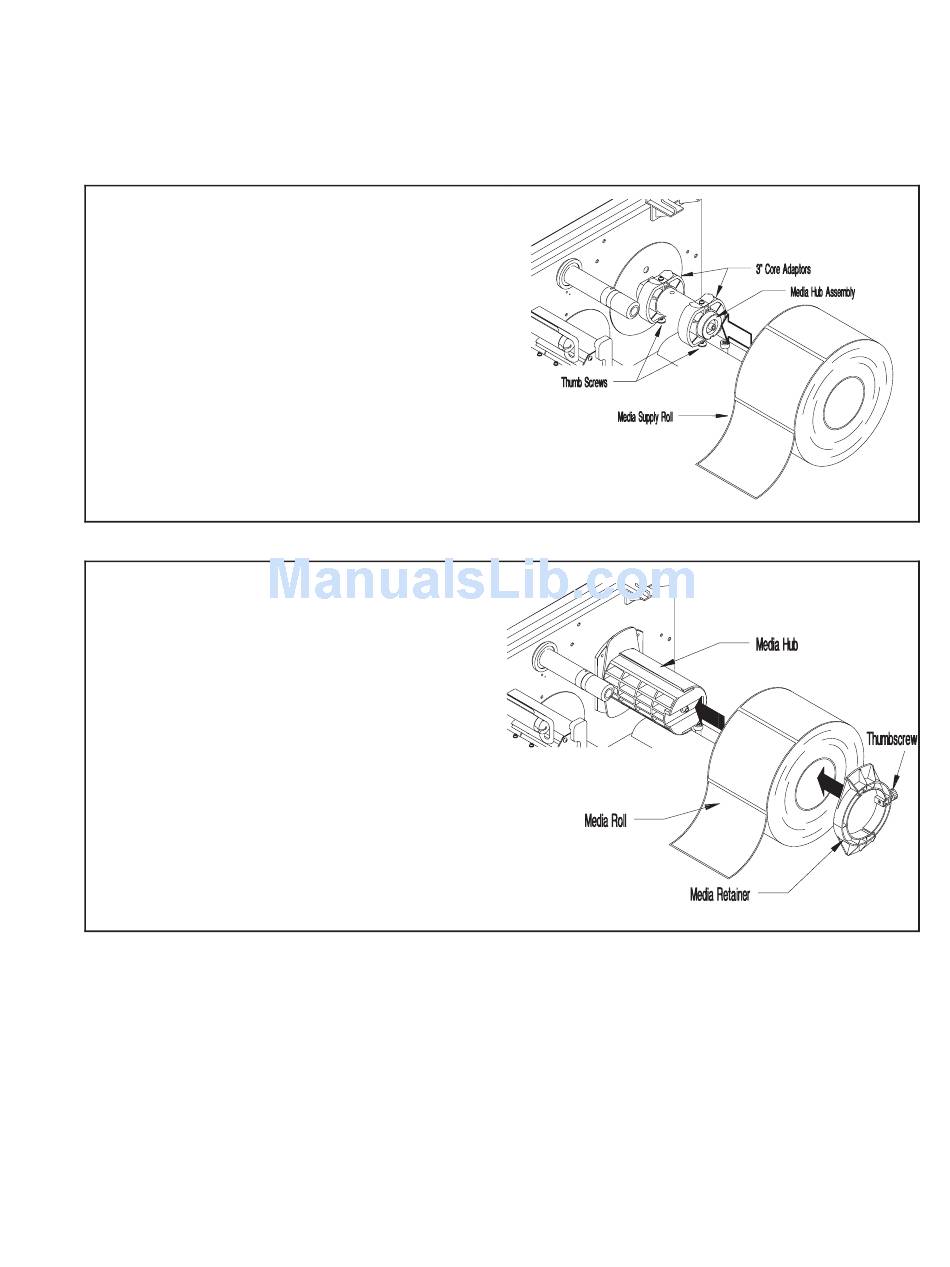

Figure 3–4. Roll Media Installation
inches (102 mm).
diameter hub. An optional media supply hub is also available which
accommodates media rolls with smaller inner diameters (see pages
1–10 and 5–2).
Basic Operations
