7. Route the media over the guide plate, between the media sensor, and
over the platen roller (located beneath the printhead) as shown in
Figure 3–5.
8. Rotate the media guide up and slide it to the edge of the media.
9. Close the hinge plate and lower the printhead by the rotating the
printhead latch clockwise to the latched position.
NOTE: If the media is not being sensed properly, try adjusting the media
Basic Operations

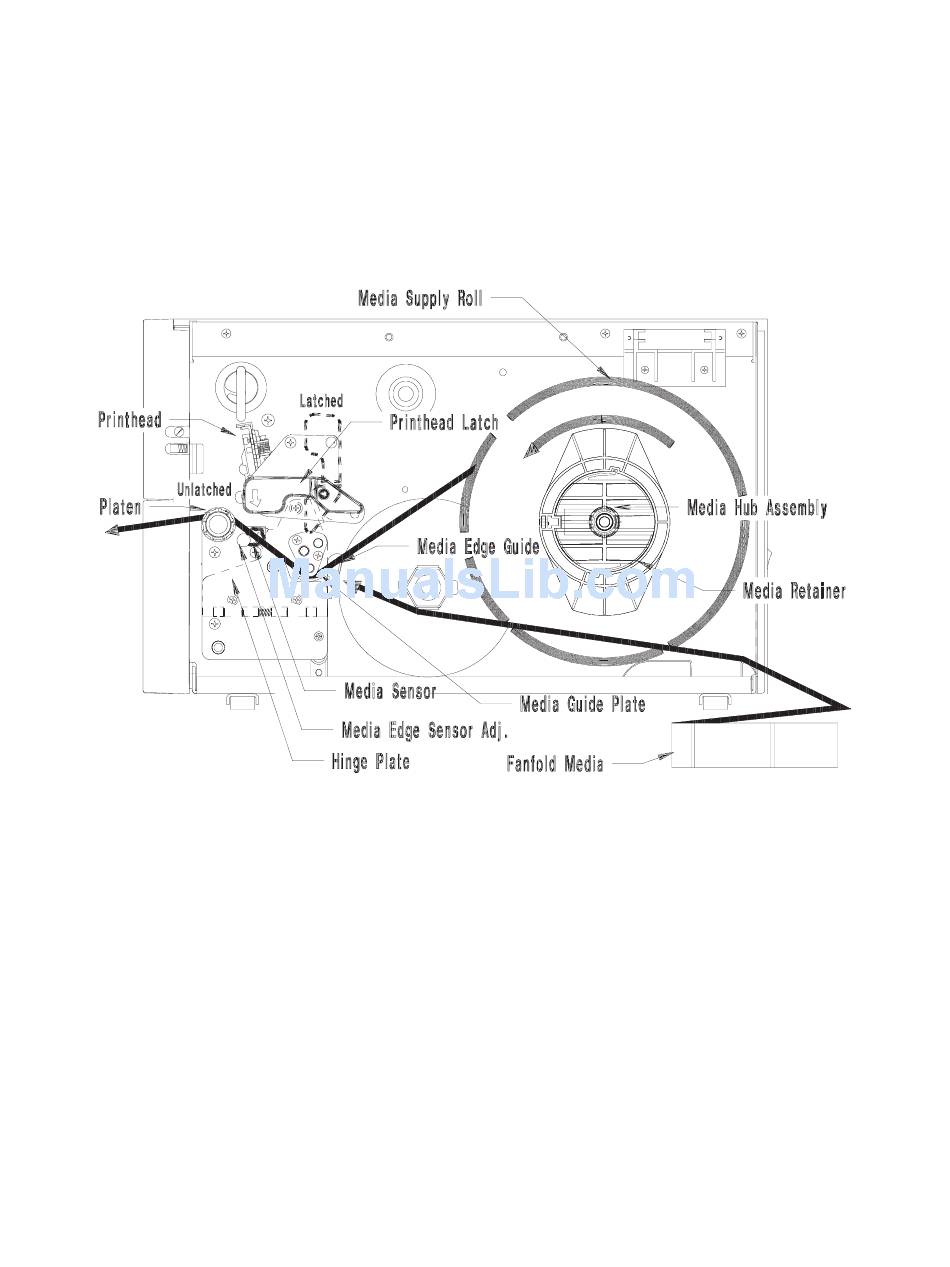

Figure 3–5. Fanfold Media Installation
edge sensor by turning the media edge sensor adjustment knob.
