Printer Setup

The printer is designed for easy setup using a software based menu system.
The menu system controls printing parameters such as contrast or print
position, communications protocols, the selection of printer options and
emulation modes. The menu also provides maintenance functions and tests
which are accessible depending upon the setting of an internal switch (see
below).
See page 3–3 for an overview of the menu system. For a detailed
explanation, see the Setup Guide corresponding to the particular emulation
installed in the printer.

DIP Switch Settings

DIP Switch S3 (see Figure 2–1) in an 8-position switch located on the Printer
Controller PCBA. The functions of this switch are specified in Table 2–1.
Switch Number
Switch Number
S3–1
S3–2
S3–3
S3–4
S3–5
S3–6
S3–7
S3–8
2–2
ON

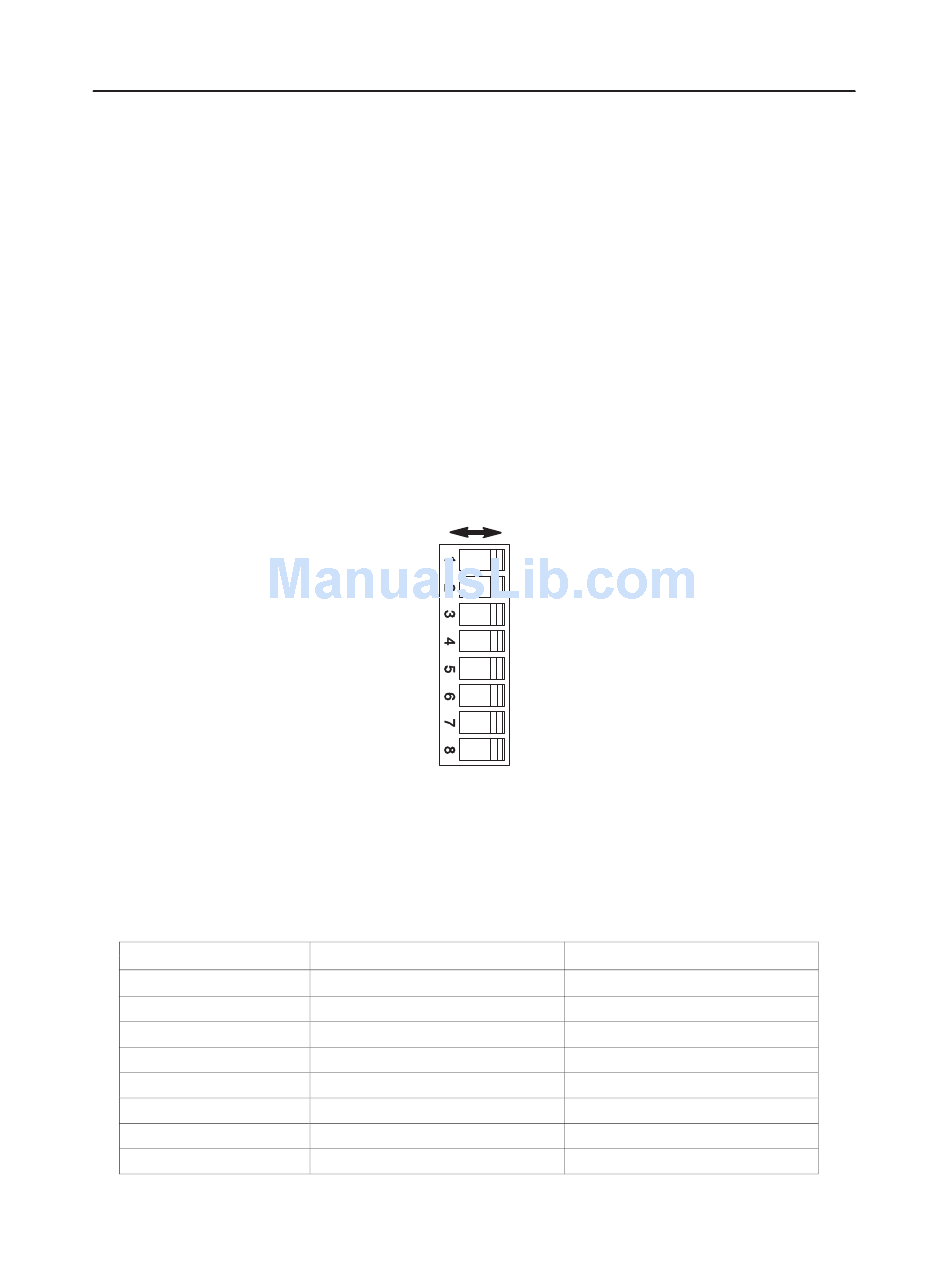

Figure 2–1. DIP Switch S3
Table 2–1. DIP Switch S3 Settings
ON
ON
Front Panel LOCKED
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
RS–422 TERMINATED
OFF
OFF
OFF
Front Panel UNLOCKED
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
RS–422 NOT TERMINATED
Setup and Configuration
