Connecting Power

The standard printer is configured for 115 VAC
50/60Hz power source. The printer should be connected to a properly
grounded receptacle. The printer is also manufactured for 230 VAC
operation. A small sticker next to the AC power connector states the power
requirements.
Failure to comply with this information can result in personal injury
and/or damage to the printer and its associated equipment.
Check the rear AC switch settings before applying power. The facing arrows
must be selected to match the supplied voltage rating: 115 VAC or 230 VAC.
If the printer AC power setting does not match the available AC power, follow
instructions outlined below.
Remove the AC power cord (if installed).
Insert flat blade screwdriver into release slot and push out voltage
selector/fuse holder switch.
Rotate the fuse holder/voltage selection switch 180 degrees and
re-insert it.
Attach the proper power cord.
Setup and Configuration
AC Power Connector
Facing arrows indicate
selected voltage

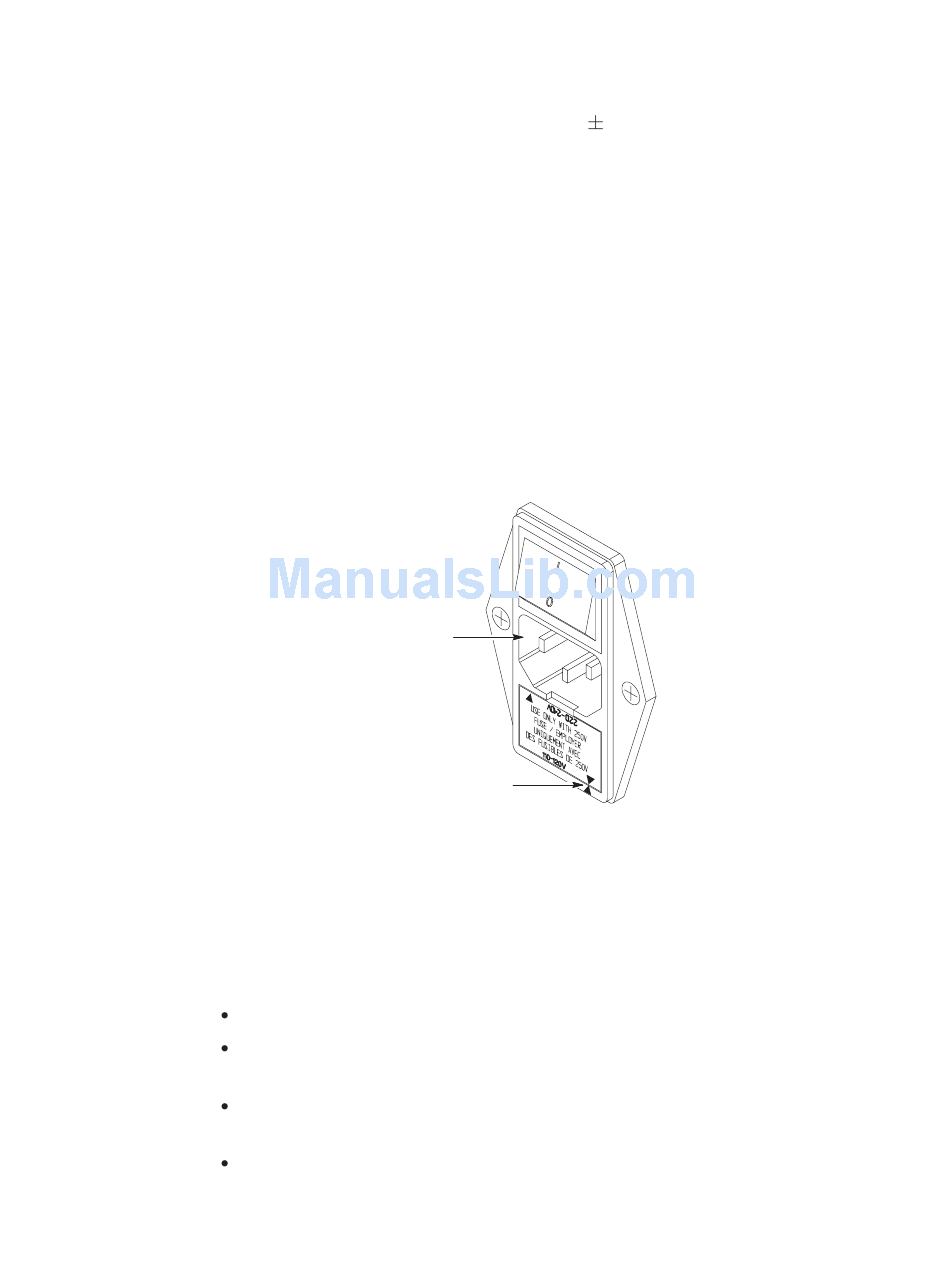

Figure 2–2. AC Input Power Connector
