Lower Timing Belt (300 DPI)

Removal
1. Turn off the printer and remove the AC power cord.
2. Remove the printer covers (see page 7–3).
3. Loosen the upper tensioner adjustment screw located on the rear
bearing plate (see Figure 7–13).
4. Carefully slide the upper timing belt off the 36 tooth pulley.
Removal and Replacement

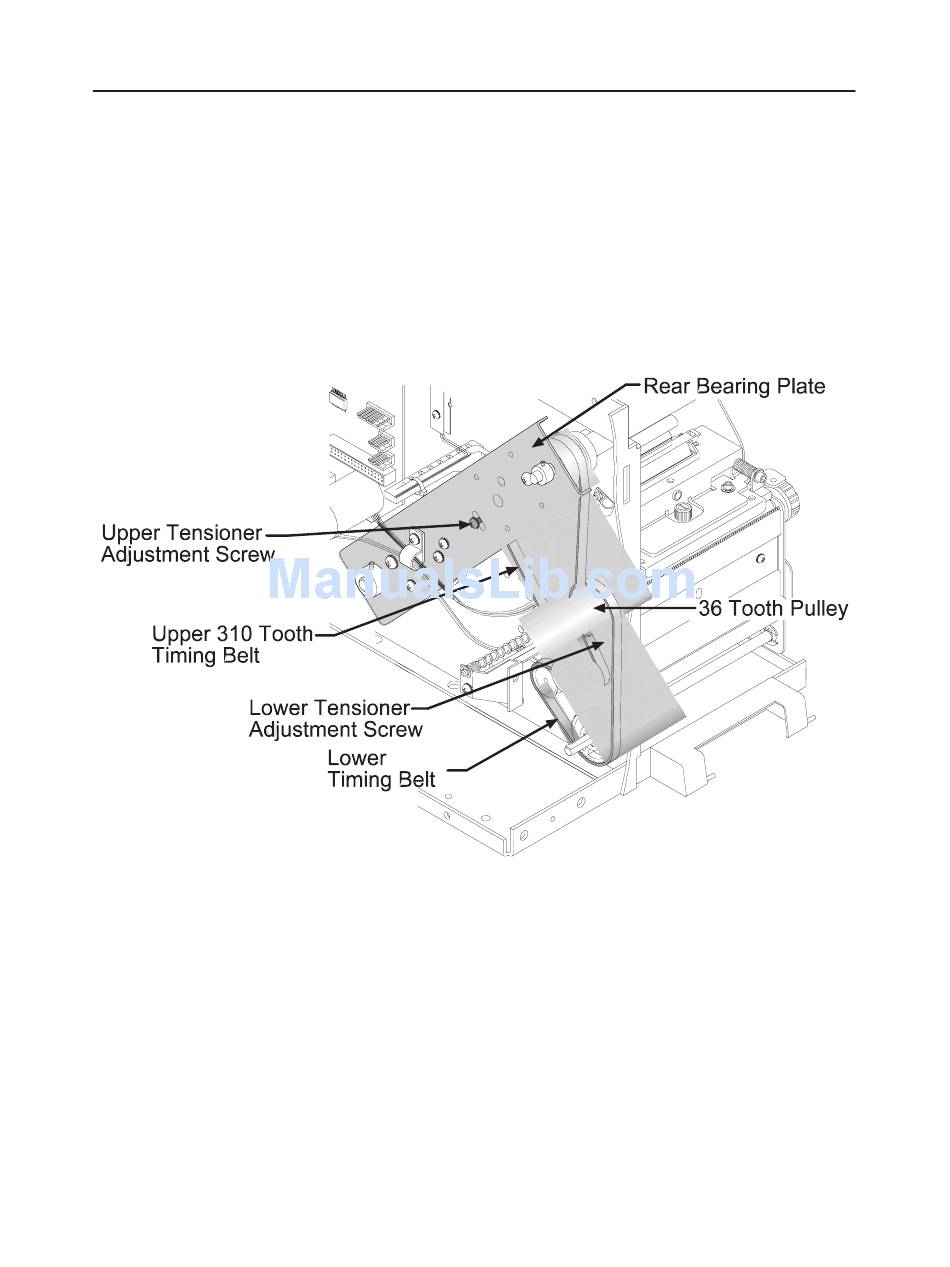

Figure 7–13
7–13
