Media Width Adjustment

This adjustment allows the use of narrower media (less than 4 inches wide) in the
printer.
1. Remove media from the printer paper path, if installed.
2. Adjust the green head level adjust knob until its lowest setting is at the
top (position #1).
3. Adjust the button head screw (located above the green knob) until the
screw lightly touches the green head level adjust knob, when the head is
latched down (see page 4–7).
4. Ensure that there is a small gap between the button screw and the
green head level adjust knob.
5. If media to be used is less than 4 inches wide perform the following steps:
a.
b.
c.
NOTE: The method used to print test labels will vary depending upon the
d.
Maintenance and Adjustments
Rotate head level adjust knob counter-clockwise for the minimum
printhead position.
Install the media to be printed (refer to page 3–5).
Print a batch of test labels.
printer emulation. For specific instructions, see the Setup Guide
corresponding to the emulation installed.
If print quality is not acceptable, repeat Steps (a) and (c) until the
print quality is acceptable.

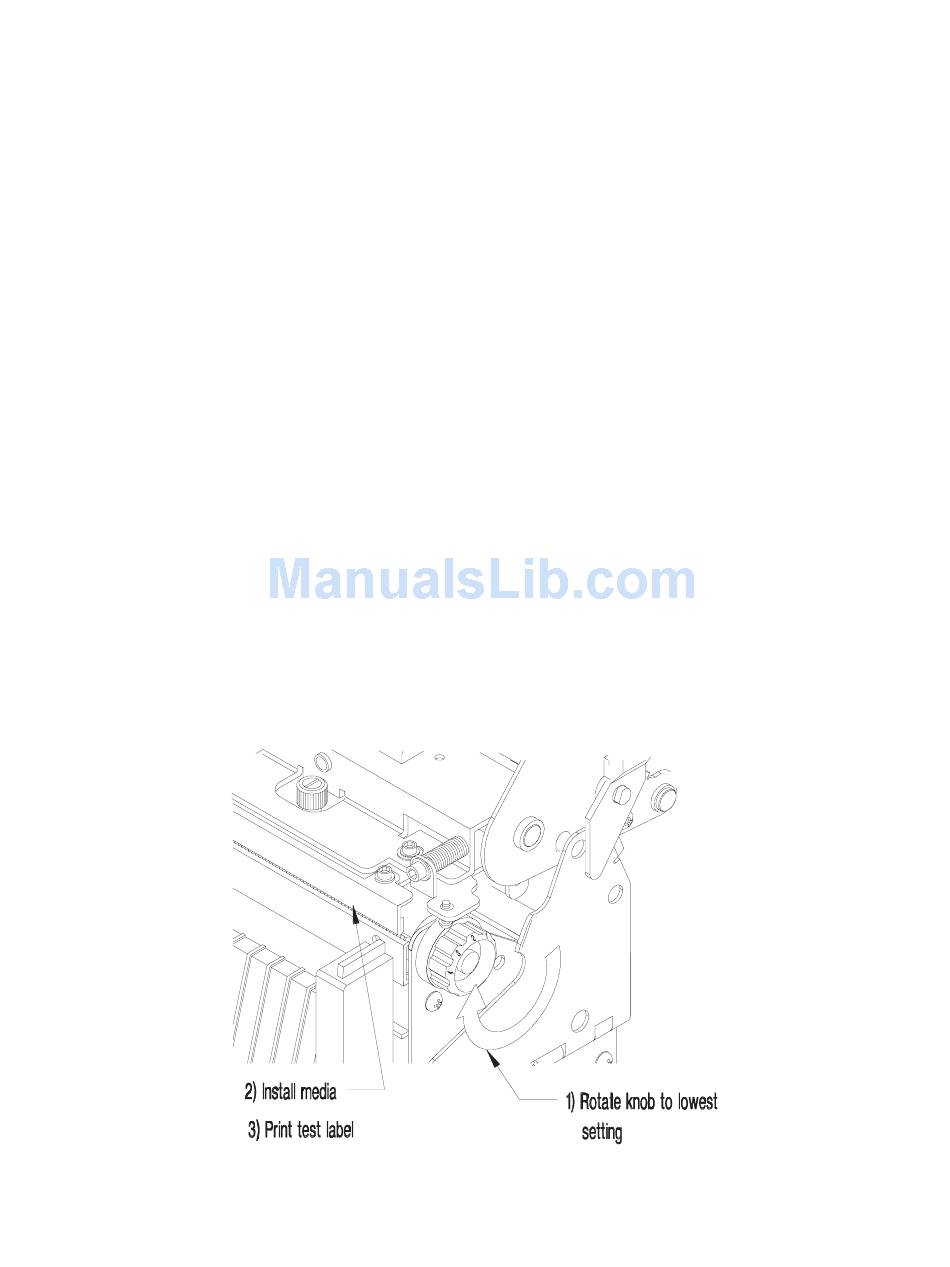

Figure 4–3. Media Width Adjustment
4–5
