Replacement
1.
Reverse previous steps to install the new switching regulator assembly.
2.

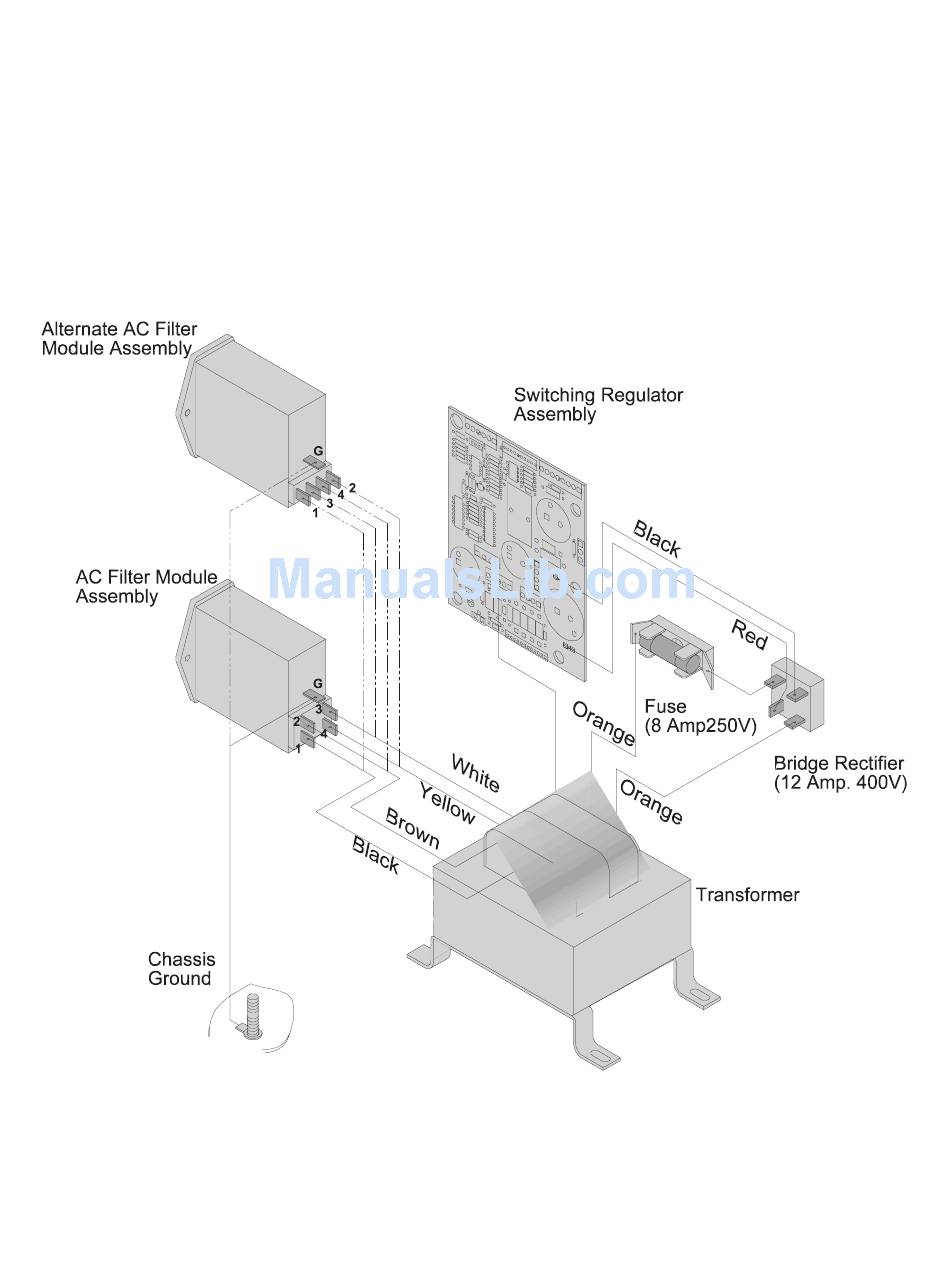

Refer to Figure 7–9 below when reconnecting the AC filter module
assembly.
3.
Re-install printer cover (see page 7–4).
4.
After installation of the new switching regulator assembly, the printhead
voltage adjustment must be performed (see page 4–8).
7–10
Figure 7–9
Removal and Replacement
