Replacement
1.
Reverse previous procedures to replace the upper timing belt.
2.
Re-adjust the upper tensioner to remove all remaining timing belt slack.
3.
Replace previously removed cable clamp.
4.
Re-install printer cover (see page 7–4).
5.
Install media and print a configuration label.
7–16

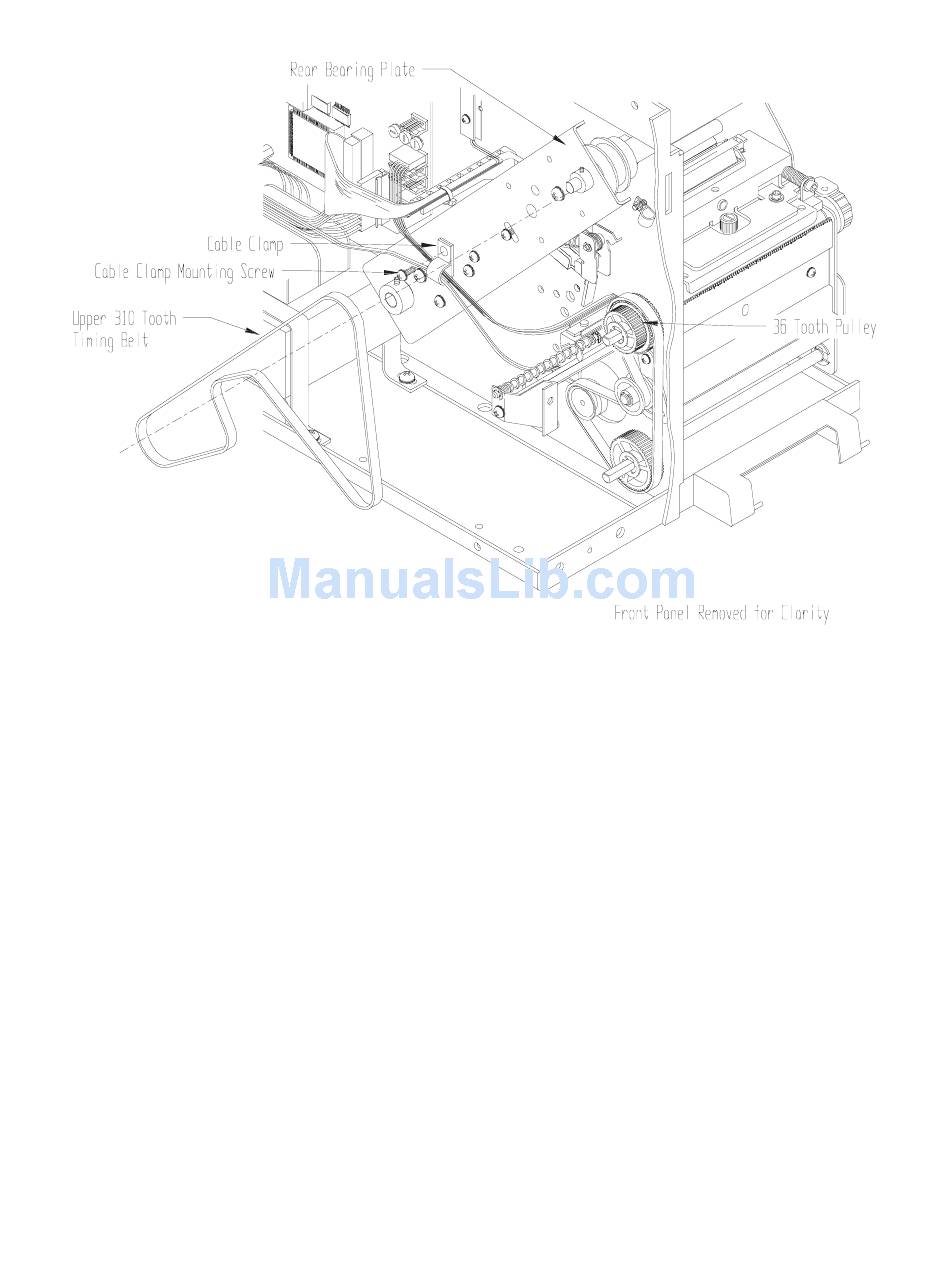

Figure 7–16
Removal and Replacement
