Host Interfacing

The printer is extremely versatile and able to operate with a personal computer in
either serial or, optionally, parallel Centronics-compatible communications modes as
well as with IBM midrange computer systems using the optional twinax/coax
interface adapter. When using the standard serial port, the printer is DTE equipment
and supports both CTS/DTR and XON/XOFF handshaking.
The printer can also communicate in an "internal batch" mode with a standalone
terminal such as the LINK CRT (available only with the IGP/FGL emulation.)
RS232/RS422
Serial Connector
RS232 Cable from
Host Computer
AC Power
Cord
2–4
Power Switch
Release Slot
Flip over and reinsert

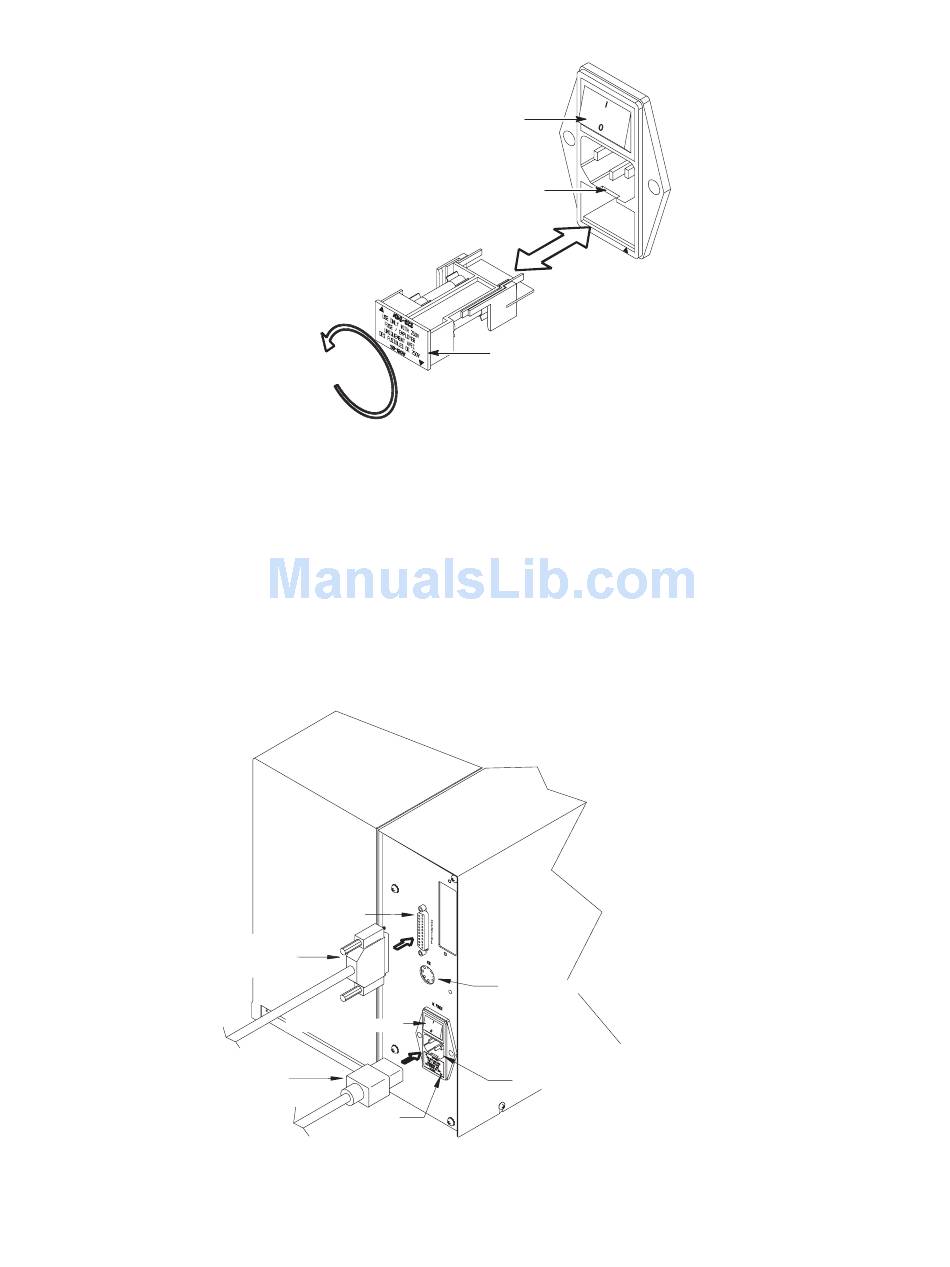

Figure 2–3. Selecting Printer for 230 VAC Operation
AC Power Switch
Fuse
Holder
Figure 2–4. Cable Connections
Voltage Selection
Switch/
Fuse Holder
Accessory Jack
AC Power Connector
Setup and Configuration
