Lower Timing Belt (203 DPI)

Removal
1. Turn off the printer and remove the AC power cord.
2. Remove the printer cover (see page 7–3).
3. Loosen the upper tensioner adjustment screw located on the rear
bearing plate.
4. Carefully slide the upper timing belt off the 36 tooth pulley as shown in
Figure 7–10.
Removal and Replacement

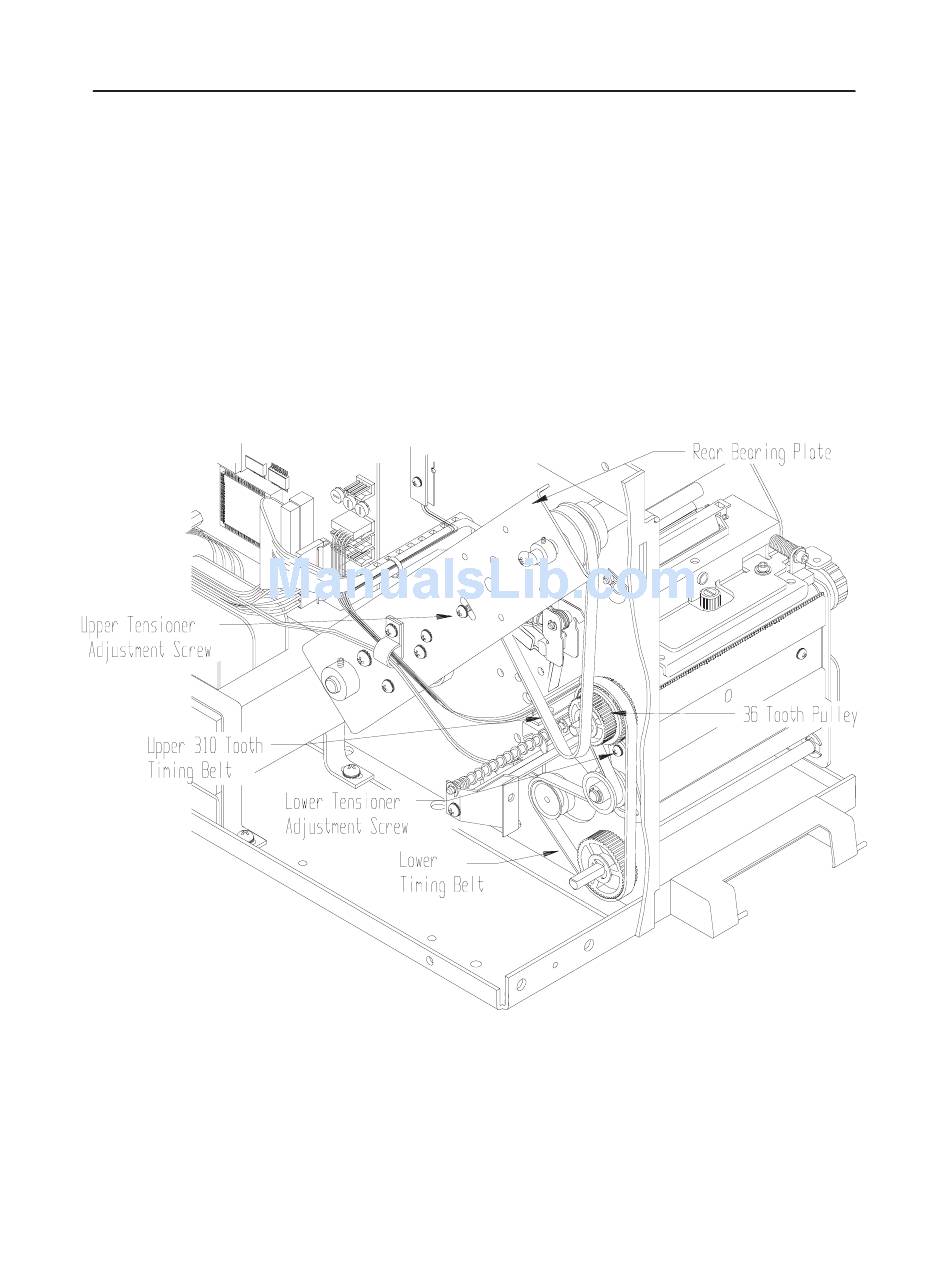

Figure 7–10
