Drive Motor Assembly

Removal
1. Turn off the printer and remove the AC power cord, media, and ribbon if
installed.
2. Remove the printer cover (see page 7–3).
3. Remove the lower timing belt (see page 7–11).
4. Raise the printhead and lower the lower right front panel.
5. Loosen the set screw in the media sensor knob and remove the media
sensor knob and spacer.
6. Remove the four (4) 6–32 X .38 black screws and external tooth
washers used to secure the lower assembly bearing plate.
7. Remove the lower assembly bearing plate.
Removal and Replacement

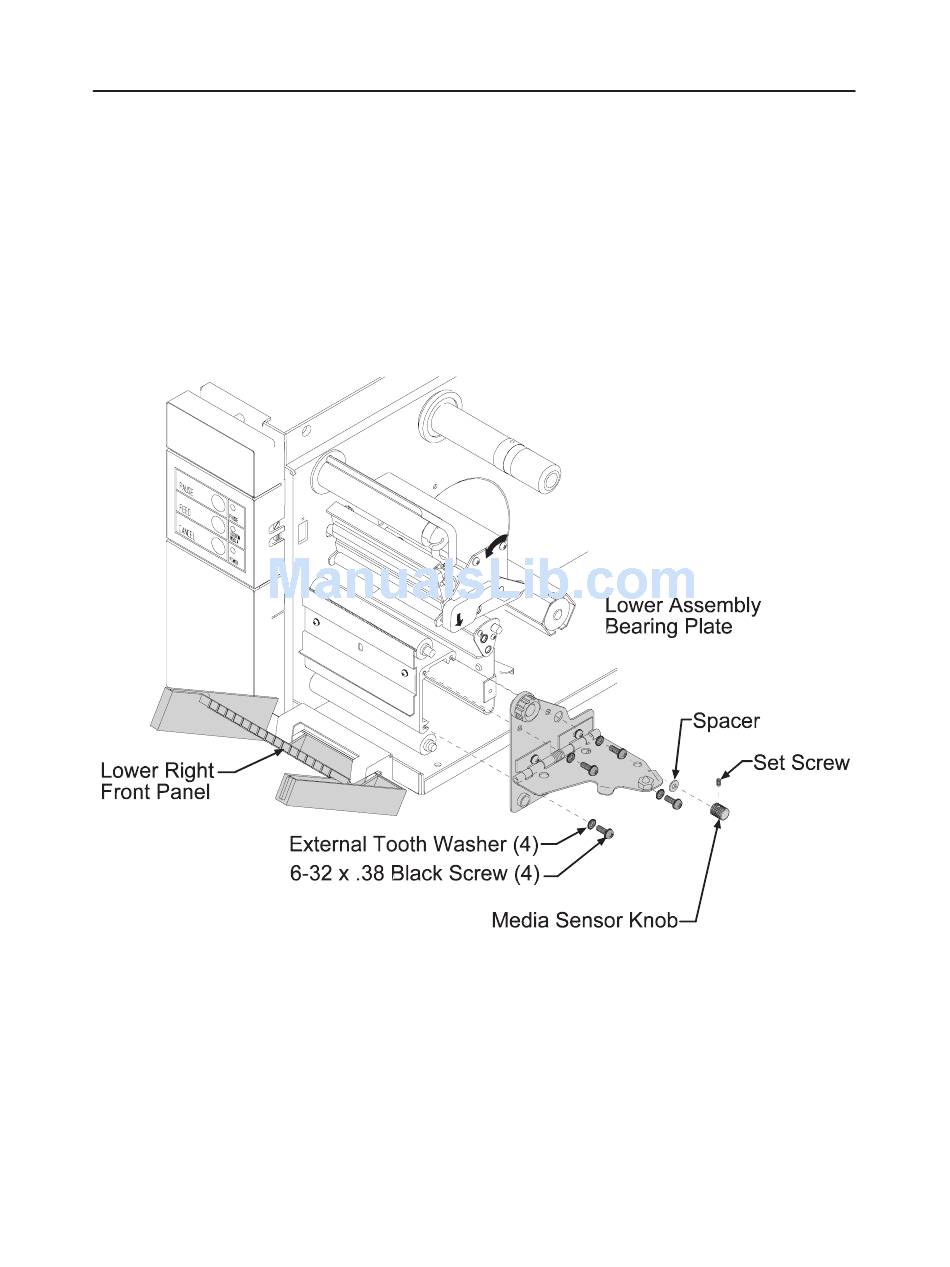

Figure 7–17
7–17
