INSTALLATION AND CONNECTIONS

■ Linear amplifier connections

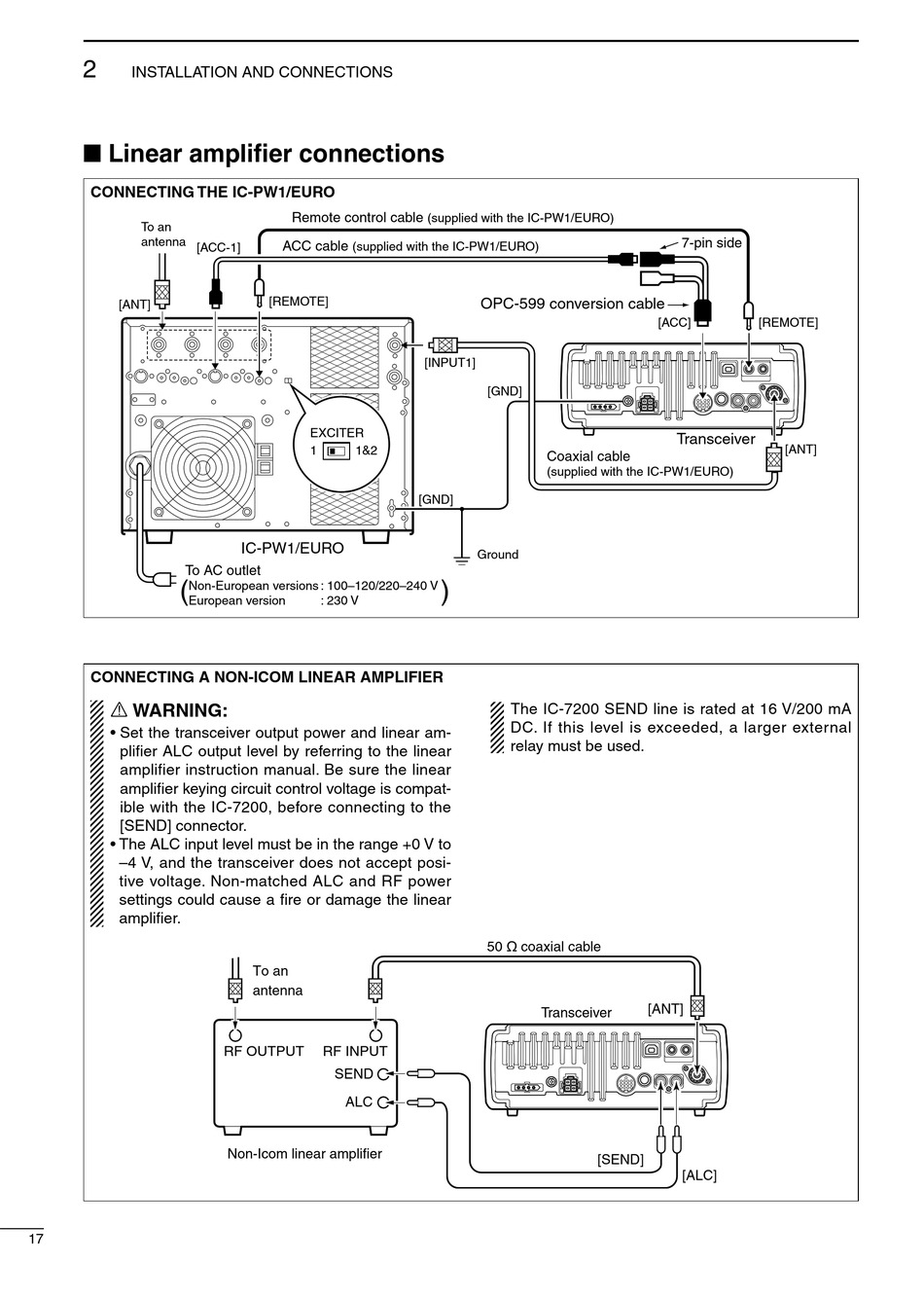

CONNECTING THE IC-PW1/EURO
To an
antenna [ACC-1]
[ANT]
To AC outlet
(
Non-European versions : 100–120/220–240 V
European version
CONNECTING A NON-ICOM LINEAR AMPLIFIER
R WARNING:
• Set the transceiver output power and linear am-
plifier ALC output level by referring to the linear
amplifier instruction manual. Be sure the linear
amplifier keying circuit control voltage is compat-
ible with the IC-7200, before connecting to the
[SEND] connector.
• The ALC input level must be in the range +0 V to
–4 V, and the transceiver does not accept posi-
tive voltage. Non-matched ALC and RF power
settings could cause a fire or damage the linear
amplifier.
17
Remote control cable
ACC cable
(supplied with the IC-PW1/EURO)
[REMOTE]
EXCITER
1 1&2
IC-PW1/EURO
: 230 V
To an
antenna
RF OUTPUT RF INPUT
SEND
ALC
Non-Icom linear amplifier
(supplied with the IC-PW1/EURO)
OPC-599 conversion cable
[INPUT1]
[GND]
Coaxial cable
(supplied with the IC-PW1/EURO)
[GND]
Ground
)
The IC-7200 SEND line is rated at 16 V/200 mA
DC. If this level is exceeded, a larger external
relay must be used.
50 ø coaxial cable
Transceiver
7-pin side
[ACC] [REMOTE]
Transceiver
[ANT]
[SEND]
[ALC]
[ANT]
