2
INSTALLATION AND CONNECTIONS

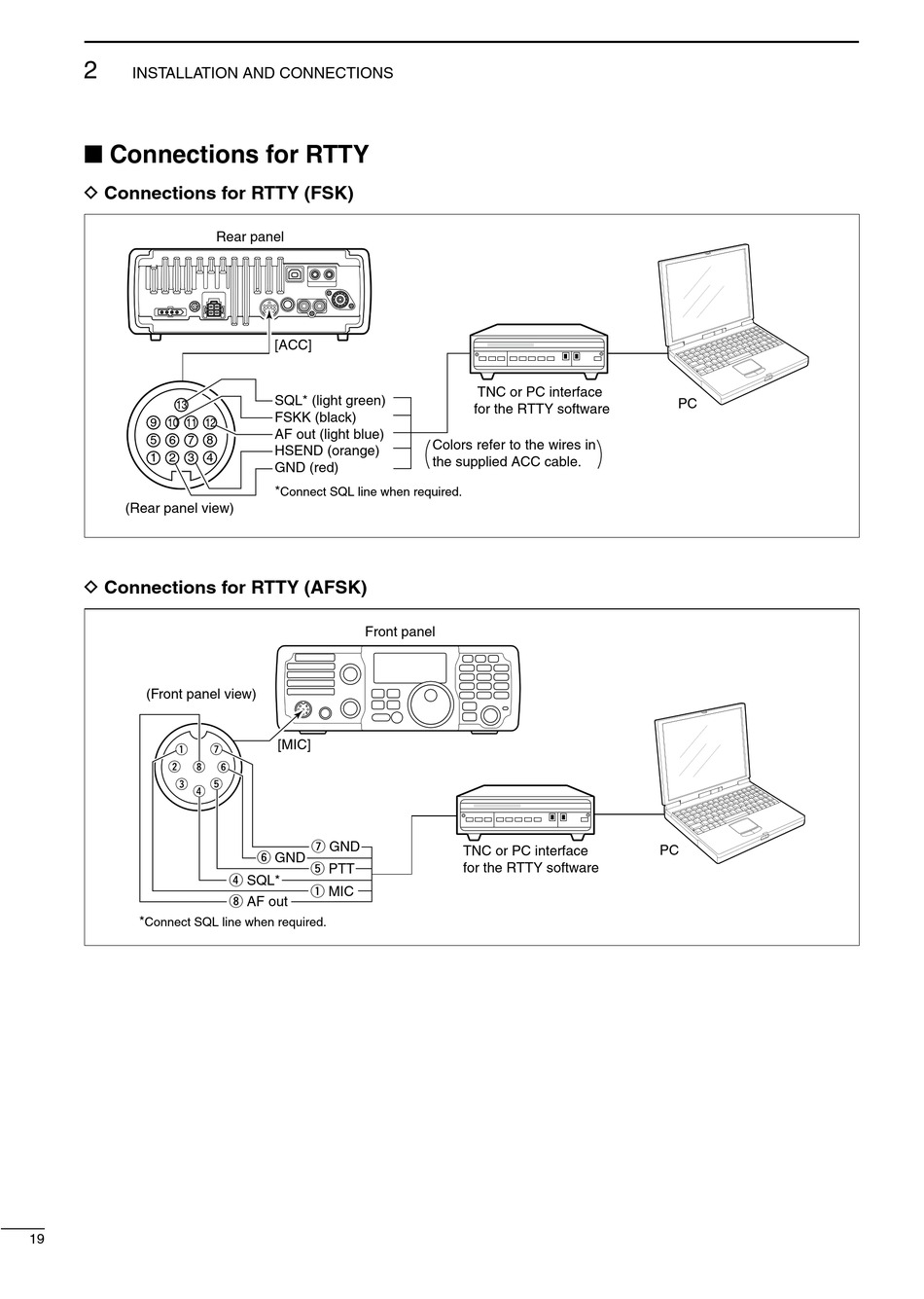

■ Connections for RTTY

D Connections for RTTY (FSK)

13
9 10 11
5 6 7
1 2 3
(Rear panel view)

D Connections for RTTY (AFSK)

(Front panel view)
*
Connect SQL line when required.
19
Rear panel
[ACC]
SQL* (light green)
FSKK (black)
12
AF out (light blue)
8
HSEND (orange)
4
GND (red)
*
Connect SQL line when required.
Front panel
[MIC]
u GND
y GND
t PTT
r SQL*
q MIC
i AF out
[EXT SP]
2-conductor ⁄ " plug
1
8
AF
GND
TNC or PC interface
for the RTTY software
Colors refer to the wires in
the supplied ACC cable.
TNC or PC interface
for the RTTY software
PC
PC
