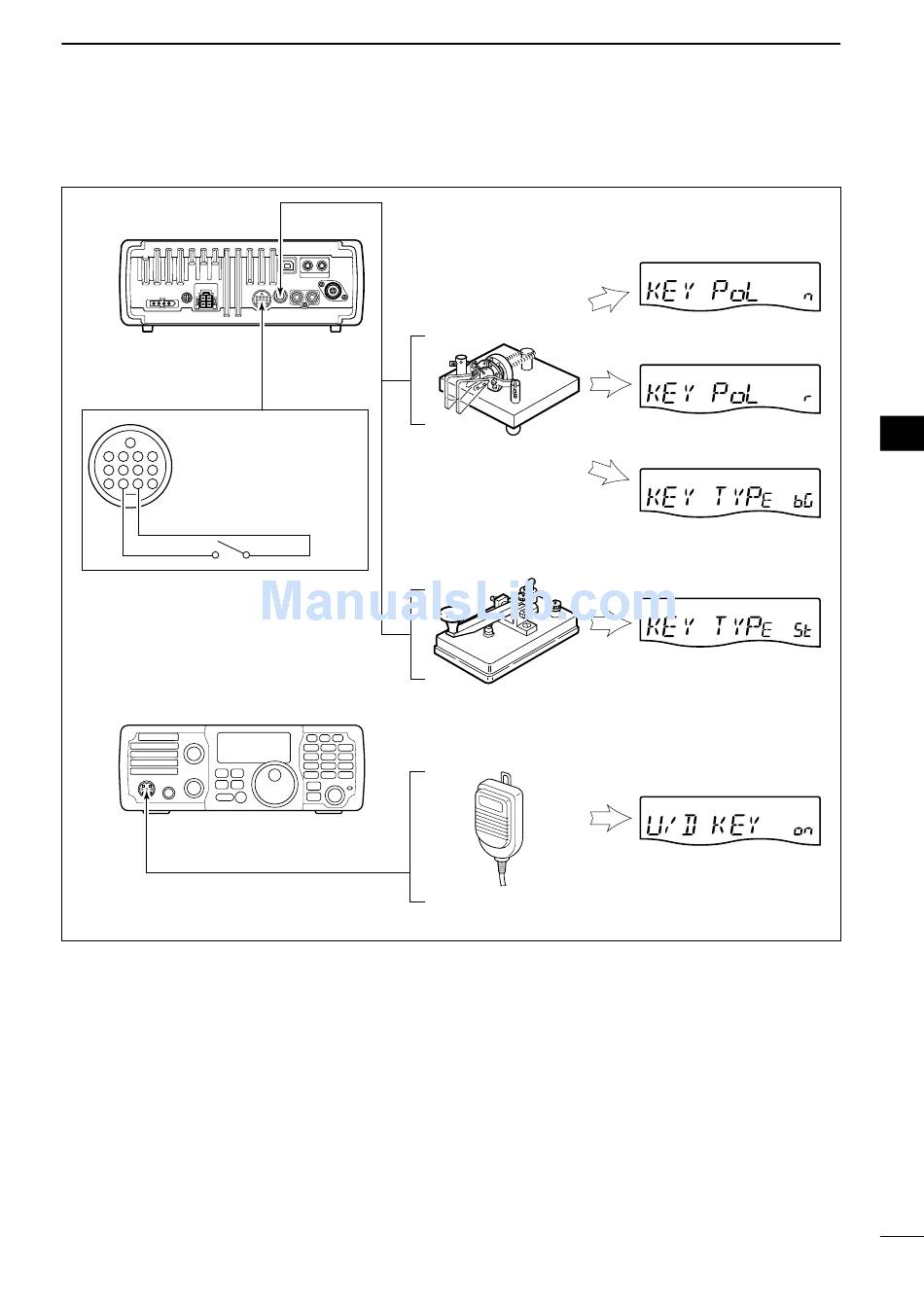

■ Connections for CW

Rear panel
For no break-in operation:
13
Connect an external switch
9 10 11 12
such as a foot switch; or use
5 6 7 8
the RTTY SEND terminal for
1 2 3 4
all bands. (See p. 19)
MIC
See p. 82 for connection details:
Paddle operation from the [MIC]
connector.
KEY
ACC
Microphone (HM-36)
INSTALLATION AND CONNECTIONS
Paddle
Straight key
* When connecting an external electronic keyer,
set the keyer type to 'St' (straight-key).
Set mode settings (p. 80)
N o r m a l
Paddle polarity: Normal
R ev e rs e
Paddle polarity: Reverse
B u g
Keyer type: Bug-key
Keyer type: Straight-key
Mic Up/Down keyer: ON
