5
FUNCTIONS FOR RECEIVE

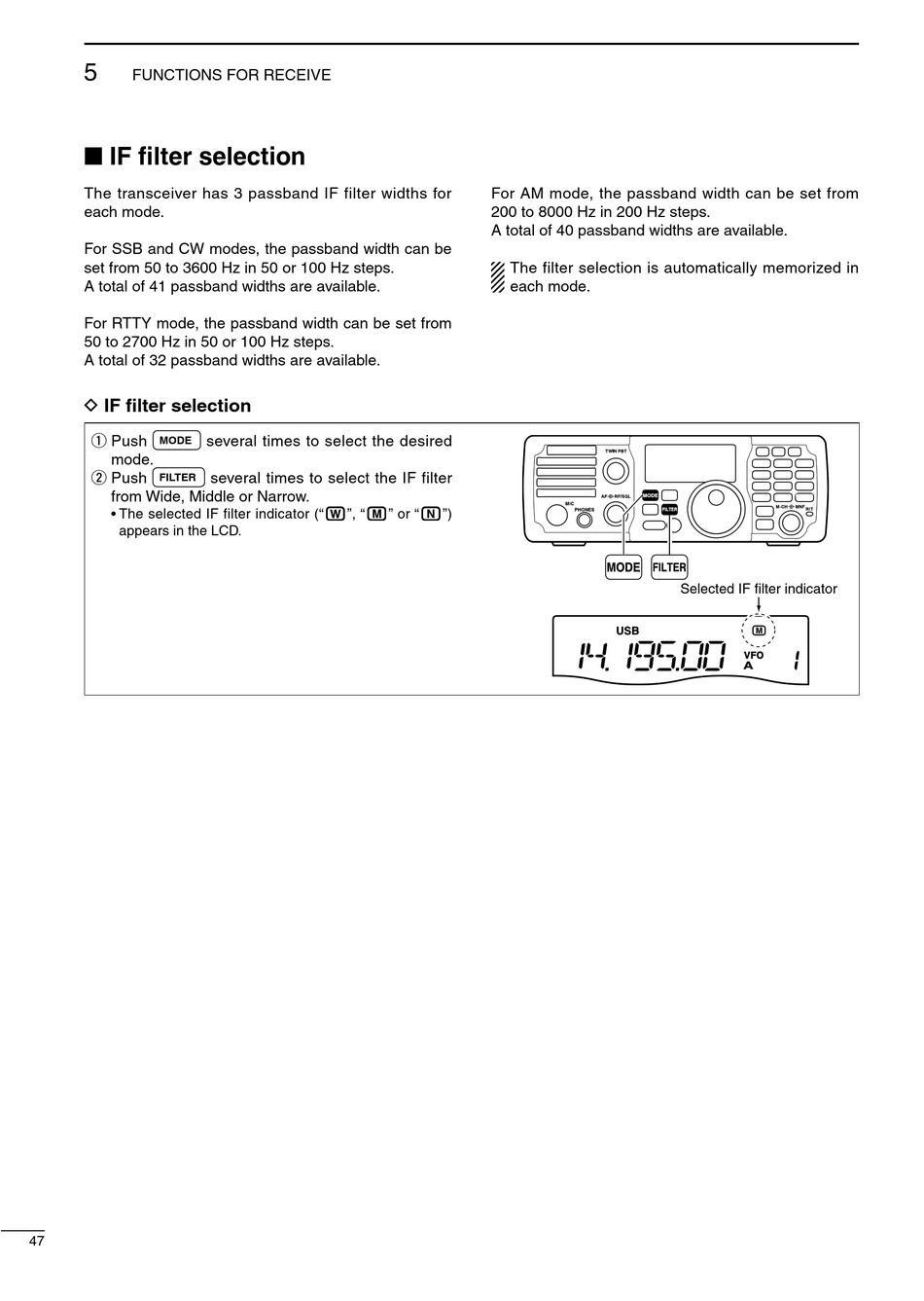

■ IF filter selection

The transceiver has 3 passband IF filter widths for
each mode.
For SSB and CW modes, the passband width can be
set from 50 to 3600 Hz in 50 or 100 Hz steps.
A total of 41 passband widths are available.
For RTTY mode, the passband width can be set from
50 to 2700 Hz in 50 or 100 Hz steps.
A total of 32 passband widths are available.

D IF filter selection

q Push
MODE
mode.
w Push
FILTER
from Wide, Middle or Narrow.
• The selected IF filter indicator ("
appears in the LCD.
47
several times to select the desired
several times to select the IF filter
", "
For AM mode, the passband width can be set from
200 to 8000 Hz in 200 Hz steps.
A total of 40 passband widths are available.
The filter selection is automatically memorized in
each mode.
" or " ")
ANF
NB NR
METER
V/M 1 A/B 2 3
SPLIT
1.8 = 3.5 7
4 5 6
MW M-CL AGC
10 14 18
7 8 9
COMP SCAN VOX
21 24 28
.
MODE TS
0 F-INP ENT
RIT MNF
GENE 50
BAND
TUNER FILTER
P.AMP
ATT
M-CH/RIT
SPCH
SET
Selected IF filter indicator
