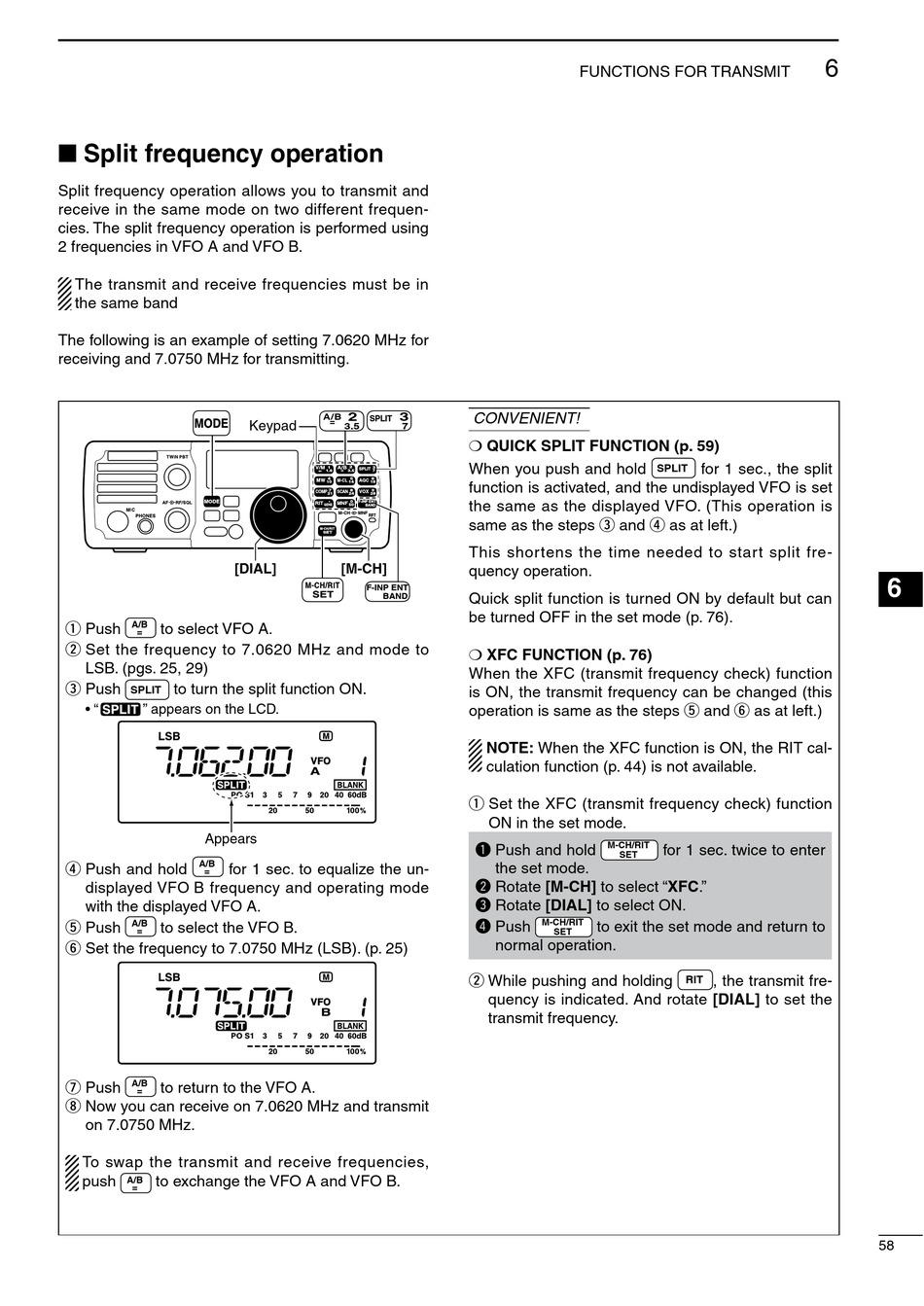

■ Split frequency operation

Split frequency operation allows you to transmit and
receive in the same mode on two different frequen-
cies. The split frequency operation is performed using
2 frequencies in VFO A and VFO B.
The transmit and receive frequencies must be in
the same band
The following is an example of setting 7.0620 MHz for
receiving and 7.0750 MHz for transmitting.
MODE TS
TUNER FILTER
SPCH
A/B
q Push to select VFO A.
=
w Set the frequency to 7.0620 MHz and mode to
LSB. (pgs. 25, 29)
e Push to turn the split function ON.
SPLIT
• " " appears on the LCD.
Appears
A/B
r Push and hold for 1 sec. to equalize the un-
=
displayed VFO B frequency and operating mode
with the displayed VFO A.
A/B
t Push to select the VFO B.
=
y Set the frequency to 7.0750 MHz (LSB). (p. 25)
A/B
u Push to return to the VFO A.
=
i Now you can receive on 7.0620 MHz and transmit
on 7.0750 MHz.
To swap the transmit and receive frequencies,
push to exchange the VFO A and VFO B.
A/B
=
2
3
A/B
SPLIT
=
Keypad
3.5 7
NR ANF
NB
METER
2
V/M 1 A/B 3
SPLIT
=
1.8 3.5 7
4 5 6
MW M-CL AGC
10 14 18
7 8 9
COMP SCAN VOX
21 24 28
.
0 F-INP ENT
RIT MNF
GENE 50
BAND
P.AMP
ATT
M-CH/RIT
SET
[DIAL] [M-CH]
F-INP ENT
BAND
FUNCTIONS FOR TRANSMIT
CONVENIENT!
❍ QUICK SPLIT FUNCTION (p. 59)
When you push and hold
function is activated, and the undisplayed VFO is set
the same as the displayed VFO. (This operation is
same as the steps e and r as at left.)
This shortens the time needed to start split fre-
quency operation.
Quick split function is turned ON by default but can
be turned OFF in the set mode (p. 76).
❍ XFC FUNCTION (p. 76)
When the XFC (transmit frequency check) function
is ON, the transmit frequency can be changed (this
operation is same as the steps t and y as at left.)
NOTE: When the XFC function is ON, the RIT cal-
culation function (p. 44) is not available.
q Set the XFC (transmit frequency check) function
ON in the set mode.
M-CH/RIT
q Push and hold
SET
the set mode.
w Rotate [M-CH] to select "XFC."
e Rotate [DIAL] to select ON.
M-CH/RIT
r Push to exit the set mode and return to
SET
normal operation.
w While pushing and holding
quency is indicated. And rotate [DIAL] to set the
transmit frequency.
