INSTALLATION AND CONNECTIONS

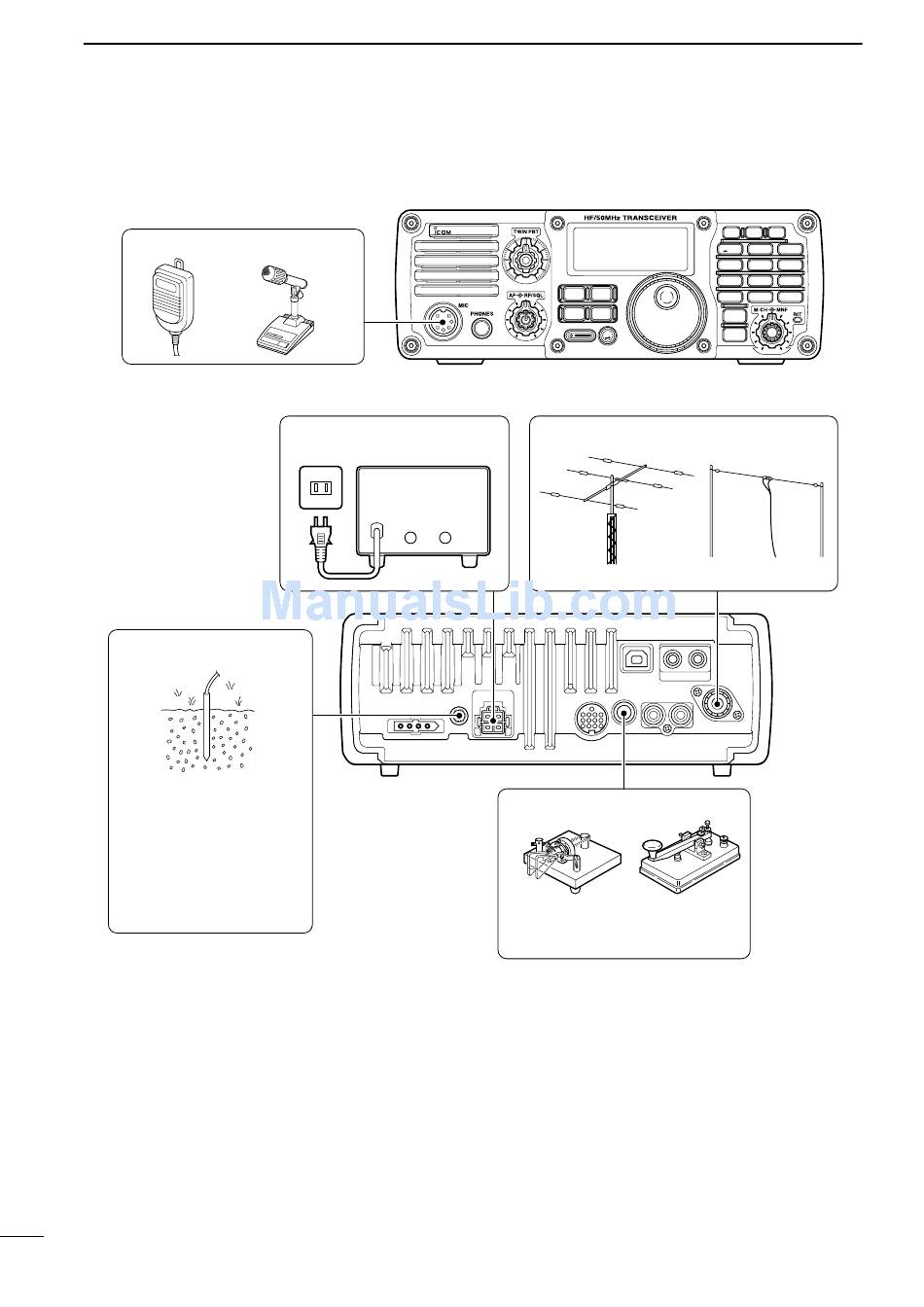

■ Required connections

• Front panel
MICROPHONES (p. 11)
HM-36
• Rear panel
GROUND (p. 12)
Use the heaviest gauge wire
or strap available and make
the connection as short and
straight as possible.
Grounding prevents electrical
shocks, TVI and other prob-
lems.
13
i7200
SM-20
DC POWER SUPPLY
(p.15)
AC outlet A DC power supply
13.8 V; at least 22 A
Red Black
+ _
MODE TS
TUNER FILTER
SPCH
HF/50 MHz ANTENNA
CW KEY
A straight key can be used when the
internal electronic keyer is turned
OFF in initial set mode. (p. 80)
ANF
NB NR
METER
V/M 1 A/B 2 3
SPLIT
=
1.8 3.5 7
4 5 6
MW M-CL AGC
10 14 18
7
8 9
COMP SCAN VOX
28
21 24
.
0
MNF F-INP ENT
RIT
GENE 50 BAND
P.AMP
ATT
M-CH/RIT
SET
